# Give an example problem of converting NFA to DFA.

## Problem

Consider a Non-deterministic finite automata (NFA) and convert that NFA into equivalent Deterministic Finite Automata (DFA).

## Solution

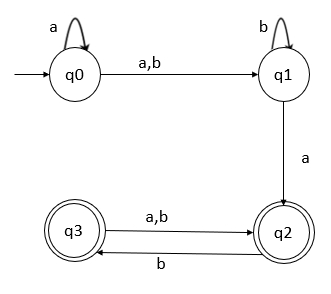

Let’s construct NFA transition table for the given diagram −

States\inputs | a | b |
---|---|---|

->q0 | {q0,q1} | q0 |

q1 | q2 | q1 |

q2 | q3 | q3 |

q3 | - | q2 |

DFA cannot have multiple states. So, consider {q0,q1} as a single state while constructing DFA.

Let’s convert the above table into equivalent DFA

States\inputs | a | b |
---|---|---|

->q1 | [q0,q1] | q0 |

[q0,q1] | [q0q1q2] | [q0q1] |

*[q0q1q2] | [q0q1q2q3] | [q0q1q3] |

*[q0q1q2q3] | [q0q1q2q3] | [q0q1q2q3] |

*[q0q1q3] | [q0q1q2] | [q0q1q2] |

In DFA the final states are q2 and q3, wherever q2 and q3 are present that state becomes a final state.

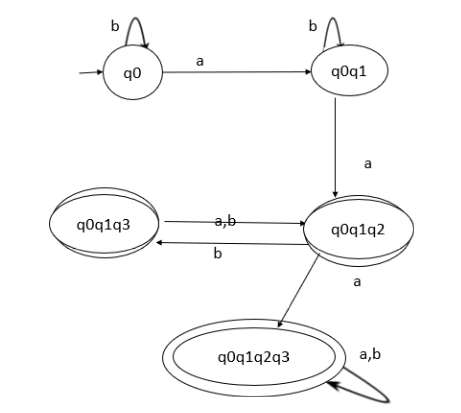

Now the **transition diagram for DFA** is as follows −
