JavaFX Effects - Lighting(Distant Source)


Advertisements

On applying this effect to a node, a light is simulated on it, as if it is being generated by a distant light source.

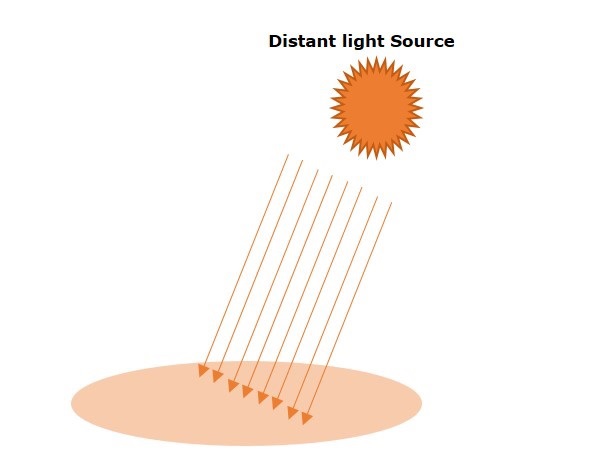

Distant Light Source − A source which is at a far distance from the node. In here, the light is attenuated in one direction from the source.

Distant Light Source

The class named Light.Distant of the package javafx.scene.effect represents the distant light source. This class contains two properties, which include −

  • azimuth − This property is of the type double and it represents the azimuth of the light.

  • elevation − This property is of the type double and it represents the elevation of the light.

Example

The following program is an example demonstrating the lighting effect of JavaFX. In this, the source of light is a distant source. Here, we are drawing a text “Welcome to Tutorialspoint” and a circle in a scene.

To these, we are applying the lighting effect, where the light is being emitted by a distant source.

Save this code in a file with the name DistantLightingExample.java.

import javafx.application.Application;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.effect.Light;
import javafx.scene.effect.Lighting;
import javafx.scene.paint.Color;
import javafx.scene.shape.Circle;
import javafx.stage.Stage;
import javafx.scene.text.Font;
import javafx.scene.text.FontWeight;
import javafx.scene.text.Text;

public class DistantLightingExample extends Application {
   @Override
   public void start(Stage stage) {
      //Creating a Text object
      Text text = new Text();

      //Setting font to the text
      text.setFont(Font.font(null, FontWeight.BOLD, 40));

      //setting the position of the text
      text.setX(60);
      text.setY(50);

      //Setting the text to be embedded.
      text.setText("Welcome to Tutorialspoint");

      //Setting the color of the text
      text.setFill(Color.RED);

      //Drawing a Circle
      Circle circle = new Circle();

      //Setting the center of the circle
      circle.setCenterX(300.0f);
      circle.setCenterY(160.0f);

      //Setting the radius of the circle
      circle.setRadius(100.0f);

      //setting the fill color of the circle
      circle.setFill(Color.CORNFLOWERBLUE);

      //Instantiating the Light.Distant class
      Light.Distant light = new Light.Distant();

      //Setting the properties of the light source
      light.setAzimuth(45.0);
      light.setElevation(30.0);

      //Instantiating the Lighting class
      Lighting lighting = new Lighting();

      //Setting the source of the light
      lighting.setLight(light);

      //Applying the lighting effect to the text
      text.setEffect(lighting);

      //Applying the lighting effect to the circle
      circle.setEffect(lighting);

      //Creating a Group object
      Group root = new Group(text,circle);

      //Creating a scene object
      Scene scene = new Scene(root, 600, 300);

      //Setting title to the Stage
      stage.setTitle("Distant light effect example");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

Compile and execute the saved java file from the command prompt using the following commands.

javac DistantLightingExample.java
java DistantLightingExample

On executing, the above program generates a JavaFX window as shown below.

Distant Light Source Example.jpg
