SAP IDM - Quick Guide

SAP IDM - Introduction

In large enterprises, main challenge is to organize and maintain identity data and privilege securely. Enterprise data is stored in different applications and collected from multiple source so it includes major risk to manage the data confidentiality. To distribute the data security, there is need to manage and maintain identity data and privileges up to date. There are various Identity and access management modules in market which helps Data owner in managing identity information accurately and up to date.

Major ERP software providers provide inbuild capability to manage identity with other modules. These identity management tools are embedded in ERP/CRM software and no need to install or configure explicitly.

SAP Identity Management is similar tool provided by SAP which help companies managing their user accounts in complex environment for both SAP and non-SAP systems. With use of SAP Identity management tool, companies can manage and provide access to different heterogenous applications without much manual work and that too securely.

There are various reasons why an Identity and Access Management soln is required −

As business processes running on on-premise and cloud both there is need to manage user access management seamlessly.
Need to assign application and information access based on user roles and irrespective of technical hierarchies in directory.
To provide self-service user and password management system and to avoid manual password reset for critical applications.
To pull the reports based on current and previous access.
Reduce the operational cost to perform user provisioning in complex landscape.
Ease to manage multiple source of identities.
Availability of audit trails and log system to track identity changes.
To meet company specific requirements for user access management solution.
To prevent the unauthorized access to company resources- Enterprise applications, Database, Webapps, Active Directory, etc. in multi- enterprise environments.

Key Benefits

Following are the key benefits of using SAP Identity Management −

To ensure that user permissions are assigned to required systems at right time and prevent unauthorize access.
Consistency in managing user roles and permission across multiple complex enterprise landscape.
Secure execution of business approval workflows and processes.
Ease of managing audit trail and log systems for tracking.

SAP IDM - Architecture

SAP identity management system is used to maintain identity data across different ECC applications. You can import data from different SAP applications to IDM based on available authorizations. From backend application, after importing the authorizations- privileges are added to system and this is then sync to backend applications.

User interfaces are used to perform the different self-management identity tasks in identity store and changes are replicated back to backend applications.

Most of SAP Identity management components run on NetWeaver application and Java server. Few of important component of SAP IdM includes −

SAP Identity Store
User interface for users and Administrators
IdM Database
IdM Developer Studio
Developer Studio Service
Runtime component

Identity store provides a consistent view of identity data from multiple sources and helps in managing business processes, logging and auditing, password management and reporting feature for access management. Identity center collects the data from different application repositories, transform to required formats and replicate it back to source repositories.

Few components of IDM run on SAP NetWeaver AS for Java and this includes Identity Management User Interface for users and administrators however few of other components are installed separately and stand-alone components. Key components of SAP IDM architecture mentioned below −

Administrators can install SAP Identity Management using Software Provisioning Manager 1.0 installation tool. Provisioning Manager 1.0v installs all SAP Identity Management components except IDM Developer Studio client, Logon Help and SAP IDM Password management utility. Mentioned components to be installed manually using external client tools.

SAP IDM Dispatcher Utility

This is used to create new dispatchers in IDM system. With use of user interface component- you can also stop or start the dispatchers. This can be done via user interface component or using command line option.

IDM Runtime Engine

This component of IDM is used for synchronization and provision tasks and requires SAP Java Virtual Machine for execution.

SAP IDM - Installation

You can install SAP IdM system in distributed environment where each process runs on separate system. You can use any of OS to perform the installation and select any of database like MS SQL, Oracle, DB2, etc.

You can use Software Provisioning Manager (SWPM) tool for performing the installation of IdM. By following the below steps, you can install SAP IdM −

Installing IdM core components

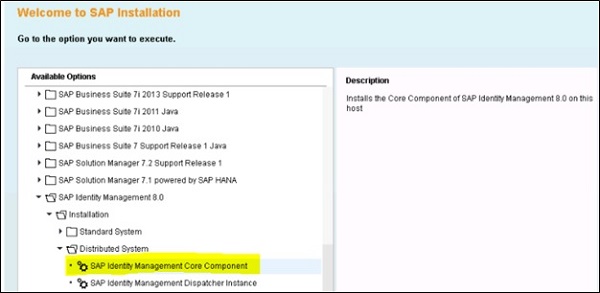

To install IdM core component, login using an OD administrator account and stat Software Provisioning manager tool (sapinst.exe) and select SAP Identity Management 8.0 $\rightarrow$ Installation $\rightarrow$ Distributed System $\rightarrow$ SAP Identity Management Core Component as shown below

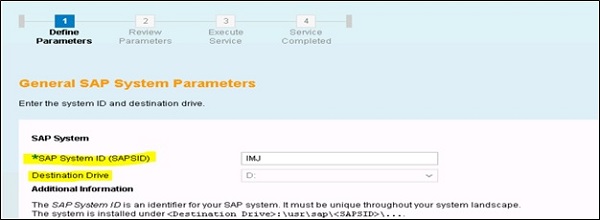

Run the installation in Typical mode. You need to pass you SAP SID and destination drive after staring core component installation.

Follow the installation steps and pass the path of SAP archives, SAP host agent, etc. Next you will be prompted to select the database system −

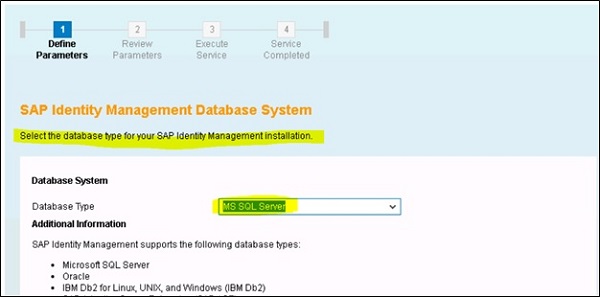

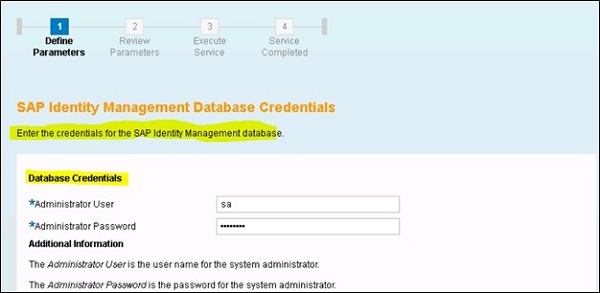

Provide the host name where database is running, port# and credentials for IdM database −

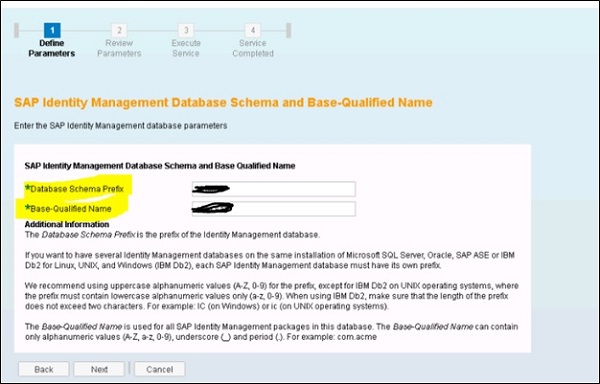

In next window, you have to provide the Database schema prefix and base qualified name to be used for IdM packages −

Pass the other parameters in subsequent steps and follow the instruction steps and click on Next button to run the installation. When the installation of IdM core component is completed, below message will appear −

Installing SAP IdM runtime and other developer components

Logon to other host where you want to install IdM runtime and other deployable components, and open Software Provisioning Manager and select SAP Identity Management 8.0 $\rightarrow$ Installation $\rightarrow$ Distributed System $\rightarrow$ SAP Identity Management Dispatcher Instance.

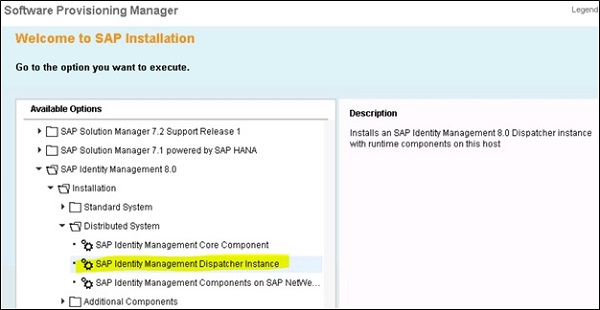

SAP Identity Management Dispatcher Instance

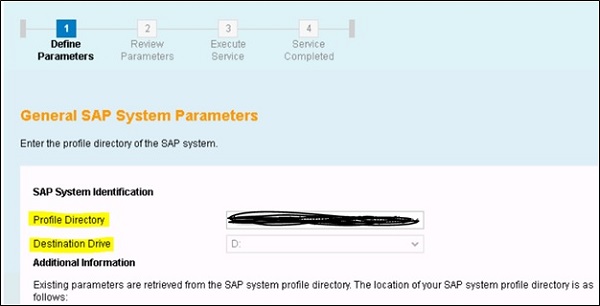

Start the installation process in a Typical mode and provide the profile ddir patch of SAP IdM system as shown below −

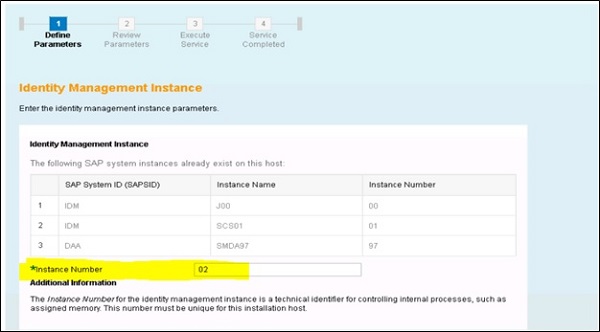

Follow the steps as per installation steps and pass the instance number assigned to SAP IdM dispatcher or you can also use the default value.

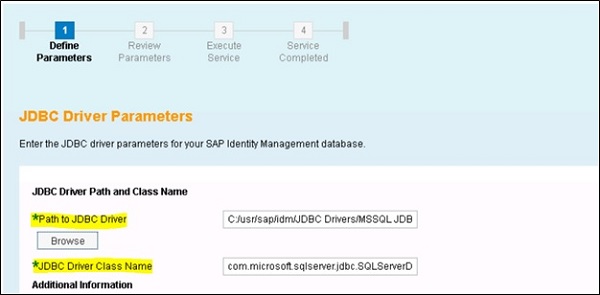

In the next step, provide the driver path and JDBC driver class name. Review the parameters and proceed with completing the installation steps.

Installing SAP IdM deployable components

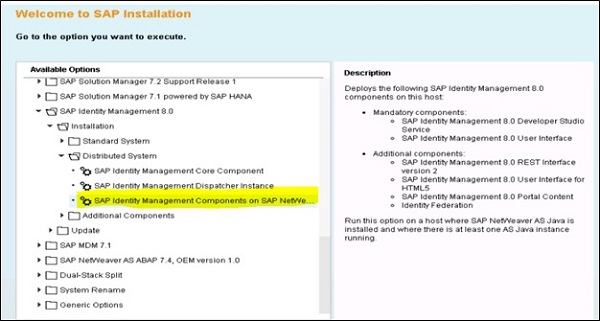

Open Software Provisioning Manager. Select SAP Identity Management 8.0 $\rightarrow$ Installation $\rightarrow$ Distributed System $\rightarrow$ SAP Identity Management Components on SAP NetWeaver AS Java.

This will install the below components −

Mandatory Components

SAP IdM Developer Studio Service
SAP IdM User interface

Additional Components

SAP IdM REST interface
SAP IdM Portal Content
Identity Federation

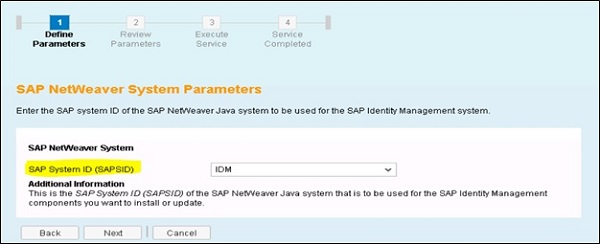

Follow the steps in previous installation and provide SAP SID of the NetWeaver Java system where these components to be used −

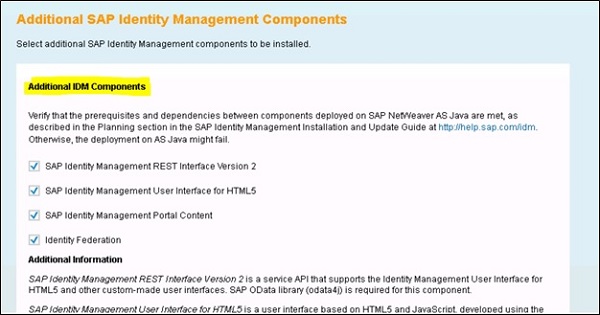

In the next step, you need to select the additional IdM deployable components you want to deploy −

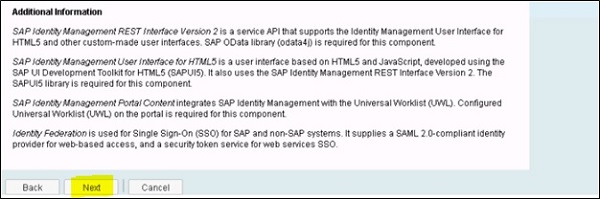

After selecting the additional components, click on Next button and installation will complete for SAP IdM deployable components.

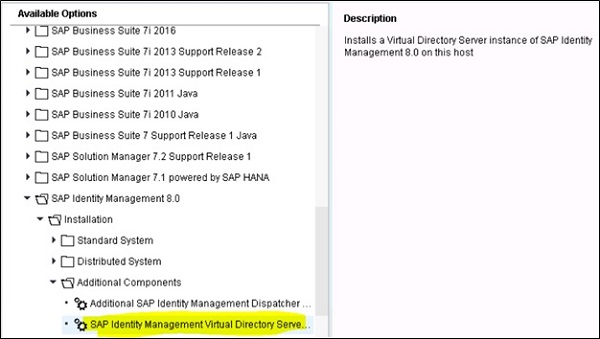

Installing Active Directory Server Virtually

Open Software Provisioning Manager and select SAP Identity Management 8.0 $\rightarrow$ Installation $\rightarrow$ Additional Components $\rightarrow$ SAP Identity Management Virtual Directory Server. This will install Virtual directory server instance 8.0 on selected host.

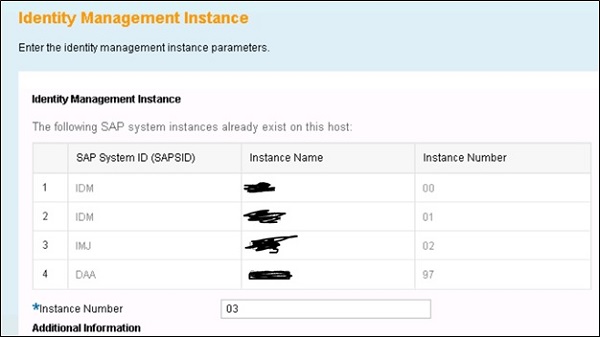

Follow the installation steps and provide instance number to assign to Virtual Directory server or you can use default provided.

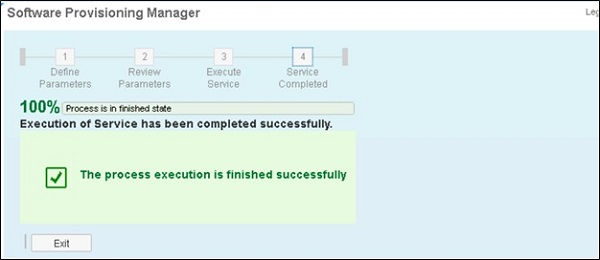

Next step is to review the parameters and complete the installation process.

SAP IDM - Developer Studio

SAP IDM Developer Studio is an Eclipsed based plug in and used to configure Identity management solution. This is a client-based tool and has to be installed on each developer or administrator system. To enable Identity Management developer studio, From Eclipse User interface, navigate to Help -> Install New software.

Next is to provide the repository site where the plugin is available from. Click on “Add…” as shown in below screenshot −

This will open Add Repository dialog box, pass the name like- “SAP Identity Management Developer Studio: and under location field, pass URL of Identity Management Developer Studio plugin. Provide this URL https://tools.hana.ondemand.com/oxygen for Eclipse Oxygen (4.7) -> OK.

When you expand SAP Identity Management Tools, Select SAP Identity Management Developer Studio checkbox and click on Next.

Configuring SAP IdM Developer Studio

In SAP IDM Developer studio, you can add connection to IDM database. You need to pass the below details −

Application Server name
Port
Data Source

Under Preferences -> Connections -> “ click on + sign “.

Provide the required information and click on OK to add the Database. Once you add the database, you can expand and see the tree view.

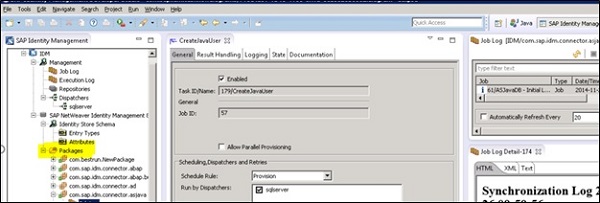

SAP IDM - Setting up the Framework

In SAP Identity Management, you can use set of templates to connect to SAP systems and setting up the jobs, processes for different tasks. A Package in SAP IDM is smallest unit of code that can be a connector type or set of utilities used by other packages. Administrators can gran permissions to user to transport each package separately and then work on configuration to customize them. IDM provides configuration packages as default component to provide starting point customization.

Each package is identified with global unique name which means you cannot have same package name in any of identity store.

You can usually find below package types −

Engine package

This package provides the core flows which are responsible for triggering the necessary processes and other common scripts used in other packages.

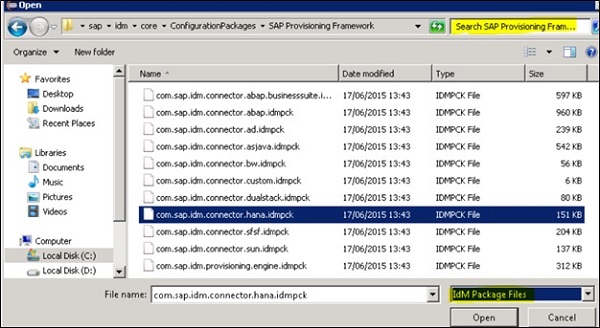

Connector package

This package provides the connector, which is used for provisioning the specific systems like SAP ABAP, etc.

Forms package

This package stores definition of all user interface tasks for different transaction types

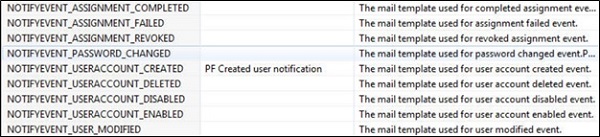

This package contains the notification task and templates which are used to send notifications for provisioning, approval tasks and business work flows.

Custom package

This package is used to customize the provisioning framework without altering the other stored packages. This package contains the customize scripts from other customers and few of default custom scripts which can be used to customize other packages.

User Authorization to access packages

To access the content of package, user must have required authorization on that package. Below authorization exists for packages −

View
Developer
Layout Developer
Import
Owner

SAP IDM - Repository Types

To connect your SAP and non-SAP system to SAP Identity Management, repositories has to be created based on different types. Repository type tells the common constants for all the repository type available and assist in repository configuration process.

Below are the advantages of using Repository type −

For all the repository type, you can change repository constant and this will apply to already existing and new repositories.
You can also add new constant for all the repositories of any types and this includes existing and new repositories.

You usually require changes to the Repository type of given repository in following scenarios −

While upgrade SAP Identity Management from v7.2 to 8.0 and to use provisioning framework in SAP IDM 8.0. This will allow you to configure v7.2 repositories to change type of repositories delivered in new framework.
There is custom repository type with the custom features and you want to change any existing repository type to custom.

To change the Repository type, you have to log on to SAP Identity Management Administration UI- “http://<host>:<port>/idm/admin”.

Next is to choose the System Configuration tab -> click on Repositories from left menu.

You can select a repository which is disabled and click on “Change Repository Type”.

Next is to Select the Repository type -> Provide description (optional field) -> OK. Next is to validate the Repository constants and fix the values if required as below.

You can also view the Repository changes history by navigating to “Configuration History Repository Operations.

You can also view the Repository constants changes due to change in the Repository type, Navigate to Configuration History $\rightarrow$ Repository Constants

SAP IDM - Using Identity Stores

In SAP IDM, information stored in Identity stores are used in provisioning framework and this provides a centralize repository for managing identity related information like Dept, Emp name, Groups, BU, etc. Identity store also provides extensive audit trail and tracking functionality to monitor attributes which can be changed.

Usually an Identity store is connected to identity management user interface in SAP NetWeaver AS for Java and each Java installation can only connect to one identity store. There are number of system attributes added in the system when an identity store is created. There is an identifier- MSKEYVALUE which stores unique identifier in Identity store across all entry types.

In Identity Management, you use entry type to define an entry property such as allowed and mandatory attributes.

Note − MSKEY number is unique across in an identity center across all identity stores.

Managing Entry types in Identity store

Usually it is not recommended to delete entry types in an identity store as they are required for audit trail and tracking purpose. You can mark it as inactive or use a state field to mark the status of that entry type.

Ex − An employee can join back a company later and in that can it simplifies the process if the same entry type can be used for that employee.

SAP IDM - Identity Center Properties

Identity Center is the main component of SAP IDM which provides key functionality for identity management system. Identity center uses identity store to manage all the key functions. SAP Identity center is usually installed with a management console, and other runtime components. For using logon service via Active Directory server for self-service password management, SAP IDM should be configured with Identity center.

Following are the key functions performed using Identity Center −

Password reset
Business and workflows
Logging
Audit trail
Reporting
Provisioning

SAP Identity Center contains the following components −

Management Console

Management console is a plug in in MMC and is used for setting up the starting configuration for different tasks and jobs in provisioning flows.

Database Management

SAP Identity center uses the database to maintain all the information about provisioning tasks and business workflows, logging information and audit trails, and identity store, etc.

You can use following DB’s in identity Center −

Oracle Version 10/11
DB2
MS SQL Server 2005/2008

Copying Identity Center Configuration

To copy SAP Identity center configuration and data from one database to other, you can use system copy. For this task, you can find job in SAP Community network. Download the Zip file from SCN and extracts the file and below steps to be performed −

Creating Dispatcher
Import the job folder
Configuring the imported repository

To pass dispatcher script, you have to navigate to Options Tab -> Create Dispatcher Scripts

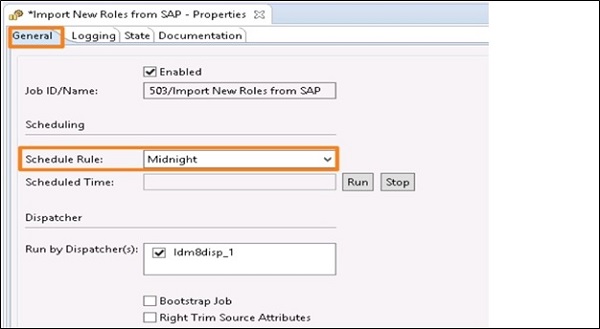

After script is created, you need to pass the details for run jobs and runtime engine. To define this, navigate to Policy tab -> select Run Jobs check box.

You can check the Dispatcher status under Options tab -> To update the status click on Refresh button. The status is showing under Service state field.

You can also select dispatcher service to auto start. For this, select the checkbox Automatic start field to enable the same.

You can also manage Dispatcher job to stop/start manually. For this, you can use Start and Stop option below Service State −

SAP IDM - Maintaining Packages

As mentioned earlier in this tutorial, Package is smallest unit of configuration which can be a connector or collection of utilities used by other packages in Repository. Few default packages are delivered as a part of Identity management core component and imported to database to provide the starting point for solution.

Package has set of features which are used to maintain them in the Identity management repositories. Following are the key features −

Package Qualified name
User Editing
Authorization
Version control
Objects
Transporting packages

Package Qualified Name

Each package in SAP Identity system has qualified name which contains base name which is provided during installation and package name which is passed during package creation. Base name passed during installation usually contains alphanumeric, numbers, underscore and dot. Ex − XYZ.com. Package name passed during package creation is globally unique i.e., you cannot have same package name in different identity stores in SAP IDM.

User Editing

To make changes to a package, you must check out and once changes are done, you should check in to make updated configuration available to other packages. When a package is checked out, no other user can make the configuration modification to that package.

Authorization

To access the package content, user should have permissions on that package. Users can have different level of authorization on packages in identity store. Below are common authorization exists on the package −

Owner
View
Developer
Import
Layout Developer

Version Control

Using version control of package, you can restore the previous version of the package. Package usually has two version numbers, Major version and Minor version.

Major Version − Whenever you make changes to a package and make it public, major version is incremented.

Minor Version − When you check in a package every time, minor version is incremented.

Objects

You can define the objects used in package as public or private. A public object can be called by other packages.

Transporting Packages

Each package in an identity store is transported separately.

Note − To perform provisioning framework in SAP IDM Developer Studio, you must import an engine package, a custom package and connector package.

SAP IDM - Using Processes

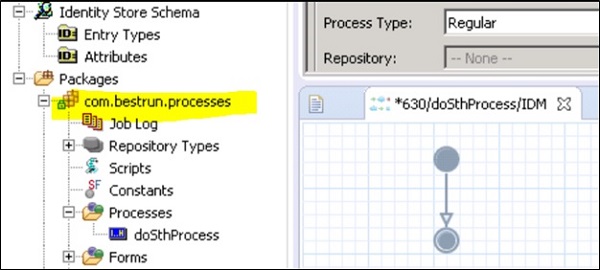

In SAP Identity management, you can create new processes and use developer studio to drag processes in workflow. You can disable/enable packages by navigating to Package properties.

Navigate to General tab of process properties to enable/disable the Process. Under General tab, you have the following options −

Field
Description
Enabled
Process ID/Name

Process ID shows the number that is used to identify the process in IdM database.

Using Process Properties

A process in an Identity store defines the set of operations that are executed in a particular sequence. You see the below options for Process property −

General

Using General tab, you can enable/disable the process or define the process type. You can also define a repository for the process.

Result Handling

This tab can be used to perform result handling for the processes.

Documentation

In this field, you can provide the documentation of a process.

SAP IDM - Identity Store Forms

Identity store forms are used to maintain entries in identity store such as privilege, user, roles, etc. A set of forms are default delivered as package in provisioning framework. An identity form usually contains below fields −

Attribute definitions
Access control
UI configuration details

Usually forms are defined as public objects inside a package however you can remove them from public and read them. There are other guided activities apart from default form as given below −

View Assignment Request Forms

These forms can be used to check the status of assignment requests and can be used to authorize user to restart any failed activity.

Assignment Request Form

This is used to provide one or more assignment to a user and usually use for providing context-based roles.

Password Reset

This is used to provide user with guided activity to reset the passwords.

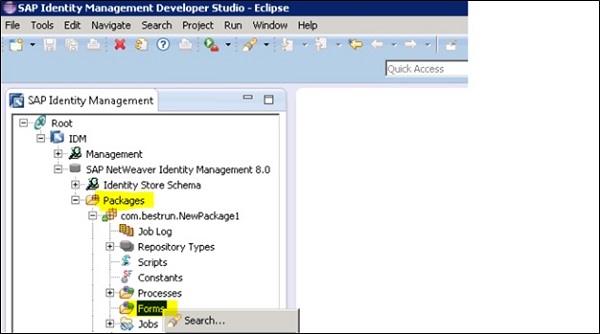

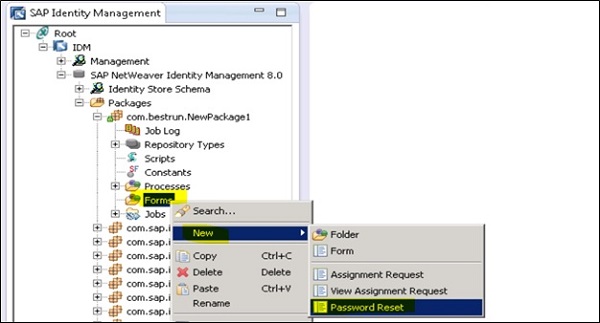

To create a form, navigate to Forms folder in the package using Identity Management developer studio $\rightarrow$ New.

Next is to take action as per below form options −

If you want to create a Form folder, Select Folder option.

Or to create a form $\rightarrow$ Select Form.

Or to create a guided task form $\rightarrow$ Select Assignment Request/ View Assignment Request/Password Reset form.

You can also configure the form properties, following tabs are available and after making changes, navigate to File -> Save.

General
Result Handling
Attributes
Access Control
Presentation
Documentation

General

This tab is used to perform general properties for a form. Below are the options under General tab −

Field	Description
Enabled	To enable/disable form

FormID/Name

This shows a number that identifies the form within the Identity Management database.

Form Type

This is used to define the form type. The following values are available −

Regular
Access Control Form
Display Form
Search Form

Repository

This option can be used to link the repository to the form. While running the form, selected repository is used.

Result Handling

This is used to configure the result handling part of the form.

Attributes

This is used to define the form attributes.

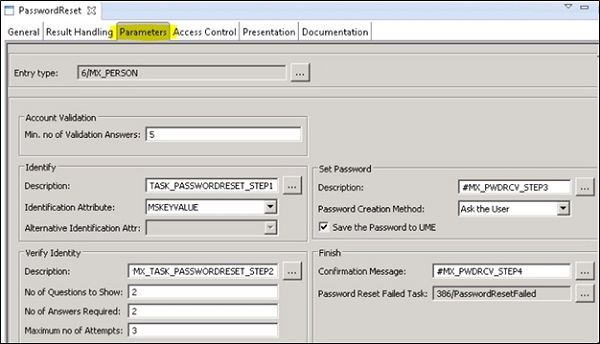

Parameters

Parameter is used to configure the guided activity- assignment request/view assignment request/ password reset.

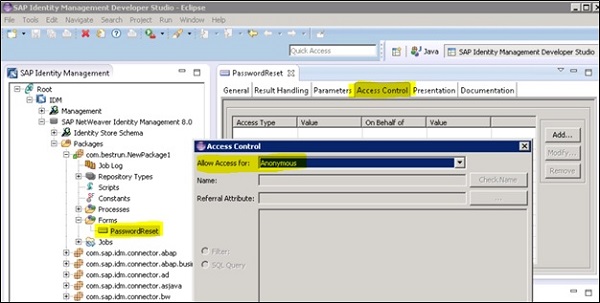

Access Control

Using this tab, you can define the access part for the form.

Presentation

This is used to configure form presentation.

Documentation

You can provide form description in this tab.

SAP IDM - Maintaining Jobs

In SAP IDM, jobs are stored inside Job folder under package and are executed inside an identity store. Following actions can be performed −

Creating a new job
Enable/Disable an existing job
Executing a job

To create a new Job, select Job Folder of the package and select New $\rightarrow$ Job. You can pass the Job name, connect to a dispatcher and define the Job properties.

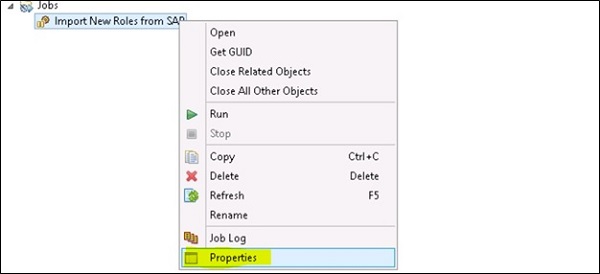

You can also define the Job properties. To define the Job properties -> Select the job in the tree view and click on Properties option from context menu.

Below options are available −

General
Logging
State
Documentation

To save the changes to a Job, go to File $\rightarrow$ Save.

Below options are available to define Job Properties under General tab −

Enabled − This check box can be used to enable/disable the job.

Job ID/Name − This shows the unique ID and job name.

Schedule Rule − The schedule rule is used to define job execution frequency.

Schedule Time − The schedule time displays the time when the job is scheduled to run.

You can also select “Run to schedule the job” to be run immediately. The scheduled time is set to the current time.

To stop a running job, you can click on “Stop” button.

Run by Dispatcher(s) − You can choose the dispatcher(s) that are allowed to run this job.

SAP IDM - Self Service Password Reset

In SAP IdM 8.0 or upper version, you can configure Logon help service or self-service password reset for end users. With login help service, end users can change their password. To configure Self-service password reset, below prechecks should be met −

You should have minimum one dispatcher running in landscape.
There should be one user account exists apart from administrator.
There should be an Identity Management User Interface configured.
There should be UME role with action “idm_anonymous” assigned Anonymous Users groups in UME.

Next step is to create password reset form for end users and to add to identity store configuration.

Follow the steps to create password reset form −

Go to SAP IdM developer studio $\rightarrow$ Navigate to package where you want to create the form for self-service password reset -> Form.

Go to Context menu $\rightarrow$ New $\rightarrow$ Password reset. You can rename the form to PasswordReset form.

Next is to assign Anonymous user group to allows access. For this go to “Access Control” tab of the newly created form $\rightarrow$ Select Anonymous in Allow access drop down $\rightarrow$ OK.

To save the changes, go to File $\rightarrow$ Save.

Defining Password Reset Parameters

To use self-service password reset, you need to define password reset parameters like number of questions should prompt, minimum number of correct answers for validation, etc.

To define the parameters, go to Context menu of the Password reset form $\rightarrow$ Properties. Navigate to Parameters tab and configure the parameters as required.

SAP IDM - Setting Email Notifications

You can use notification package available in SAP provisioning framework to set up the email notification in SAP Identity Management 8.0. There is package available in Developer Studio “com.sap.idm.util.notification” that contains the notification package and the templates to enable the notification.

To configure email notification, you need to pass the value of “NOTIFYEVENT” package constant and make this point to notification template. You have below notification event types available −

NOTIFYEVENT_ASSIGNMENT_COMPLETED − To send notification related to assigning a privilege

NOTIFYEVENT_ASSIGNMENT_FAILED − To send notification related to failed assignment

NOTIFYEVENT_ASSIGNMENT_REVOKED − To send notification related to access removal

NOTIFYEVENT_PASSWORD_CHANGED − To send notification related to password change

NOTIFYEVENT_USER_MODIFIED − To send notification related to modifying user account

NOTIFYEVENT_USERACCOUNT_CREATED − To send notification related to user account

NOTIFYEVENT_USERACCOUNT_DELETED − To send notification regarding user deletion

NOTIFYEVENT_USERACCOUNT_DISABLED − To send notification related to user account disablement

NOTIFYEVENT_USERACCOUNT_ENABLED − To enable the user notification

To use this notification events, you need to check out a package in IdM Developer Studio and create a process.

After configuring the notification event types, you need to add the mail template names in the Notification Package constants.

SAP IDM - Connecting SAP ABAP Systems

You can configure your SAP Identity management system to connect to SAP ABAP system and provision ABAP users. In SAP IdM 8.0 or higher Provisioning framework, you have connector delivered as separate package with name “com.sap.idm.connector.abap”. This connector can be used to communicate SAP Identity management system with SAP ABAP system for user provisioning.

Creating a job for update

In IdM developer studio tree view, you have to select connector package for which you want to create job. Ex: For ABAP connector package “com.sap.idm.connector.abap”.

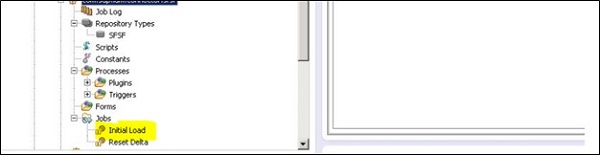

Next is to go to Jobs folder, copy the initial job load and rename the Job for ABAP update in required update, “ABAP- Update”.

Keep the below pass active and disable the other passes −

ReadABAPRoles
ReadABAPProfiles
ReadABAPCompanyAddress
ReadJavaRoles
WriteABAPRolePrivileges − only if corresponding Read pass is active
WriteABAPProfilePrivileges − only if corresponding Read pass is active
WriteABAPCompanyAddress − only if ReadJavaRoles pass is active
WriteJavaRolePrivileges − only if corresponding ReadJavaRoles pass is active

There are other packages in SAP IdM developer Studio which can be used to connect to other SAP systems. You have to search for SAP Provisioning Framework packages, choose IdM files and select the correct file.

For example, to connect to SAP HANA system, you can select the HANA connector package file “com.sap.idm.connector.hana.idmpck”.

Select the required package, and the package will be imported to Identity Management Developer Studio.

SAP IDM - Connecting non-SAP Systems

To connect to non-SAP systems to SAP Identity Management, if default connector package is not available then you can build you own connector for these commonly used systems (JDBC, Web Services, flat files, Database, LDAP, etc.).

First step is to setup the Repository and initial load. For setting up the repository you can use Repository wizard.

Below table confirm the list of connectors Provided in SAP Identity Management −

SAP IDM - Identity Reporting using SAP BW

You can also use SAP Business Warehouse system fo reporting purpose. To use BW for reporting, you should setup the connectivity between SAP IDM and BW. Post that you need to transfer identity store data to BW. To connect SAP BW, you can use SAP package available in IdM developer Studio.

Below software components will be required while using SAP BW for reporting purpose −

Identity Center
Virtual Directory Server (VDS)
SAP NetWeaver BW
Web service on the BW system

To start with the data transfer, you need to create a job in the Identity Center that triggers a Web service call from the Virtual Directory Service to the Persistent Staging Area on the BW system.

You can have multiple call configured depends on the amount of data to be transferred. This is used for both, i.e., initial load of the data and to perform the subsequent delta loads.

SAP IDM - Integration using GRC 10.0

You can integrate SAP Identity management system with Access control GRC by enabling set of processes in Identity center. With use of SAP IdM system, you can perform Provisioning in multiple connected systems based on compliance rules defined in Access Control. Based on communication defined between Identity management and Access Control, you can trigger below calls for implementing role synchronization.

RFC Communication
Web Service Communication

To import GRC Provisioning framework to Identity Center, you can use the separate package “com.sap.idm.grc.grc10” in SAP Identity Management 8.0 version. This package provides the repository type, initial provisioning processes, jobs, and scripts to perform the initial load.

This package com.sap.idm.grc.grc10 provides the set of internal and public processes. Below shows the list of public processes −

Following screenshot shows the package structure for integrating GRC Access control to Identity Management −

SAP IDM - Migration to New Version

You can also upgrade SAP Identity Management 7.1/7.2 to version 8.0. If you are running with SAP IdM v7.1 then to upgrade to version 8.0, you need to first upgrade to SAP IdM v7.2. To migrate to SAP identity management 8.0, your current system should be running on v7.2 SP09 or v7.2 SP10.

SAP Identity Management v8.0 has some critical improvements from older versions −

Option to use IDM Developer Studio as Eclipse plug-in
Ease of integration with other SAP systems
Better security and access controls

Below checks should be performed before starting the upgrade −

All dispatchers should be stopped.
REST API and user interface should be stopped.
Backup of database and identity data should be taken.
To upgrade SAP IdM database, you should use mxmc_update script.

You can perform the installation of SAP Idm 8.0 version separately and post installation, you need to copy key.ini file from 7.2 system to mentioned path −

Use this location on DB node- /usr/sap/<SID>/SYS/global/security/data/Key/Keys.ini
Use this location on runtime environment- /usr/sap/<SAPSID>/IDM<Instance_Number>/Identity_Center/Key/Keys.ini
You should set Keys.ini file referred to this path- \\<host>\sapmnt\<SAPSID>\SYS\global\security\data\Key\Keys.ini, where <SAPSID> is the SAP system ID of SAP Identity Management system
Next is to perform the Import of identity store from SAP IdM v7.2
Next is to perform the Import of repositories from SAP IdM v7.2
Next is to perform the Import job folders from SAP IdM v7.2
Next is to perform the Import data from SAP IdM v7.2

SAP IDM - Job Responsibilities

Key responsibilities of SAP IdM Administrator are as follows −

With minimum 3-6 years of experience in SAP IdM
Experience in connecting IdM to SAP and non-SAP systems, AD system and Database
Ability to handle business role-based assignments
Setting and monitoring the IdM jobs
Good understanding and experience in SAP Security and authorizations
Experience in performing SAP IdM tasks- user management, business and process workflows, managing identity stores
Setting up the repositories for different SAP and non-SAP apps
Knowledge of SAP GRC v10 Access Control and segregation of duties based on roles including GRC rules
Good understanding on Information Security controls and knowledge of ISO27001 controls
