SAP Lumira - Prepare Phase

Once data set is acquired, it appears in Prepare tab. This data needs to be formatted before charting and visualizations. Different types of formatting can be done on acquired data set −

  • Data Cleansing
  • Create New Measures
  • Create Formula
  • Add New Dataset

Prepare tab has different panels that can be used to perform these functions.

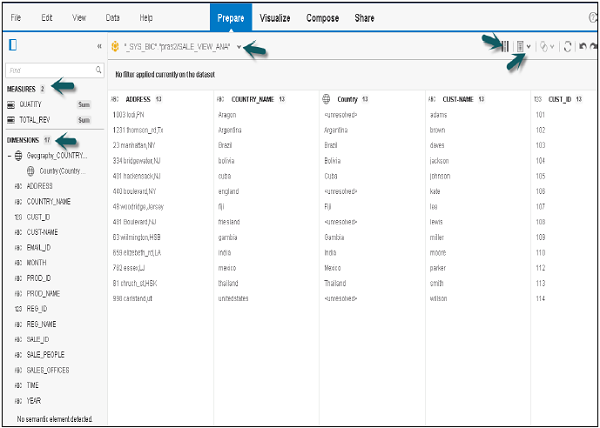

Prepare Tab Functions

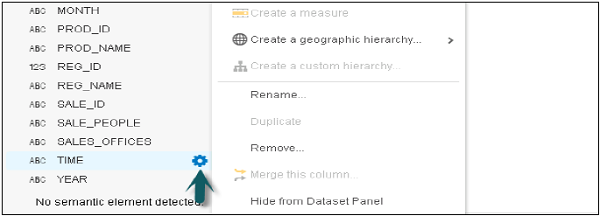

Dimension and Measure Panel

It contains a list of all the dimensions and measures acquired in the data set. The number in front of each object represents its data type.

You can use different tools in this panel to edit the data objects and to add hierarchies.

Dimension Measure Panel

Dataset Selector

You can select between multiple datasets or you can also acquire a new dataset using this option.

Dataset Selector

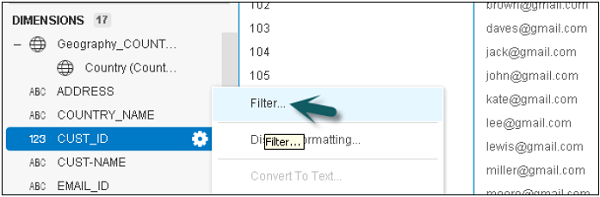

Filter Bar

This represents filter applied to any dimension in dataset. To add a filter click on the icon in front of dataset and click on Filter.

Filter Bar

How to add a new Calculated Measure

Go to the following screen, as shown here.

Add New Calculated Measure
  • Enter the new Measure name.
  • Enter the formula
  • Use function, if required, and click OK.
New Calculated Measure

New Calculated Measure will get added under measures tab in dimension and measure panel.
