Google AMP - Social Widgets


Advertisements

Amp provides support to show social widgets on the page without having to load any external library. In this chapter, we are going to discuss some popular social widgets listed here −

  • Google AMP − Facebook

  • Google AMP − Twitter

  • Google AMP − Pinterest

Google Amp - Facebook

Using amp-facebook component, we can connect to facebook and display post, video, comment in a amp page.

To make use of amp-facebook, we need to add the following script to the page −

<script async custom-element = "amp-facebook"
   src = "https://cdn.ampproject.org/v0/amp-facebook-0.1.js">
</script>

Amp-facebook tag format

<amp-facebook
   width = "552"
   height = "310"
   layout = "responsive"
   data-href = "https://www.facebook.com/tutorialspointindia/
   posts/1784197988358159">
</amp-facebook>

A working example for amp-facebook is shown here −

Example: Showing post from facebook

<!doctype html>
<html amp lang = "en">
   <head>
      <meta charset = "utf-8">
      <script async src = "https://cdn.ampproject.org/v0.js">
      </script>
      <title>Google AMP - Amp Facebook</title>
      <link rel = "canonical" href =
      "http://example.ampproject.org/article-metadata.html">
      <meta name = "viewport" content = "width = device-width,
      minimum-scale = 1,initial-scale = 1">

      <style amp-boilerplate>
         body{
            -webkit-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-moz-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-ms-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;animation:
            -amp-start 8s steps(1,end) 0s 1 normal both
         }
         @-webkit-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-moz-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-ms-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-o-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}
      </style>
      <noscript>
         <style amp-boilerplate>
            body{
               -webkit-animation:none;
               -moz-animation:none;
               -ms-animation:none;
               animation:none}
         </style>
      </noscript>
      <script async custom-element = "amp-facebook"
         src = "https://cdn.ampproject.org/v0/amp-facebook-0.1.js">
      </script>
   </head>
   <body>
      <h3>Google AMP - Amp Facebook</h3>
      <h2>Learn Python webscrapping</h2>
      <amp-facebook
         width = "552"
         height = "310"
         layout = "responsive"
         data-href = "https://www.facebook.com/tutorialspointindia/posts/1784197988358159">
      </amp-facebook>
   </body>
</html>

Output

Amp Visibility

Example: Showing video from facebook

<!doctype html>
<html amp lang = "en">
   <head>
      <meta charset = "utf-8">
      <script async src = "https://cdn.ampproject.org/v0.js">
      </script>
      <title>Google AMP - Amp Facebook>/title>
      <link rel = "canonical" href =
      "http://example.ampproject.org/article-metadata.html">
      <meta name = "viewport" content = "width = device-width,
      minimum-scale = 1,initial-scale = 1">

      <style amp-boilerplate>
         body{
            -webkit-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-moz-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-ms-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;animation:
            -amp-start 8s steps(1,end) 0s 1 normal both
         }
         @-webkit-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-moz-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-ms-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-o-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}
      </style>
      <noscript>
         <style amp-boilerplate>
            body{
               -webkit-animation:none;
               -moz-animation:none;
               -ms-animation:none;
               animation:none}
         </style>
      </noscript>
      <script async custom-element = "amp-facebook"
         src = "https://cdn.ampproject.org/v0/amp-facebook-0.1.js">
      </script>
   </head>
   <body>
      <h3<Google AMP - Amp Facebook Video</h3>
      <h2<Learn Python</h2>
      <amp-facebook
         width = "476"
         height = "316"
         layout = "responsive"
         data-embed-as = "video"
         data-href = "https://www.facebook.com/thetutorialkings/videos/701545820223256">
      </amp-facebook>
   </body>
</html>

Output

Amp Facebook Video

Example : Showing comments for a Facebook post

<!doctype html>
<html amp lang = "en">
   <head>
      <meta charset = "utf-8">
      <script async src = "https://cdn.ampproject.org/v0.js">
      </script>
      <title>Google AMP - Amp Facebook</title>
      <link rel = "canonical" href =
      "http://example.ampproject.org/article-metadata.html">
      <meta name = "viewport" content = "width = device-width,
      minimum-scale = 1,initial-scale = 1">

      <style amp-boilerplate>
         body{
            -webkit-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-moz-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-ms-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;animation:
            -amp-start 8s steps(1,end) 0s 1 normal both
         }
         @-webkit-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-moz-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-ms-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-o-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}
      </style>
      <noscript>
         <style amp-boilerplate>
            body{
               -webkit-animation:none;
               -moz-animation:none;
               -ms-animation:none;
               animation:none}
         </style>
      </noscript>
      <script async custom-element = "amp-facebook"
         src = "https://cdn.ampproject.org/v0/amp-facebook-0.1.js">
      </script>
   </head>
   <body>
      <h3>Google AMP - Amp Facebook comment for post</h3>
      <h2>Learn Microprocessor</h2>
      <amp-facebook
         width = "552"
         height = "500"
         layout = "responsive"
         data-embed-type = "comment"
         data-href = "https://www.facebook.com/tutorialspointindia/posts/1744145745696717?
         comment_id=1744179789026646&include_parent=false">
      </amp-facebook>
   </body>
</html>

Output

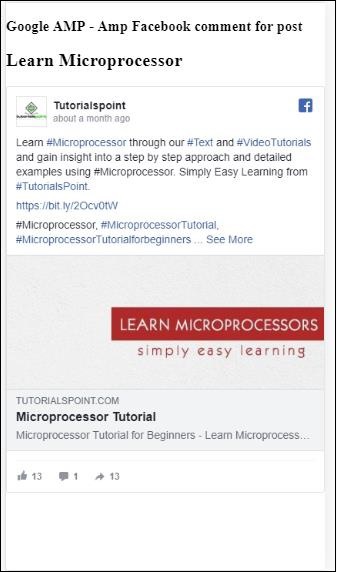

Amp Facebook Post

The attributes available on amp-facebook are

  • data-href (mandatory) − Here you need to specify the facebook url.

  • data-embed-as− The options available are post, video and comment. By default, it is post.

  • data-locale (mandatory) − It shows the display in locale language, you can change it as per your choice.

  • data-include-comment-parent− It takes values true or false. It is false by default. When you use data-embed-as option as comment, incase you need the parent reply to the comment, you can set this option as true.

So far we have seen how to add post/video and comment to the amp page. Incase we need to add the facebook page, amp has a component called amp-facebook-page.

Amp Facebook Page Plugin

Amp-facebook-page component gives us the facebook page details we want.To work with amp-facebook-page we need to add following script −

<script async custom-element = "amp-facebook-page" src = "
   https://cdn.ampproject.org/v0/amp-facebook-page-0.1.js">
</script>

A working example using amp-facebook-page is shown here −

Example

<!doctype html>
<html amp lang = "en">
   <head>
      <meta charset = "utf-8">
      <script async src = "https://cdn.ampproject.org/v0.js">
      </script>
      <title>Google AMP - Amp Facebook</title>
      <link rel = "canonical" href =
      "http://example.ampproject.org/article-metadata.html">
      <meta name = "viewport" content = "width = device-width,
      minimum-scale = 1,initial-scale = 1">

      <style amp-boilerplate>
         body{
            -webkit-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-moz-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-ms-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;animation:
            -amp-start 8s steps(1,end) 0s 1 normal both
         }
         @-webkit-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-moz-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-ms-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-o-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}
      </style>
      <noscript>
         <style amp-boilerplate>
            body{
               -webkit-animation:none;
               -moz-animation:none;
               -ms-animation:none;
               animation:none}
         </style>
      </noscript>
      <script async custom-element = "amp-facebook-page"
         src = "https://cdn.ampproject.org/v0/amp-facebook-page-0.1.js">
      </script>
   </head>
   <body>
      <h3>Google AMP - Amp Facebook Page</h3>
      <h3>Welcome to Tutorialspoint Facebook Page</h3>
      <amp-facebook-page
         width = "340"
         height = "130"
         layout = "responsive"
         data-href = "https://www.facebook.com/tutorialspointindia/">
      </amp-facebook-page>
   </body>
</html>

Output

Amp Facebook Page

Amp-facebook-like

To embed the facebook page like button plugin, we can use amp-facebook-like component. To work with amp-facebook-like, we need to add following script −

"<script async custom-element = "amp-facebook-like"
   src = "https://cdn.ampproject.org/v0/amp-facebook-like-0.1.js">
</script>

Example

<!doctype html>
<html amp lang = "en">
   <head>
      <meta charset = "utf-8">
      <script async src = "https://cdn.ampproject.org/v0.js">
      </script>
      <title>Google AMP - Amp Facebook</title>
      <link rel = "canonical"
      href = "http://example.ampproject.org/article-metadata.html">
      <meta name = "viewport" content = "width = device-width,
      minimum-scale = 1,initial-scale = 1">

      <style amp-boilerplate>
         body{
            -webkit-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-moz-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-ms-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;animation:
            -amp-start 8s steps(1,end) 0s 1 normal both
         }
         @-webkit-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-moz-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-ms-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-o-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}
      </style>
      <noscript>
         <style amp-boilerplate>
            body{
               -webkit-animation:none;
               -moz-animation:none;
               -ms-animation:none;
               animation:none}
         </style>
      </noscript>
      <script async custom-element = "amp-facebook-like"
         src = "https://cdn.ampproject.org/v0/amp-facebook-like-0.1.js">
      </script>
      <style amp-custom>
         amp-facebook-like {
            margin: 1rem
         }
      </style>
   </head>
   <body>
      <h3>Google AMP - Amp Facebook Likes</h3>
      <h3>Welcome to Tutorialspoint Facebook Likes</h3>
      <amp-facebook-like
         width = "110"
         height = "20"
         layout = "fixed"
         data-layout = "button_count"
         data-href = "https://www.facebook.com/tutorialspointindia">
      </amp-facebook-like>
   </body>
</html>

Output

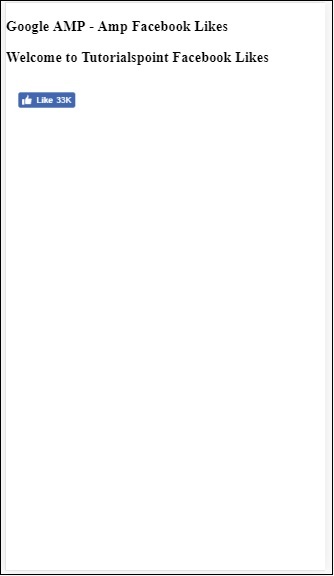

Amp Facebook Like

Amp facebook comments plugin

Amp-facebook-comments component will give the comments of the page given.

To work with amp-facebook-comments, we need to add following script −

<script async custom-element = "amp-facebook-comments"
   src = "https://cdn.ampproject.org/v0/amp-facebook-comments-0.1.js">
</script>

Example

<!doctype html>
<html amp lang = "en">
   <head>
      <meta charset = "utf-8">
      <script async src = "https://cdn.ampproject.org/v0.js">
      </script>
      <title>Google AMP - Amp Facebook</title>
      <link rel = "canonical" href =
      "http://example.ampproject.org/article-metadata.html">
      <meta name = "viewport" content = "width = device-width,
      minimum-scale = 1,initial-scale = 1">

      <style amp-boilerplate>
         body{
            -webkit-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-moz-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-ms-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;animation:
            -amp-start 8s steps(1,end) 0s 1 normal both
         }
         @-webkit-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-moz-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-ms-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-o-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}
      </style>
      <noscript>
         <style amp-boilerplate>
            body{
               -webkit-animation:none;
               -moz-animation:none;
               -ms-animation:none;
               animation:none}
         </style>
      </noscript>
      <script async custom-element = "amp-facebook-comments"
         src = "https://cdn.ampproject.org/v0/amp-facebook-comments-0.1.js">
      </script>
      <style amp-custom>
         amp-facebook-like {
            margin: 1rem
         }
      </style>
   </head>
   <body>
      <h3>Google AMP - Amp Facebook Likes</h3>
      <amp-facebook-comments
         width = 486
         height = 657
         layout = "responsive"
         data-numposts = "2"
         data-href = "https://developers.facebook.com/docs/plugins/comments">
      </amp-facebook-comments>
   </body>
</html>

Output

Amp Facebook Likes

Attribute data-numposts decides the number of comments to be displayed on the screen. If you want to get all comments, you can remove the attribute.

Google AMP - Pinterest

Amp provides a pinterest widget using amp-pinterest component. We can use this component to show pinterest widget, pinterest save button and pinterest follow button.

To start working with amp-pinterest, we need to add the following script −

<script async custom-element="amp-pinterest" src="https://cdn.ampproject.org/v0/amp-pinterest-0.1.js">
</script>

Amp-pinterest tag

<amp-pinterest width = 300 height = 450 data-do = "embedPin"
   data-url = "https://in.pinterest.com/pin/856739529089490354/">
</amp-pinterest>

Pinterest Widget

Example

To show pinterest widget, we need to use the attribute data-do="embedPin". A working example for the same is shown here −

<!doctype html>
<html amp lang = "en">
   <head>
      <meta charset = "utf-8">
      <script async src = "https://cdn.ampproject.org/v0.js">
      </script>
      <title>Google AMP - Amp Pinterest Widget</title>
      <link rel = "canonical" href =
      "http://example.ampproject.org/article-metadata.html">
      <meta name = "viewport" content = "width = device-width,
      minimum-scale = 1,initial-scale = 1">

      <style amp-boilerplate>
         body{
            -webkit-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-moz-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-ms-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;animation:
            -amp-start 8s steps(1,end) 0s 1 normal both}@-webkit-keyframes
            -amp-start 8s steps(1,end) 0s 1 normal both
         }
         @-webkit-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-moz-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-ms-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-o-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}
      </style>
      <noscript>
         <style amp-boilerplate>
            body{
            -webkit-animation:none;
            -moz-animation:none;
            -ms-animation:none;
            animation:none}
         </style>
      </noscript>
      <script async custom-element = "amp-pinterest"
         src = "https://cdn.ampproject.org/v0/amp-pinterest-0.1.js">
      </script>
      <style amp-custom>
         amp-facebook-like {
            margin: 1rem
         }
      </style>
   </head>
   <body>
      <h3>Google AMP - Amp Pinterest Widget</h3>
      <amp-pinterest
         width = 300
         height = 450
         data-do = "embedPin"
         data-url = "https://in.pinterest.com/pin/856739529089490354/">
      </amp-pinterest>
   </body>
</html>

Output

Amp Pinterest Widget

Pinterest Save Button

To show the save button for pinterest we need to use attribute data-do="buttonPin". A working example of pinterest save button is shown here −

Example

<!doctype html>
<html amp lang = "en">
   <head>
      <meta charset = "utf-8">
      <script async src = "https://cdn.ampproject.org/v0.js">
      </script>
      <title>Google AMP - Amp Pinterest Widget</title>
      <link rel = "canonical" href =
      "http://example.ampproject.org/article-metadata.html">
      <meta name = "viewport" content = "width = device-width,
      minimum-scale = 1,initial-scale = 1">

      <style amp-boilerplate>
         body{
            -webkit-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-moz-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-ms-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;animation:
            -amp-start 8s steps(1,end) 0s 1 normal both
         }
         @-webkit-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-moz-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-ms-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-o-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}
      </style>
      <noscript>
         <style amp-boilerplate>
            body{
               -webkit-animation:none;
               -moz-animation:none;
               -ms-animation:none;
               animation:none}
         </style>
      </noscript>
      <script async custom-element = "amp-pinterest"
         src = "https://cdn.ampproject.org/v0/amp-pinterest-0.1.js">
      </script>
      <style amp-custom>
         amp-facebook-like {
            margin: 1rem
         }
      </style>
   </head>
   <body>
      <h3>Google AMP - Amp Pinterest Save Button</h3>
      <h3>TutorialsPoint - ReactJS</h3>
      <amp-img
         src = "images/reactjs.png"
         width = "100"
         height = "100"
         alt = "blockchain image">
      </amp-img>
      <amp-pinterest
         height = "18"
         width = "56"
         data-do = "buttonPin"
         data-url = "https://www.tutorialspoint.com/"
         data-media = "https://www.tutorialspoint.com/images/tp-logo-diamond.png"
         data-description = "amp-pinterest in action">
      </amp-pinterest>
   </body>
</html>

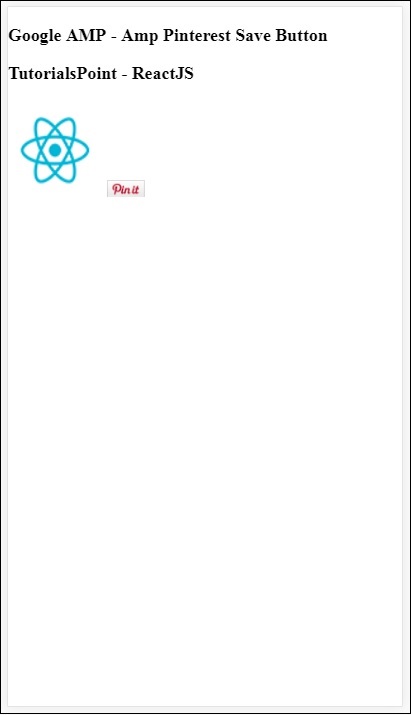

Output

Amp Pinterest Save Button

Pinterest Follow Button

To show save follow button for Pinterest, we need to use attribute data-do="buttonFollow". A working example of Pinterest save button is shown here −

Example

<!doctype html>
<html amp lang = "en">
   <head>
      <meta charset = "utf-8">
      <script async src = "https://cdn.ampproject.org/v0.js">
      </script>
      <title>Google AMP - Amp Pinterest Widget</title>
      <link rel = "canonical" href =
      "http://example.ampproject.org/article-metadata.html">
      <meta name = "viewport" content = "width = device-width,
      minimum-scale = 1,initial-scale = 1">

      <style amp-boilerplate>
         body{
            -webkit-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-moz-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-ms-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;animation:
            -amp-start 8s steps(1,end) 0s 1 normal both
         }
         @-webkit-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-moz-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-ms-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-o-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}
      </style>
       <noscript>
         <style amp-boilerplate>
            body{
               -webkit-animation:none;
               -moz-animation:none;
               -ms-animation:none;
               animation:none}
         </style>
      </noscript>
      <script async custom-element = "amp-pinterest"
         src = "https://cdn.ampproject.org/v0/amp-pinterest-0.1.js">
      </script>
      <style amp-custom>
         amp-facebook-like {
            margin: 1rem
         }
      </style>
   </head>
   <body>
      <h3>Google AMP - Amp Pinterest Follow Button</h3>
      <amp-pinterest
         height = 50
         width = 130
         data-do = "buttonFollow"
         data-href = "https://in.pinterest.com/wedgehairstyles/"
         data-label = "wedgehairstyles">
      </amp-pinterest>
   </body>
</html>

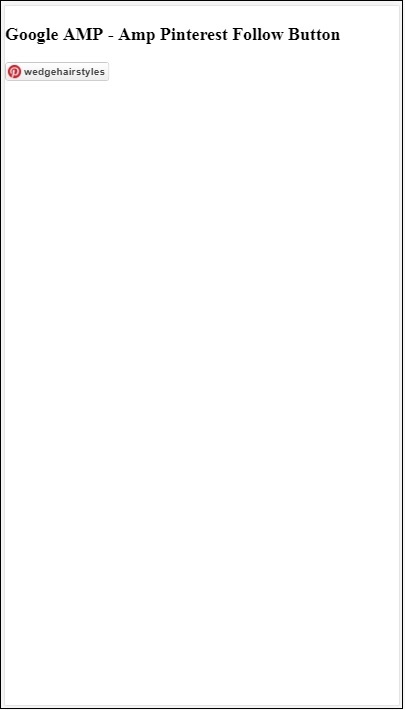

Output

Amp Pinterest Follow Button

Google Amp - Twitter

Amp has a component to show twitter feeds using amp-twitter.

To work with amp-twitter we need to add following script −


<script async custom-element = "amp-twitter"
src = "https://cdn.ampproject.org/v0/amp-twitter-0.1.js">
</script>

Amp-twitter tag


<amp-twitter width = "375" height = "472"
   layout = "responsive" data-tweetid = "885634330868850689">
</amp-twitter>

A working example showing tweets is shown here

Example


<!doctype html>
<html amp lang = "en">
   <head>
      <meta charset = "utf-8">
      <script async src = "https://cdn.ampproject.org/v0.js">
      </script>
      <title>Google AMP - Amp Twitter</title>
      <link rel = "canonical" href =
      "http://example.ampproject.org/article-metadata.html">
      <meta name = "viewport" content = "width = device-width,
      minimum-scale = 1,initial-scale = 1">

      <style amp-boilerplate>
         body{
            -webkit-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-moz-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-ms-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;animation:
            -amp-start 8s steps(1,end) 0s 1 normal both
         }
         @-webkit-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-moz-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-ms-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-o-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}
      </style>
      <noscript>
         <style amp-boilerplate>
            body{
               -webkit-animation:none;
               -moz-animation:none;
               -ms-animation:none;
               animation:none}
         </style>
      </noscript>
      <script async custom-element = "amp-twitter" src =
         "https://cdn.ampproject.org/v0/amp-twitter-0.1.js">
      </script>
      <style amp-custom>
         amp-facebook-like {
            margin: 1rem
         }
      </style>
   </head>
   <body>
      <h3>Google AMP - Amp Twitter</h3>
      <amp-twitter
         width = "375"
         height = "472"
         layout = "responsive"
         data-tweetid = "885634330868850689">
      </amp-twitter>
   </body>
</html>

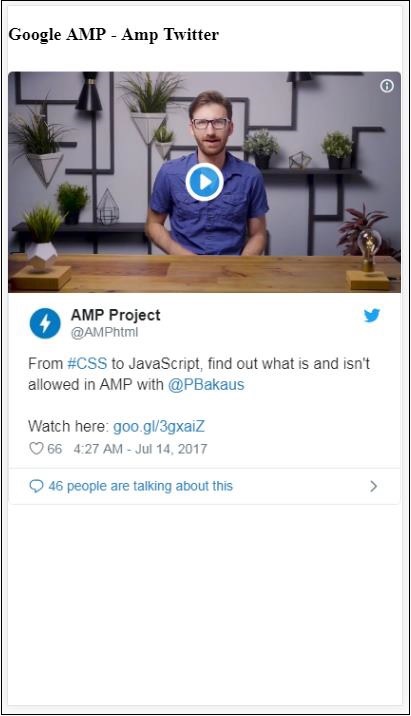

Output

Amp twitter tag
Advertisements
