Instruction type MOV M, r in 8085 Microprocessor
In 8085 Instruction set, this instruction MOV M, r will copy 8-bit value from the register r to the memory location as pointed by HL register pair.This instruction uses register addressing for specifying the data.
As “r” can have any one of the seven values −
r = A, B, C, D, E, H, or L
Thus there are seven opcodes for this type of instruction. It occupies only 1-Byte in memory.
Mnemonics, Operand | Opcode(in HEX) | Bytes |
---|---|---|
MOV M, A | 77 | 1 |
MOV M, B | 70 | 1 |
MOV M, C | 71 | 1 |
MOV M, D | 72 | 1 |
MOV M, E | 73 | 1 |
MOV M, H | 74 | 1 |
MOV M, L | 75 | 1 |
MOV M, E is an example instruction of this type. It is a 1-Byte instruction. Let us suppose, E is having the initial value ABH, HL register pair is pointing to the memory location 4050H, 4050H memory location’s content is CDH. Then after execution of the instruction MOV M, E, E register’s content will be CDH. The result of execution of this instruction is shown with this example is shown below −
Before | After | |
---|---|---|
(E) |
ABH | ABH |
(HL) |
(4050H) | (4050H) | (4050H) |
CDH | ABH |
Address | Hex Codes | Mnemonic | Comment |
---|---|---|---|
2005 | 273 | MOV M, E | Memory location pointer by HL register pair <- E |

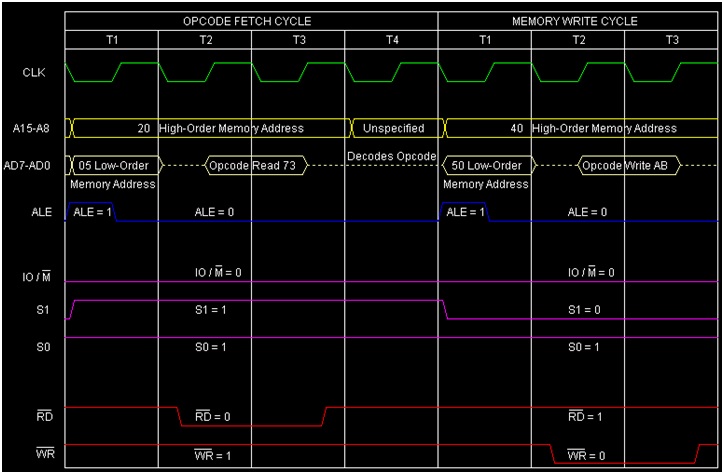

Here is the timing diagram of the instruction MOV M, E as below.
Summary − So this instruction MOV M, E requires 1-Byte, 2-Machine Cycles (Opcode Fetch, Memory Read) and 7 T-States for execution as shown in the timing diagram.
