Instruction type SUB R in 8085 Microprocessor
In 8085 Instruction, SUB is a mnemonic that stands for ‘SUBtract contents of R from Accumulator. Here R stands for any of the following registers, or memory location M pointed by HL pair.
R = A, B, C, D, E, H, L, or M
Mnemonics, Operand | Opcode(in HEX) | Bytes |
---|---|---|
SUB A | 97 | 1 |
SUB B | 90 | 1 |
SUB C | 91 | 1 |
SUB D | 92 | 1 |
SUB E | 93 | 1 |
SUB H | 94 | 1 |
SUB L | 95 | 1 |
SUB M | 96 | 1 |
In this instruction content of the register R will get subtracted from the Accumulator and the resultant difference will be stored on the Accumulator replacing the previous content of the Accumulator. Where R can be any of the eight values, so as a result there are eight opcodes for this type of instruction as mentioned in the above table. It occupies only 1-Byte in the memory.
Let us consider SUB E as an example instruction of this category. As It is 1-Byte instruction so it will occupy a single Byte space in the memory. The result of execution of this instruction is shown below with examples.
Example 1
Let us supposeAccumulator and E register are having initial values as ABH and CDH respectively. So after execution of the instruction SUB E the contents of the registers would be
Before | After | |
---|---|---|
(A) |
ABH | DEH |
(E) |
CDH | CDH |
(F) |
Any values | Cy=1,AC=0,S=1,P=1,Z=0 |
Address | Hex Codes | Mnemonic | Comment |
---|---|---|---|
2004 | 93 | SUB E | Accumulator = Accumulator + 2’s Complement of E |
Here Cy=1 indicates that result is negative. Actually A – E = A + 2’ Complement of E. Here is the calculation.
(A) ABH (1010 1011) ---------------> 1010 1011 2'S Complement (E) CDH (1100 1101) ---------------> 0011 0011 --------------- 1101 1110 (DEH)

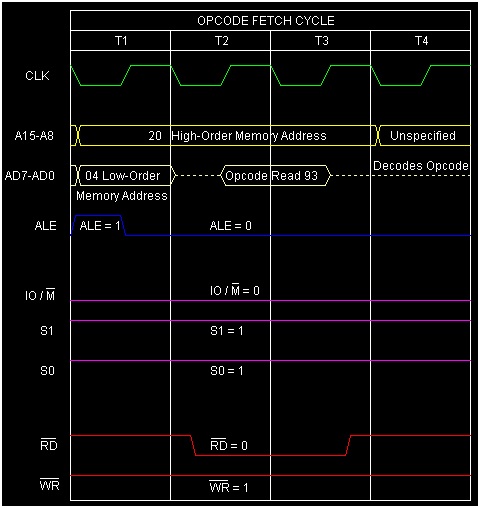

Here is the timing diagram of the instruction SUB E as below
Summary − So this instruction SUB E requires 1-Byte, 1 Machine Cycles (Opcode Fetch) and 4 T-States for execution as shown in the timing diagram.
Example 2
Let us suppose Accumulator and E register are having initial values as CDH and ABH respectively. So after execution of the instruction SUB E the contents of the registers would be
Before | After | |
---|---|---|
(A) |
CDH | 22H |
(E) |
ABH | ABH |
(F) |
Any values | Cy=0,AC=1,S=0,P=1,Z=0 |
Address | Hex Codes | Mnemonic | Comment |
---|---|---|---|
2004 | 93 | SUB E | Accumulator = Accumulator + 2’s Complement of E |
Here Cy=0 indicates that result is positive. Actually A – E = A + 2’ Complement of E. Here is the calculation.
(A) CDH (1100 1101) ---------------> 1100 1101 2'S Complement (E) ABH (1010 1011) ---------------> 0101 0101 ---------------- 0010 0010 (22H)
Here is the timing diagram of the instruction SUB E as below
Summary − So this instruction SUB E requires 1-Byte, 1 Machine Cycles (Opcode Fetch) and 4 T-States for execution as shown in the timing diagram.
