JavaFX example to create area chart with multiple series

JavaFXObject Oriented ProgrammingProgramming

The area chart accepts a series of data points (x, y) as input values, connects them using a line, and maps the area between the obtained line and the axis. In JavaFX you can create an area chart by instantiating the javafx.scene.chart.AreaChart class.

While instantiating this class you must pass the two objects of the Axis class representing the x and y-axis (as parameters of the constructor). Since the Axis class is abstract you need to pass objects of its concrete subclasses, NumberAxis (for numerical values) or, CategoryAxis (String values).

Area chart with multiple series

  • The XYChart.Data class represents a data point in the chart, you can create a data point by instantiating this class.

XYChart.Data dataPoint1 = new XYChart.Data(x-value, y-value)
XYChart.Data dataPoint2 = new XYChart.Data(x-value, y-value)
XYChart.Data dataPoint3 = new XYChart.Data(x-value, y-value)
  • Once you create all the required data points, you can create a series you need to instantiate the XYChart.Series class and add the data points to it.

XYChart.Series series = XYChart.Series
series.getData().add(dataPoint1);
series.getData().add(dataPoint2);
series.getData().add(dataPoint3);
  • You can create as many numbers of such series as required.

Example

Following the JavaFX example demonstrates the creation of multiple area charts.

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.scene.Scene;
import javafx.stage.Stage;
import javafx.scene.chart.AreaChart;
import javafx.scene.chart.CategoryAxis;
import javafx.scene.chart.NumberAxis;
import javafx.scene.chart.XYChart;
import javafx.scene.layout.StackPane;
public class AreaCharts_Multiple extends Application {
   public void start(Stage stage) {
      //Defining the x an y axes
      CategoryAxis xAxis = new CategoryAxis();
      NumberAxis yAxis = new NumberAxis();
      //Setting labels for the axes
      xAxis.setLabel("Month");
      yAxis.setLabel("Temperature(°C)");
      //Creating an area chart
      AreaChart<String, Number> areaChart = new AreaChart<String, Number>(xAxis, yAxis);
      //Preparing the data points for the series1
      XYChart.Series series1 = new XYChart.Series();
      series1.getData().add(new XYChart.Data("Jan", 7.0));
      series1.getData().add(new XYChart.Data("Feb", 6.9));
      series1.getData().add(new XYChart.Data("March", 9.5));
      series1.getData().add(new XYChart.Data("April", 14.5));
      series1.getData().add(new XYChart.Data("May", 18.2));
      series1.getData().add(new XYChart.Data("June", 21.5));
      series1.getData().add(new XYChart.Data("July", 25.2));
      series1.getData().add(new XYChart.Data("August", 26.5));
      series1.getData().add(new XYChart.Data("Sep", 23.3));
      series1.getData().add(new XYChart.Data("Oct", 18.3));
      series1.getData().add(new XYChart.Data("Nov", 13.9));
      series1.getData().add(new XYChart.Data("Dec", 9.6));
      //Preparing the data points for the series2
      XYChart.Series series2 = new XYChart.Series();
      series2.getData().add(new XYChart.Data("Jan", -0.2));
      series2.getData().add(new XYChart.Data("Feb", 0.8));
      series2.getData().add(new XYChart.Data("March", 5.7));
      series2.getData().add(new XYChart.Data("April", 11.3));
      series2.getData().add(new XYChart.Data("May", 17.0));
      series2.getData().add(new XYChart.Data("June", 22.0));
      series2.getData().add(new XYChart.Data("July", 24.8));
      series2.getData().add(new XYChart.Data("August", 24.1));
      series2.getData().add(new XYChart.Data("Sep", 20.1));
      series2.getData().add(new XYChart.Data("Oct", 14.1));
      series2.getData().add(new XYChart.Data("Nov", 8.6));
      series2.getData().add(new XYChart.Data("Dec", 2.5));
      //Preparing the data points for the series3
      XYChart.Series series3 = new XYChart.Series();
      series3.getData().add(new XYChart.Data("Jan", 3.9));
      series3.getData().add(new XYChart.Data("Feb", 4.2));
      series3.getData().add(new XYChart.Data("March", 5.7));
      series3.getData().add(new XYChart.Data("April", 8.5));
      series3.getData().add(new XYChart.Data("May", 11.9));
      series3.getData().add(new XYChart.Data("June", 15.2));
      series3.getData().add(new XYChart.Data("July", 17.0));
      series3.getData().add(new XYChart.Data("August", 16.6));
      series3.getData().add(new XYChart.Data("Sep", 14.2));
      series3.getData().add(new XYChart.Data("Oct", 10.3));
      series3.getData().add(new XYChart.Data("Nov", 6.6));
      series3.getData().add(new XYChart.Data("Dec", 4.8));
      //Setting the name to all the series
      series1.setName("Tokyo");
      series2.setName("New York");
      series3.setName("London");
      //Setting the data to area chart
      areaChart.getData().addAll(series1, series2, series3);
      //Creating a stack pane to hold the chart
      StackPane pane = new StackPane(areaChart);
      pane.setPadding(new Insets(15, 15, 15, 15));
      pane.setStyle("-fx-background-color: BEIGE");
      //Setting the Scene
      Scene scene = new Scene(pane, 595, 350);
      stage.setTitle("Area Chart");
      stage.setScene(scene);
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

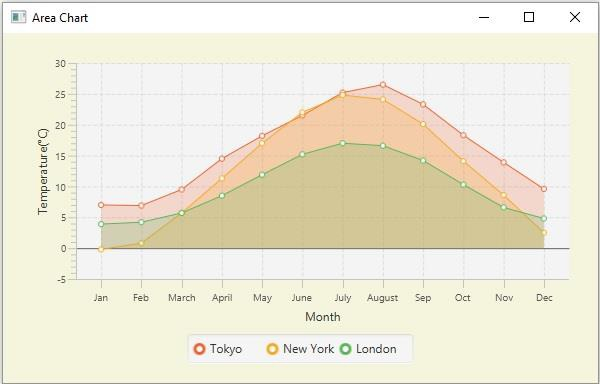

Output
