How to remove Load-use delay in Computer Architecture?
The layout of a processor pipeline significantly affects load-use delay ? the time between when data is loaded from memory and when it can be used by subsequent instructions. Understanding how different pipeline architectures handle this delay is crucial for optimizing processor performance.
Pipeline Architecture Analysis
Traditional RISC Pipeline

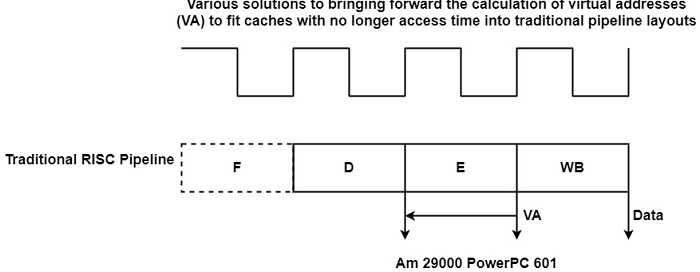

In a four-stage RISC pipeline, registers are accessed during the Decode (D) stage for address calculation components. The effective virtual address is calculated in the Execute (E) stage using the functional unit adder. With a high-performance cache, data becomes available at the end of the next cycle, resulting in a one-cycle load-use delay.
MIPS Pipeline

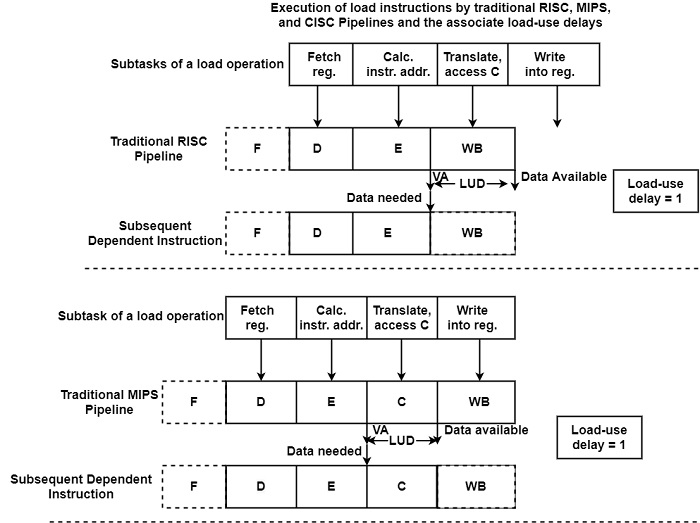

The traditional five-stage MIPS pipeline follows a similar pattern, sending the virtual address at the end of the Execute stage. Data arrives from the cache at the end of the Memory stage, also producing a one-cycle load-use delay.
CISC Pipeline
CISC pipelines are designed specifically for register-memory instructions. The pipeline layout allows referenced memory data to be used directly in the Execute stage of the same instruction, eliminating load-use delay entirely. However, the larger number of pipeline stages increases the likelihood of dependent instructions executing in parallel, which can negatively impact performance.
Optimization Techniques
| Technique | Implementation | Examples | Benefit |
|---|---|---|---|
| Early Address Calculation | Move address calculation to decode stage | Am29000, R6000 | Eliminates one cycle delay |
| Split-Cycle Processing | Address calculation in first half of execute cycle | R2000, R3000, HP 7100 | Reduces delay by half cycle |
| Pipeline Forwarding | Forward results before writeback | Most modern processors | Bypasses register file delays |
Advanced Implementations

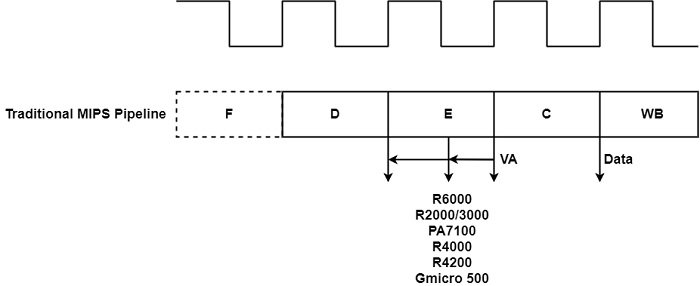

The R2000 and R3000 processors perform address calculation in the first half of the Execute cycle, allowing earlier cache access. The HP 7100 uses this technique specifically to accommodate its off-chip cache design. More aggressive implementations like the Am29000 and R6000 shift address calculations entirely into the Decode stage.
Cache Performance Considerations
These optimizations assume high-performance caches with single-cycle access including address translation. For slower caches, load-use delays increase proportionally unless special techniques are employed. Modern processors often use data forwarding and out-of-order execution to further mitigate these delays.
Conclusion
Load-use delay can be effectively reduced through early address calculation, split-cycle processing, and specialized pipeline layouts. While CISC architectures naturally avoid this delay, RISC processors achieve similar performance through careful pipeline optimization and forwarding mechanisms.
