# How to plot matrix elements using corrplot in R?

R ProgrammingServer Side ProgrammingProgramming

#### Artificial Intelligence : The Future Of Programming

15 Lectures 54 mins

#### Beyond Basic Programming - Intermediate Python

Most Popular

36 Lectures 3 hours

#### C Programming from scratch- Master C Programming

Best Seller

60 Lectures 8 hours

To create a plot of matrix elements with the help of corrplot function, we would need to set is.corr argument to FALSE so that the matrix values will be plotted in the diagram, otherwise, the corrplot function requires correlation matrix instead of a matrix hence there will be an error as shown in the Example below.

## Example

Consider the matrix given below −

M<-matrix(round(rnorm(80),2),ncol=4)
M

The following dataframe is created

        [,1] [,2]   [,3] [,4]
[1,]  0.23 -1.24 -1.10 -0.54
[2,]  0.82  0.78 -0.03 -0.49
[3,] -1.52  0.81 -0.80  0.29
[4,]  2.23 -0.43 -2.81  1.41
[5,] -0.86 -1.05  0.59  0.37
[6,] -0.77 -0.22  1.17 -0.43
[7,]  0.50  0.27  1.95  0.50
[8,]  0.91  0.69  0.40  1.71
[9,]  0.13 -0.33 -0.37 -0.65
[10,]  0.71 -0.56  0.06  0.23
[11,] -0.42  1.44  1.38  1.97
[12,]  0.49 -0.21  0.41  0.67
[13,]  0.56  1.11 -1.13 -0.23
[14,] -1.65  0.42  0.06 -0.49
[15,]  1.38  0.20  1.01 -1.33
[16,] -0.68 -0.71 -0.38 -0.16
[17,]  0.22 -1.62 -0.63  0.59
[18,]  0.75  1.04 -2.03 -0.97
[19,]  0.64  1.79 -0.02 -0.17
[20,]  1.11  0.04  0.67  1.19

To load the corrplot package and create a plot of matrix M on the above created data frame, add the following code to the above snippet −

M<-matrix(round(rnorm(80),2),ncol=4)
library(corrplot)
corrplot(M)

## Output

If you execute all the above given snippets as a single program, it generates the following Output −

Error in corrplot(M) : The matrix is not in [-1, 1]!

To create a plot of correlation matrix M on the above created data frame, add the following code to the above snippet −

M<-matrix(round(rnorm(80),2),ncol=4)
library(corrplot)
corrplot(cor(M))

## Output

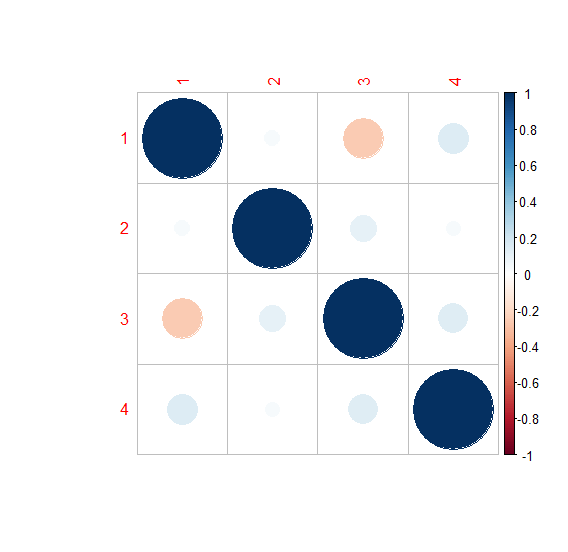

If you execute all the above given snippets as a single program, it generates the following Output −

To create a plot of matrix M on the above created data frame, add the following code to the above snippet −

M<-matrix(round(rnorm(80),2),ncol=4)
library(corrplot)
corrplot(M,is.corr=FALSE)

## Output

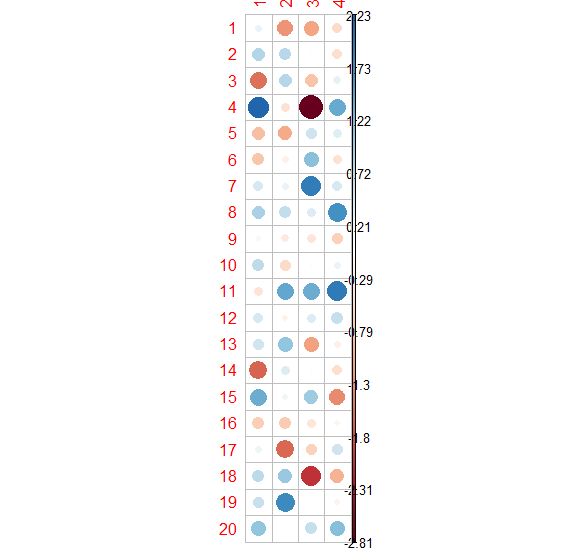

If you execute all the above given snippets as a single program, it generates the following Output −

Updated on 11-Nov-2021 06:41:52
