8085 program to check whether both the nibbles of 8 bit number are equal or not

MicroprocessorMicrocontroller8085

Here we will see how to check whether two nibbles of a number are same or not.

Problem Statement

Write 8085 Assembly language program to check whether upper nibble and lower nibbles are same or not.

Discussion

To check the nibbles, we have to mask at first. So we need to mask the lower nibble and upper nibble and store them into different registers. The upper nibble will be shifted to the right four bits to make it lower nibble. Then we can check both are same or not. If they are same store 00 at F150 location, otherwise store FF at F150 location.

Input

Address
Data
F050
FE



Address
Data
F050
AA

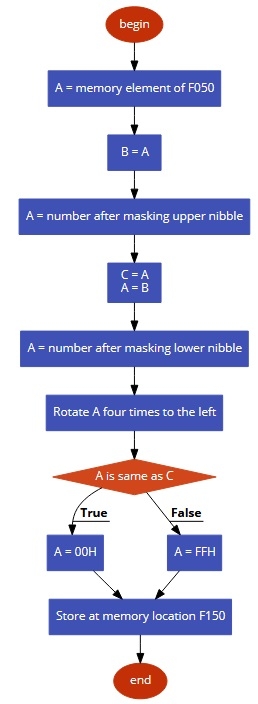

Flow Diagram



program

Address
HEX Codes
Labels
Mnemonics
Comments
F000
3A, 50 F0

LDA F050
memory element of F050
F003
47

MOV B, A
Load A into B
F004
E6, 0F

ANI 0F
Mask upper nibble
F006
4F

MOV C, A
Load C with A
F007
78

MOV A, B
Load A with B
F008
E6, F0

ANI F0
Mask lower nibble
F00A
07

RLC
Rotate A to the left
F00B
07

RLC
Rotate A to the left
F00C
07

RLC
Rotate A to the left
F00D
07

RLC
Rotate A to the left
F00E
B9

CMP C
Compare C and A
F00F
CA, 17, F0

JZ LABEL
If Z flag is enabled jump to Label
F012
3E, FF

MVI A, FF
Load A with FF
F014
C3, 19, F0

JMP STORE
Jump to Store
F017
3E, 00
LABEL
MVI A, 00
Load A with 00H
F019
32, 50, F1
STORE
STA F150
Store result at memory F150
F01C
76

HLT
Terminate the program



Output

Address
Data
F150
FF



Address
Data
F150
00
