8085 program to check whether the given number is even or odd
In this program we will see how to check whether a number is odd or even.
Problem Statement
Write 8085 Assembly language program to check whether a number is odd or even.
Discussion
The Odd Even checking is very simple. we can determine one number is odd or even by checking only the LSb. When LSb is 1, the number is odd, otherwise it is even.In this program we are taking a number from memory and then ANDing 01H with it. if the result is nonzero, then the number is odd, otherwise it is even.
Input
first input
Address | Data |
---|---|
. . . | . . . |
8000 | 15 |
. . . | . . . |
second input
Address | Data |
---|---|
. . . | . . . |
8000 | 2C |
. . . | . . . |

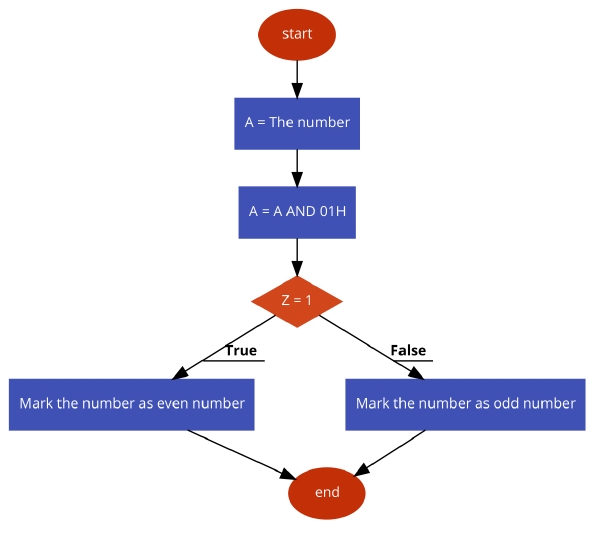

Flow Diagram
Program
Address | HEX Codes | Label | Mnemonics | Comments |
---|---|---|---|---|
F000 | 3A, 00, 80 | LDA 8000H | Load the number from memory | |
F003 | E6, 01 | ANI 01H | AND 01H with Acc content | |
F005 | CA, 0D, F0 | JZ EVEN | If Z = 0, it is Even | |
F008 | 3E, 01 | MVI A, 01H | Load 01H to indicate it is Odd | |
F00A | C3, 0F, F0 | JMP STORE | Jump to store | |
F00D | 3E, FF | EVEN | MVI A, FFH | Load FFH to indicate it is Even |
F00F | 32, 50, 80 | STORE | STA 8050H | Store the result into memory |
F012 | 76 | HLT | Terminate the program |
Output
first input
Address | Data |
---|---|
. . . | . . . |
8000 | 01 |
. . . | . . . |
second input
Address | Data |
---|---|
. . . | . . . |
8000 | FF |
. . . | . . . |
