Spring - MVC Framework Overview

The Spring Web MVC framework provides a model-view-controller architecture and ready components that can be used to develop flexible and loosely coupled web applications. The MVC pattern results in separating the different aspects of the application (input logic, business logic, and UI logic), while providing a loose coupling between these elements.

  • The Model encapsulates the application data and in general, they will consist of POJO.

  • The View is responsible for rendering the model data and in general, it generates HTML output that the client's browser can interpret.

  • The Controller is responsible for processing User Requests and Building Appropriate Model and passes it to the view for rendering.

The DispatcherServlet

The Spring Web model-view-controller (MVC) framework is designed around a DispatcherServlet that handles all the HTTP requests and responses. The request processing workflow of the Spring Web MVC DispatcherServlet is shown in the following illustration.

Spring DispatcherServlet

Following is the sequence of events corresponding to an incoming HTTP request to DispatcherServlet −

  • After receiving an HTTP request, DispatcherServlet consults the HandlerMapping to call the appropriate Controller.

  • The Controller takes the request and calls the appropriate service methods based on used GET or POST method. The service method will set model data based on defined business logic and returns view name to the DispatcherServlet.

  • The DispatcherServlet will take help from ViewResolver to pick up the defined view for the request.

  • Once view is finalized, The DispatcherServlet passes the model data to the view, which is finally rendered, on the browsers.

All the above-mentioned components, i.e. HandlerMapping, Controller and ViewResolver are parts of WebApplicationContext, which is an extension of the plain ApplicationContext with some extra features necessary for web applications.

Required Configuration

We need to map requests that you want the DispatcherServlet to handle, by using a URL mapping in the web.xml file. The following is an example to show declaration and mapping for HelloWeb DispatcherServlet −

<web-app id = "WebApp_ID" version = "2.4"
   xmlns = "http://java.sun.com/xml/ns/j2ee"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "http://java.sun.com/xml/ns/j2ee
   http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd">

   <display-name>Spring MVC Application</display-name>

   <servlet>
      <servlet-name>HelloWeb</servlet-name>
      <servlet-class>
         org.springframework.web.servlet.DispatcherServlet
      </servlet-class>
      <load-on-startup>1</load-on-startup>
   </servlet>

   <servlet-mapping>
      <servlet-name>HelloWeb</servlet-name>
      <url-pattern>*.jsp</url-pattern>
   </servlet-mapping>
</web-app>

The web.xml file will be kept in the WebContent/WEB-INF directory of your web application. Upon initialization of the HelloWeb DispatcherServlet, the framework will try to load the application context from a file named [servlet-name]-servlet.xml located in the application's WebContent/WEB-INF directory. In this case, our file will be HelloWeb-servlet.xml.

Next, the <servlet-mapping> tag indicates which URLs will be handled by which DispatcherServlet. Here, all the HTTP requests ending with .jsp will be handled by the HelloWeb DispatcherServlet.

If you do not want to go with the default filename as [servlet-name]-servlet.xml and default location as WebContent/WEB-INF, you can customize this file name and location by adding the servlet listener ContextLoaderListener in your web.xml file as follows −

<web-app...>

   <!-------- DispatcherServlet definition goes here----->
   ....
   <context-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>/WEB-INF/HelloWeb-servlet.xml</param-value>
   </context-param>

   <listener>
      <listener-class>
         org.springframework.web.context.ContextLoaderListener
      </listener-class>
   </listener>
</web-app>

Now, let us check the required configuration for HelloWeb-servlet.xml file, placed in your web application's WebContent/WEB-INF directory.

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <context:component-scan base-package = "com.tutorialspoint" />

   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/" />
      <property name = "suffix" value = ".jsp" />
   </bean>

</beans>

Following are some important points about HelloWeb-servlet.xml file −

  • The [servlet-name]-servlet.xml file will be used to create the beans defined, overriding the definitions of any beans defined with the same name in the global scope.

  • The <context:component-scan...> tag will be used to activate the Spring MVC annotation scanning capability, which allows to make use of annotations like @Controller and @RequestMapping, etc.

  • The InternalResourceViewResolver will have rules defined to resolve the view names. As per the above-defined rule, a logical view named hello is delegated to a view implementation located at /WEB-INF/jsp/hello.jsp.

Let us now understand how to create the actual components i.e., Controller, Model and View.

Defining a Controller

The DispatcherServlet delegates the request to the controllers to execute the functionality specific to it. The @Controller annotation indicates that a particular class serves the role of a controller. The @RequestMapping annotation is used to map a URL to either an entire class or a particular handler method.

@Controller
@RequestMapping("/hello")
public class HelloController{

   @RequestMapping(method = RequestMethod.GET)
   public String printHello(ModelMap model) {
      model.addAttribute("message", "Hello Spring MVC Framework!");
      return "hello";
   }

}

The @Controller annotation defines the class as a Spring MVC controller. Here, the first usage of @RequestMapping indicates that all handling methods on this controller are relative to the /hello path.

The next annotation @RequestMapping (method = RequestMethod.GET) is used to declare the printHello() method as the controller's default service method to handle HTTP GET request. We can define another method to handle any POST request at the same URL.

We can also write the above controller in another form, where we can add additional attributes in the @RequestMapping as follows −

@Controller
public class HelloController{

   @RequestMapping(value = "/hello", method = RequestMethod.GET)
   public String printHello(ModelMap model) {
      model.addAttribute("message", "Hello Spring MVC Framework!");
      return "hello";
   }

}

The value attribute indicates the URL to which the handler method is mapped and the method attribute defines the service method to handle the HTTP GET request.

Following are some important points to be noted regarding the controller defined above −

  • You will define the required business logic inside a service method. You can call another method inside this method as per the requirement.

  • Based on the business logic defined, you will create a model within this method. You can set different model attributes and these attributes will be accessed by the view to present the result. This example creates a model with its attribute "message".

  • A defined service method can return a String, which contains the name of the view to be used to render the model. This example returns "hello" as the logical view name.

Creating JSP Views

Spring MVC supports many types of views for different presentation technologies. These include - JSPs, HTML, PDF, Excel Worksheets, XML, Velocity Templates, XSLT, JSON, Atom and RSS feeds, JasperReports, etc. However, the most common ones are the JSP templates written with JSTL. So, let us write a simple hello view in /WEB-INF/hello/hello.jsp −

<html>
   <head>
      <title>Hello Spring MVC</title>
   </head>
   <body>
      <h2>${message}</h2>
   </body>
</html>

Here ${message} Here is the attribute, which we have setup inside the Controller. You can have multiple attributes to be displayed inside your view.

Spring MVC - Environment Setup

This chapter will guide us on how to prepare a development environment to start your work with the Spring Framework. This chapter will also teach us how to setup JDK, Tomcat and Eclipse on your machine before you setup the Spring Framework −

Step 1 - Setup Java Development Kit (JDK)

You can download the latest version from Oracle's Java site − Java SE Downloads. You will find instructions for installing JDK in downloaded files, follow the given instructions to install and configure the setup. Once done with the setup, set PATH and JAVA_HOME environment variables to refer to the directory that containsjava and javac, typically java_install_dir/bin and java_install_dir respectively.

If you are running Windows and installed the JDK in C:\jdk1.6.0_15, you would have to put the following line in your C:\autoexec.bat file.

set PATH = C:\jdk1.6.0_15\bin;%PATH%
set JAVA_HOME = C:\jdk1.6.0_15

Alternatively, on Windows NT/2000/XP, you could also right-click on My Computer → select Properties → Advanced → Environment Variables. Then, you would update the PATH value and click on the OK button.

On UNIX (Solaris, Linux, etc.), if the SDK is installed in /usr/local/jdk1.6.0_15 and you use the C shell, then you should key-in the following command into your .cshrc file.

setenv PATH /usr/local/jdk1.6.0_15/bin:$PATH
setenv JAVA_HOME /usr/local/jdk1.6.0_15

Alternatively, if you use an Integrated Development Environment (IDE) like Borland JBuilder, Eclipse, IntelliJ IDEA or Sun ONE Studio, then compile and run a simple program to confirm that the IDE knows where Java is installed, otherwise do proper setup as given in the documents of IDE.

Step 2 − Install Apache Common Logging API

You can download the latest version of Apache Commons Logging API from https://commons.apache.org/logging/. Once you have downloaded the installation, unpack the binary distribution into a convenient location.

For example – C:\commons-logging-1.1.1 on windows, or /usr/local/commons-logging1.1.1 on Linux/Unix. This directory will have the following jar files and other supporting documents, etc.

Common Logging API

Make sure you set your CLASSPATH variable on this directory properly, otherwise you will face problem while running your application.

Step 3 - Setup Eclipse IDE

All the examples in this tutorial have been written using the Eclipse IDE. Therefore, it is recommended that we should have the latest version of Eclipse installed on the machine.

To install Eclipse IDE, download the latest Eclipse binaries from the following link https://www.eclipse.org/downloads/. Once the installation is downloaded, unpack the binary distribution into a convenient location.

For example in – C:\eclipse on windows, or /usr/local/eclipse on Linux/Unix and finally set PATH variable appropriately.

Eclipse can be started by executing the following commands on a windows machine, or we can simply double click on the eclipse.exe.

 %C:\eclipse\eclipse.exe

Eclipse can be started by executing the following commands on a UNIX (Solaris, Linux, etc.) machine −

$/usr/local/eclipse/eclipse

After a successful startup, if everything is fine, then it should display the following screen.

Eclipse Home page

Step 4 - Setup Spring Framework Libraries

Now if everything is fine, then we can proceed to setup the Spring Framework. Following are the steps to download and install the framework on the machine.

  • Make a choice whether you want to install Spring on Windows or UNIX and then proceed to the next step to download .zip file for windows and .tz file for Unix.

  • Download the latest version of Spring framework binaries from https://repo.spring.io/release/org/springframework/spring.

  • We have downloaded the spring-framework-4.3.1.RELEASE-dist.zip on the Windows Machine and when we unzip the downloaded file, it will give out the directory structure inside – E:\spring as follows.

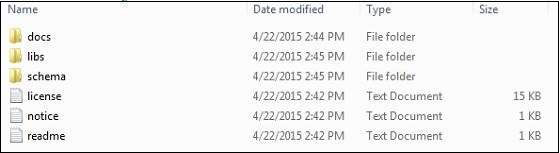

Spring Directories

You will find all the Spring libraries in the directory E:\spring\libs. Make sure you set your CLASSPATH variable on this directory properly; otherwise, we will face a problem while running the application. If we use Eclipse, then it is not required to set the CLASSPATH because all the setting will be done through Eclipse.

Once you are done with this last step, you are ready to proceed for your first Spring Example, which you will see in the next chapter.

Spring MVC - Hello World Example

The following example shows how to write a simple web based Hello World application using the Spring MVC Framework. To start with, let us have a working Eclipse IDE in place and follow the subsequent steps to develop a Dynamic Web Application using the Spring Web Framework.

Step Description
1 Create a Dynamic Web Project with a name HelloWeb and create a package com.tutorialspoint under the src folder in the created project.
2 Drag and drop the following Spring and other libraries into the folder WebContent/WEB-INF/lib..
3 Create a Java class HelloController under the com.tutorialspoint package.
4 Create Spring configuration files web.xml and HelloWeb-servlet.xml under the WebContent/WEB-INF folder.
5 Create a sub-folder with a name jsp under the WebContent/WEB-INFfolder. Create a view file hello.jsp under this sub-folder.
6 The final step is to create the content of the source and configuration files and export the application as explained below.

HelloController.java

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.ui.ModelMap;

@Controller
@RequestMapping("/hello")
public class HelloController{

   @RequestMapping(method = RequestMethod.GET)
   public String printHello(ModelMap model) {
      model.addAttribute("message", "Hello Spring MVC Framework!");

      return "hello";
   }

}

web.xml

<web-app id = "WebApp_ID" version = "2.4"
   xmlns = "http://java.sun.com/xml/ns/j2ee"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "http://java.sun.com/xml/ns/j2ee
   http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd">

   <display-name>Spring MVC Application</display-name>

   <servlet>
      <servlet-name>HelloWeb</servlet-name>
      <servlet-class>
         org.springframework.web.servlet.DispatcherServlet
      </servlet-class>
      <load-on-startup>1</load-on-startup>
   </servlet>

   <servlet-mapping>
      <servlet-name>HelloWeb</servlet-name>
      <url-pattern>/</url-pattern>
   </servlet-mapping>

</web-app>

HelloWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <context:component-scan base-package = "com.tutorialspoint" />

   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/" />
      <property name = "suffix" value = ".jsp" />
   </bean>

</beans>

hello.jsp

<%@ page contentType = "text/html; charset = UTF-8" %>
<html>
   <head>
      <title>Hello World</title>
   </head>
   <body>
      <h2>${message}</h2>
   </body>
</html>

Following is the list of Spring and other libraries to be included in the web application. We can just drag these files and drop them in – WebContent/WEB-INF/lib folder.

  • servlet-api-x.y.z.jar

  • commons-logging-x.y.z.jar

  • spring-aop-x.y.z.jar

  • spring-beans-x.y.z.jar

  • spring-context-x.y.z.jar

  • spring-core-x.y.z.jar

  • spring-expression-x.y.z.jar

  • spring-webmvc-x.y.z.jar

  • spring-web-x.y.z.jar

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save your HelloWeb.war file in Tomcat's webapps folder.

Now start your Tomcat server and make sure you are able to access other webpages from webapps folder using a standard browser. Now, try to access the URL − http://localhost:8080/HelloWeb/hello. If everything is fine with the Spring Web Application, we will see the following screen.

Spring Web Hello World

You should note that in the given URL, HelloWeb is the application name and hello is the virtual subfolder, which we have mentioned in our controller using @RequestMapping("/hello"). You can use direct root while mapping your URL using @RequestMapping("/"), in this case you can access the same page using short URL http://localhost:8080/HelloWeb/, but it is advised to have different functionalities under different folders.

Spring MVC - Form Handling Example

The following example shows how to write a simple web based Hello World application using the Spring MVC Framework. To start with, let us have a working Eclipse IDE in place and follow the subsequent steps to develop a Dynamic Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name HelloWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes Student, StudentController under the com.tutorialspoint package.
3 Create view files student.jsp, result.jsp under the jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

Student.java

package com.tutorialspoint;

public class Student {
   private Integer age;
   private String name;
   private Integer id;

   public void setAge(Integer age) {
      this.age = age;
   }
   public Integer getAge() {
      return age;
   }

   public void setName(String name) {
      this.name = name;
   }
   public String getName() {
      return name;
   }

   public void setId(Integer id) {
      this.id = id;
   }
   public Integer getId() {
      return id;
   }
}

StudentController.java

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.ui.ModelMap;

@Controller
public class StudentController {

   @RequestMapping(value = "/student", method = RequestMethod.GET)
   public ModelAndView student() {
      return new ModelAndView("student", "command", new Student());
   }

   @RequestMapping(value = "/addStudent", method = RequestMethod.POST)
   public String addStudent(@ModelAttribute("SpringWeb")Student student,
   ModelMap model) {
      model.addAttribute("name", student.getName());
      model.addAttribute("age", student.getAge());
      model.addAttribute("id", student.getId());

      return "result";
   }
}

Here, the first service method student(), we have passed a blank Studentobject in the ModelAndView object with name "command". This is done because the spring framework expects an object with name "command", if we use <form:form> tags in the JSP file. So, when the student() method is called, it returns student.jsp view.

The second service method addStudent() will be called against a POST method on the HelloWeb/addStudent URL. You will prepare your model object based on the submitted information. Finally, a "result" view will be returned from the service method, which will result in rendering result.jsp.

student.jsp

<%@taglib uri="http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>

   <body>
      <h2>Student Information</h2>
      <form:form method = "POST" action = "/HelloWeb/addStudent">
         <table>
            <tr>
               <td><form:label path = "name">Name</form:label></td>
               <td><form:input path = "name" /></td>
            </tr>
            <tr>
               <td><form:label path = "age">Age</form:label></td>
               <td><form:input path = "age" /></td>
            </tr>
            <tr>
               <td><form:label path = "id">id</form:label></td>
               <td><form:input path = "id" /></td>
            </tr>
            <tr>
               <td colspan = "2">
                  <input type = "submit" value = "Submit"/>
               </td>
            </tr>
         </table>
      </form:form>
   </body>
</html>

result.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>Submitted Student Information</h2>
      <table>
         <tr>
            <td>Name</td>
            <td>${name}</td>
         </tr>
         <tr>
            <td>Age</td>
            <td>${age}</td>
         </tr>
         <tr>
            <td>ID</td>
            <td>${id}</td>
         </tr>
      </table>
   </body>
</html>

Once we are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the SpringWeb.war file in Tomcat's webapps folder.

Now, start the Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Now, try a URL– http://localhost:8080/SpringWeb/student and you should see the following screen if everything is fine with the Spring Web Application.

Spring Student Form

After submitting the required information, click on the submit button to submit the form. You should see the following screen, if everything is fine with your Spring Web Application.

Spring Student Form Result

Spring MVC - Page Redirection Example

The following example shows how to write a simple web based application, which makes use of redirect to transfer an http request to another page. To start with, let us have a working Eclipse IDE in place and consider the following steps to develop a Dynamic Form based Web Application using Spring Web Framework −

Step Description
1 Create a project with a name HelloWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create a Java class WebController under the com.tutorialspoint package.
3 Create view files index.jsp, final.jsp under jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

WebController.java

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

@Controller
public class WebController {

   @RequestMapping(value = "/index", method = RequestMethod.GET)
   public String index() {
	   return "index";
   }

   @RequestMapping(value = "/redirect", method = RequestMethod.GET)
   public String redirect() {

      return "redirect:finalPage";
   }

   @RequestMapping(value = "/finalPage", method = RequestMethod.GET)
   public String finalPage() {

      return "final";
   }
}

Following is the content of Spring view file index.jsp. This will be a landing page, this page will send a request to the access-redirect service method, which will redirect this request to another service method and finally a final.jsppage will be displayed.

index.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring Page Redirection</title>
   </head>
   <body>
      <h2>Spring Page Redirection</h2>
      <p>Click below button to redirect the result to new page</p>
      <form:form method = "GET" action = "/HelloWeb/redirect">
         <table>
            <tr>
               <td>
                  <input type = "submit" value = "Redirect Page"/>
               </td>
            </tr>
         </table>
      </form:form>
   </body>
</html>

final.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>

   <head>
      <title>Spring Page Redirection</title>
   </head>

   <body>
      <h2>Redirected Page</h2>
   </body>

</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save your HelloWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from webapps folder using a standard browser. Try a URL –http://localhost:8080/HelloWeb/index and you should see the following screen if everything is fine with the Spring Web Application.

Spring Redirect Form

Now click on the "Redirect Page" button to submit the form and to get to the final redirected page. We should see the following screen, if everything is fine with our Spring Web Application −

Spring Redirect Form Result

Spring MVC - Static Pages Example

The following example shows how to write a simple web based application using Spring MVC Framework, which can access static pages along with dynamic pages with the help of a <mvc:resources> tag.

To begin with, let us have a working Eclipse IDE in place and adhere to the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name HelloWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create a Java class WebController under the com.tutorialspoint package.
3 Create a static file final.htm under jsp sub-folder.
4 Update the Spring configuration file HelloWeb-servlet.xml under the WebContent/WEB-INF folder as shown below.
5 The final step is to create the content of the source and configuration files and export the application, which is explained below.

WebController.java

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

@Controller
public class WebController {

   @RequestMapping(value = "/index", method = RequestMethod.GET)
   public String index() {
	   return "index";
   }

   @RequestMapping(value = "/staticPage", method = RequestMethod.GET)
   public String redirect() {

      return "redirect:/pages/final.htm";
   }
}

HelloWeb-servlet.xml

<?xml version = "1.0" encoding = "UTF-8"?>
<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:xsi = "  http://www.w3.org/2001/XMLSchema-instance"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:mvc = "http://www.springframework.org/schema/mvc"
   xsi:schemaLocation = "http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
   http://www.springframework.org/schema/mvc
   http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <context:component-scan base-package = "com.tutorialspoint" />

   <bean id = "viewResolver" class = "org.springframework.web.servlet.view.InternalResourceViewResolver">

      <property name = "prefix" value = "/WEB-INF/jsp/" />
      <property name = "suffix" value = ".jsp" />
   </bean>
   <mvc:resources mapping = "/pages/**" location = "/WEB-INF/pages/" />
   <mvc:annotation-driven/>
</beans>

Here, the <mvc:resources..../> tag is being used to map static pages. The mapping attribute must be an Ant pattern that specifies the URL pattern of an http requests. The location attribute must specify one or more valid resource directory locations having static pages including images, stylesheets, JavaScript, and other static content. Multiple resource locations may be specified using a comma-separated list of values.

Following is the content of Spring view file WEB-INF/jsp/index.jsp. This will be a landing page; this page will send a request to access the staticPage service method, which will redirect this request to a static page available in WEB-INF/pages folder.

index.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring Landing Page</title>
   </head>
   <body>
      <h2>Spring Landing Pag</h2>
      <p>Click below button to get a simple HTML page</p>
      <form:form method = "GET" action = "/HelloWeb/staticPage">
         <table>
            <tr>
               <td>
                  <input type = "submit" value = "Get HTML Page"/>
               </td>
            </tr>
         </table>
      </form:form>
   </body>
</html>

final.htm

<html>
   <head>
      <title>Spring Static Page</title>
   </head>
   <body>
      <h2>A simple HTML page</h2>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save your HelloWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from webapps folder using a standard browser. Now try to access the URL – http://localhost:8080/HelloWeb/index. If everything is fine with the Spring Web Application, we will see the following screen.

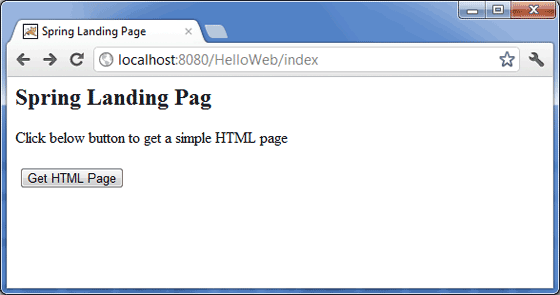

Spring static page

Click on "Get HTML Page" button to access a static page mentioned in the staticPage service method. If everything is fine with your Spring Web Application, we will see the following screen.

Spring static page Result

Spring MVC - Text Box Example

The following example shows how to use Text boxes in forms using the Spring Web MVC framework. To begin with, let us have a working Eclipse IDE in place and stick to the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework −

Step Description
1 Create a project with a name HelloWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World Example chapter.
2 Create a Java classes Student, StudentController under the com.tutorialspoint package.
3 Create a view files student.jsp, result.jsp under jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

Student.java

package com.tutorialspoint;

public class Student {
   private Integer age;
   private String name;
   private Integer id;

   public void setAge(Integer age) {
      this.age = age;
   }
   public Integer getAge() {
      return age;
   }

   public void setName(String name) {
      this.name = name;
   }
   public String getName() {
      return name;
   }

   public void setId(Integer id) {
      this.id = id;
   }
   public Integer getId() {
      return id;
   }
}

StudentController.java

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.ui.ModelMap;

@Controller
public class StudentController {

   @RequestMapping(value = "/student", method = RequestMethod.GET)
   public ModelAndView student() {
      return new ModelAndView("student", "command", new Student());
   }

   @RequestMapping(value = "/addStudent", method = RequestMethod.POST)
   public String addStudent(@ModelAttribute("SpringWeb")Student student,
      ModelMap model) {
      model.addAttribute("name", student.getName());
      model.addAttribute("age", student.getAge());
      model.addAttribute("id", student.getId());

      return "result";
   }
}

Here, the first service method student(), we have passed a blank Studentobject in the ModelAndView object with name "command", because the spring framework expects an object with name "command", if you are using <form:form> tags in your JSP file. So, when the student() method is called it returns student.jsp view.

The second service method addStudent() will be called against a POST method on the HelloWeb/addStudent URL. You will prepare your model object based on the submitted information. Finally, a "result" view will be returned from the service method, which will result in rendering result.jsp

student.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>Student Information</h2>
      <form:form method = "POST" action = "/HelloWeb/addStudent">
         <table>
            <tr>
               <td><form:label path = "name">Name</form:label></td>
               <td><form:input path = "name" /></td>
            </tr>
            <tr>
               <td><form:label path = "age">Age</form:label></td>
               <td><form:input path = "age" /></td>
            </tr>
            <tr>
               <td><form:label path = "id">id</form:label></td>
               <td><form:input path = "id" /></td>
            </tr>
            <tr>
               <td colspan = "2">
                  <input type = "submit" value = "Submit"/>
               </td>
            </tr>
         </table>
      </form:form>
   </body>
</html>

Here, we are using <form:input /> tag to render an HTML text box. For example −

<form:input path = "name" />

It will render following HTML content.

<input id = "name" name = "name" type = "text" value = ""/>

result.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>Submitted Student Information</h2>
      <table>
         <tr>
            <td>Name</td>
            <td>${name}</td>
         </tr>
         <tr>
            <td>Age</td>
            <td>${age}</td>
         </tr>
         <tr>
            <td>ID</td>
            <td>${id}</td>
         </tr>
      </table>
   </body>
</html>

Once we are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the HelloWeb.war file in Tomcat's webapps folder.

Now, start the Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Try a URL – http://localhost:8080/HelloWeb/student and we will see the following screen if everything is fine with the Spring Web Application.

Textbox Spring Student Form

After submitting the required information, click on the submit button to submit the form. We should see the following screen, if everything is fine with the Spring Web Application.

Textbox Spring Student Form Result

Spring MVC - Password Example

The following example describes how to use Password in forms using the Spring Web MVC framework. To start with, let us have a working Eclipse IDE in place and adhere to the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name HelloWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes User, UserController under the com.tutorialspointpackage.
3 Create view files user.jsp, users.jsp under jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

User.java

package com.tutorialspoint;

public class User {

   private String username;
   private String password;

   public String getUsername() {
      return username;
   }
   public void setUsername(String username) {
      this.username = username;
   }

   public String getPassword() {
      return password;
   }
   public void setPassword(String password) {
      this.password = password;
   }
}

UserController.java

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.ui.ModelMap;

@Controller
public class UserController {

   @RequestMapping(value = "/user", method = RequestMethod.GET)
   public ModelAndView user() {
      return new ModelAndView("user", "command", new User());
   }

   @RequestMapping(value = "/addUser", method = RequestMethod.POST)
   public String addUser(@ModelAttribute("SpringWeb")User user,
      ModelMap model) {
      model.addAttribute("username", user.getUsername());
      model.addAttribute("password", user.getPassword());

      return "users";
   }
}

Here, the first service method user(), we have passed a blank User object in the ModelAndView object with name "command", because the spring framework expects an object with name "command", if you are using <form:form> tags in your JSP file. So, when the user() method is called it returns user.jsp view.

The Second service method addUser() will be called against a POST method on the HelloWeb/addUser URL. You will prepare your model object based on the submitted information. Finally, the "users" view will be returned from the service method, which will result in rendering the users.jsp.

user.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>User Information</h2>
      <form:form method = "POST" action = "/HelloWeb/addUser">
         <table>
            <tr>
               <td><form:label path = "username">User Name</form:label></td>
               <td><form:input path = "username" /></td>
            </tr>
            <tr>
               <td><form:label path = "password">Age</form:label></td>
               <td><form:password path = "password" /></td>
            </tr>
            <tr>
               <td colspan = "2">
                  <input type = "submit" value = "Submit"/>
               </td>
            </tr>
         </table>
      </form:form>
   </body>
</html>

Here, we are using the <form:password /> tag to render an HTML password box. For example −

<form:password path = "password" />

It will render the following HTML content.

<input id = "password" name = "password" type = "password" value = ""/>

users.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>
      <h2>Submitted User Information</h2>
      <table>
         <tr>
            <td>Username</td>
            <td>${username}</td>
         </tr>
         <tr>
            <td>Password</td>
            <td>${password}</td>
         </tr>
      </table>
   </body>
</html>

Once we are done with creating source and configuration files, export the application. Right click on your application, use Export → WAR File option and save your HelloWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Try a URL –http://localhost:8080/HelloWeb/user and we will see the following screen if everything is fine with the Spring Web Application.

Spring Password Form

After submitting the required information, click on the submit button to submit the form. We will see the following screen, if everything is fine with the Spring Web Application.

Spring Password Form Result

Spring MVC - TextArea Example

The following example explains how to use TextArea in forms using the Spring Web MVC framework. To begin with, let us have a working Eclipse IDE in place and follow the subsequent steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name HelloWeb under a package com.tutorialspoint as explained in the Spring MVC − Hello World chapter.
2 Create Java classes User, UserController under the com.tutorialspointpackage.
3 Create view files user.jsp, users.jsp under jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

User.java

package com.tutorialspoint;

public class User {

   private String username;
   private String password;
   private String address;

   public String getUsername() {
      return username;
   }
   public void setUsername(String username) {
      this.username = username;
   }

   public String getPassword() {
      return password;
   }
   public void setPassword(String password) {
      this.password = password;
   }
   public String getAddress() {
      return address;
   }
   public void setAddress(String address) {
      this.address = address;
   }
}

UserController.java

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.ui.ModelMap;

@Controller
public class UserController {

   @RequestMapping(value = "/user", method = RequestMethod.GET)
   public ModelAndView user() {
      return new ModelAndView("user", "command", new User());
   }

   @RequestMapping(value = "/addUser", method = RequestMethod.POST)
   public String addUser(@ModelAttribute("SpringWeb")User user,
      ModelMap model) {
      model.addAttribute("username", user.getUsername());
      model.addAttribute("password", user.getPassword());
      model.addAttribute("address", user.getAddress());

      return "users";
   }
}

Here, for the first service method user(), we have passed a blank User object in the ModelAndView object with name "command", because the spring framework expects an object with name "command", if you are using <form:form> tags in your JSP file. So, when the user() method is called, it returns the user.jsp view.

The second service method addUser() will be called against a POST method on the HelloWeb/addUser URL. You will prepare your model object based on the submitted information. Finally, the "users" view will be returned from the service method, which will result in rendering the users.jsp.

user.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

   <h2>User Information</h2>
   <form:form method = "POST" action = "/HelloWeb/addUser">
      <table>
         <tr>
            <td><form:label path = "username">User Name</form:label></td>
            <td><form:input path = "username" /></td>
         </tr>
         <tr>
            <td><form:label path = "password">Age</form:label></td>
            <td><form:password path = "password" /></td>
         </tr>
         <tr>
            <td><form:label path = "address">Address</form:label></td>
            <td><form:textarea path = "address" rows = "5" cols = "30" /></td>
         </tr>
         <tr>
            <td colspan = "2">
               <input type = "submit" value = "Submit"/>
            </td>
         </tr>
      </table>
   </form:form>
   </body>
</html>

Here, we are using <form:textarea /> tag to render a HTML textarea box. For example −

<form:textarea path = "address" rows = "5" cols = "30" />

It will render the following HTML content.

<textarea id = "address" name = "address" rows = "5" cols = "30"></textarea>

users.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>Submitted User Information</h2>
      <table>
         <tr>
            <td>Username</td>
            <td>${username}</td>
         </tr>
         <tr>
            <td>Password</td>
            <td>${password}</td>
         </tr>
         <tr>
            <td>Address</td>
            <td>${address}</td>
         </tr>
      </table>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save your HelloWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from webapps folder using a standard browser. Try a URL –http://localhost:8080/HelloWeb/user and we will see the following screen if everything is fine with the Spring Web Application.

Spring TextArea Form

After submitting the required information, click on the submit button to submit the form. We will see the following screen, if everything is fine with the Spring Web Application.

Spring TextArea Form Result

Spring MVC - Checkbox Example

The following example describes how to use a Single Checkbox in forms using the Spring Web MVC framework. To start with, let us have a working Eclipse IDE in place and consider the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name HelloWeb under a package com.tutorialspointas explained in the Spring MVC - Hello World Example chapter.
2 Create Java classes User, UserController under the com.tutorialspointpackage.
3 Create a view files user.jsp, users.jsp under jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

User.java

package com.tutorialspoint;

public class User {

   private String username;
   private String password;
   private String address;
   private boolean receivePaper;

   public String getUsername() {
      return username;
   }
   public void setUsername(String username) {
      this.username = username;
   }

   public String getPassword() {
      return password;
   }
   public void setPassword(String password) {
      this.password = password;
   }
   public String getAddress() {
      return address;
   }
   public void setAddress(String address) {
      this.address = address;
   }
   public boolean isReceivePaper() {
      return receivePaper;
   }
   public void setReceivePaper(boolean receivePaper) {
      this.receivePaper = receivePaper;
   }
}

UserController.java

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.ui.ModelMap;

@Controller
public class UserController {

   @RequestMapping(value = "/user", method = RequestMethod.GET)
   public ModelAndView user() {
      return new ModelAndView("user", "command", new User());
   }

   @RequestMapping(value = "/addUser", method = RequestMethod.POST)
   public String addUser(@ModelAttribute("SpringWeb")User user,
      ModelMap model) {
      model.addAttribute("username", user.getUsername());
      model.addAttribute("password", user.getPassword());
      model.addAttribute("address", user.getAddress());
      model.addAttribute("receivePaper", user.isReceivePaper());
      return "users";
   }
}

Here, for the first service method user(), we have passed a blank User object in the ModelAndView object with name "command", because the spring framework expects an object with name "command", if you are using <form:form> tags in your JSP file. So, when the user() method is called it returns the user.jsp view.

The second service method addUser() will be called against a POST method on the HelloWeb/addUser URL. You will prepare your model object based on the submitted information. Finally, the "users" view will be returned from the service method, which will result in rendering the users.jsp.

user.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>User Information</h2>
      <form:form method = "POST" action = "/HelloWeb/addUser">
         <table>
            <tr>
               <td><form:label path = "username">User Name</form:label></td>
               <td><form:input path = "username" /></td>
            </tr>
            <tr>
               <td><form:label path = "password">Age</form:label></td>
               <td><form:password path = "password" /></td>
            </tr>
            <tr>
               <td><form:label path = "address">Address</form:label></td>
               <td><form:textarea path = "address" rows = "5" cols = "30" /></td>
            </tr>
            <tr>
               <td><form:label path = "receivePaper">Subscribe Newsletter</form:label></td>
               <td><form:checkbox path = "receivePaper" /></td>
            </tr>
            <tr>
               <td colspan = "2">
                  <input type = "submit" value = "Submit"/>
               </td>
            </tr>
         </table>
      </form:form>
   </body>
</html>

Here, we are using <form:checkboxes /> tag to render an HTML checkbox box.

For example −

<form:checkbox path="receivePaper" />

It will render following HTML content.

<input id="receivePaper1" name = "receivePaper" type = "checkbox" value = "true"/>
<input type = "hidden" name = "_receivePaper" value = "on"/>

users.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>Submitted User Information</h2>
      <table>
         <tr>
            <td>Username</td>
            <td>${username}</td>
         </tr>
         <tr>
            <td>Password</td>
            <td>${password}</td>
         </tr>
         <tr>
            <td>Address</td>
            <td>${address}</td>
         </tr>
         <tr>
            <td>Subscribed to Newsletter</td>
            <td>${receivePaper}</td>
         </tr>
      </table>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save your HelloWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from webapps folder using a standard browser. Try a URL – http://localhost:8080/HelloWeb/user and we will see the following screen if everything is fine with the Spring Web Application.

Spring Checkbox Form

After submitting the required information, click on the submit button to submit the form. We will see the following screen if everything is fine with the Spring Web Application.

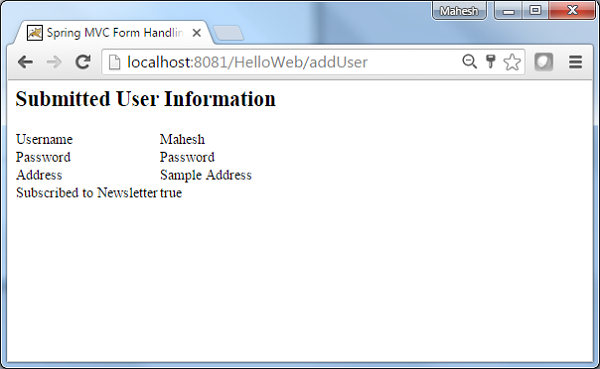

Spring Checkbox Form Result

Spring MVC - Checkboxes Example

The following example explains how to use Multiple Checkboxes in forms using the Spring Web MVC framework. To start with, let us have a working Eclipse IDE in place and stick to the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name HelloWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes User, UserController under the com.tutorialspointpackage.
3 Create view files user.jsp, users.jsp under the jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

User.java

package com.tutorialspoint;

public class User {

   private String username;
   private String password;
   private String address;
   private boolean receivePaper;
   private String [] favoriteFrameworks;

   public String getUsername() {
      return username;
   }
   public void setUsername(String username) {
      this.username = username;
   }

   public String getPassword() {
      return password;
   }
   public void setPassword(String password) {
      this.password = password;
   }
   public String getAddress() {
      return address;
   }
   public void setAddress(String address) {
      this.address = address;
   }
   public boolean isReceivePaper() {
      return receivePaper;
   }
   public void setReceivePaper(boolean receivePaper) {
      this.receivePaper = receivePaper;
   }
   public String[] getFavoriteFrameworks() {
      return favoriteFrameworks;
   }
   public void setFavoriteFrameworks(String[] favoriteFrameworks) {
      this.favoriteFrameworks = favoriteFrameworks;
   }
}

UserController.java

package com.tutorialspoint;

import java.util.ArrayList;
import java.util.List;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.ui.ModelMap;

@Controller
public class UserController {

   @RequestMapping(value = "/user", method = RequestMethod.GET)
   public ModelAndView user() {
      User user = new User();
	  user.setFavoriteFrameworks((new String []{"Spring MVC","Struts 2"}));
	  ModelAndView modelAndView = new ModelAndView("user", "command", user);
	  return modelAndView;
   }

   @RequestMapping(value = "/addUser", method = RequestMethod.POST)
   public String addUser(@ModelAttribute("SpringWeb")User user,
      ModelMap model) {
      model.addAttribute("username", user.getUsername());
      model.addAttribute("password", user.getPassword());
      model.addAttribute("address", user.getAddress());
      model.addAttribute("receivePaper", user.isReceivePaper());
	  model.addAttribute("favoriteFrameworks", user.getFavoriteFrameworks());
      return "users";
   }

   @ModelAttribute("webFrameworkList")
   public List<String> getWebFrameworkList() {
      List<String> webFrameworkList = new ArrayList<String>();
      webFrameworkList.add("Spring MVC");
      webFrameworkList.add("Struts 1");
      webFrameworkList.add("Struts 2");
      webFrameworkList.add("Apache Wicket");
      return webFrameworkList;
   }
}

Here, for the first service method user(), we have passed a blank User object in the ModelAndView object with name "command", because the spring framework expects an object with name "command", if you are using <form:form> tags in your JSP file. So, when the user() method is called, it returns the user.jsp view.

The second service method addUser() will be called against a POST method on the HelloWeb/addUser URL. You will prepare your model object based on the submitted information. Finally, the "users" view will be returned from the service method, which will result in rendering the users.jsp

user.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>User Information</h2>
      <form:form method = "POST" action = "/HelloWeb/addUser">
         <table>
            <tr>
               <td><form:label path = "username">User Name</form:label></td>
               <td><form:input path = "username" /></td>
            </tr>
            <tr>
               <td><form:label path = "password">Age</form:label></td>
               <td><form:password path = "password" /></td>
            </tr>
            <tr>
               <td><form:label path = "address">Address</form:label></td>
               <td><form:textarea path = "address" rows = "5" cols = "30" /></td>
            </tr>
            <tr>
               <td><form:label path = "receivePaper">Subscribe Newsletter</form:label></td>
               <td><form:checkbox path = "receivePaper" /></td>
            </tr>
            <tr>
               <td><form:label path = "favoriteFrameworks">Favorite Web Frameworks</form:label></td>
               <td><form:checkboxes items = "${webFrameworkList}" path = "favoriteFrameworks" /></td>
            </tr>
            <tr>
               <td colspan = "2">
                  <input type = "submit" value = "Submit"/>
               </td>
            </tr>
         </table>
      </form:form>
   </body>
</html>

Here, we are using <form:checkboxes /> tag to render HTML checkboxes.

<form:checkboxes items = "${webFrameworkList}" path = "favoriteFrameworks" />

It will render following HTML content.

<span>
   <input id = "favoriteFrameworks1" name = "favoriteFrameworks" type = "checkbox" value = "Spring MVC" checked = "checked"/>
   <label for = "favoriteFrameworks1">Spring MVC</label>
</span>
<span>
   <input id = "favoriteFrameworks2" name = "favoriteFrameworks" type = "checkbox" value = "Struts 1"/>
   <label for = "favoriteFrameworks2">Struts 1</label>
</span>
<span>
   <input id = "favoriteFrameworks3" name = "favoriteFrameworks" type = "checkbox" value = "Struts 2" checked = "checked"/>
   <label for = "favoriteFrameworks3">Struts 2</label>
</span>
<span>
   <input id = "favoriteFrameworks4" name = "favoriteFrameworks" type = "checkbox" value = "Apache Wicket"/>
   <label for = "favoriteFrameworks4">Apache Wicket</label>
</span>
<input type = "hidden" name = "_favoriteFrameworks" value = "on"/>

users.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>Submitted User Information</h2>
      <table>
         <tr>
            <td>Username</td>
            <td>${username}</td>
         </tr>
         <tr>
            <td>Password</td>
            <td>${password}</td>
         </tr>
         <tr>
            <td>Address</td>
            <td>${address}</td>
         </tr>
         <tr>
            <td>Subscribed to Newsletter</td>
            <td>${receivePaper}</td>
         </tr>
         <tr>
            <td>Favorite Web Frameworks</td>
            <td> <% String[] favoriteFrameworks = (String[])request.getAttribute("favoriteFrameworks");
            for(String framework: favoriteFrameworks) {
               out.println(framework);
            }
            %></td>
         </tr>
      </table>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save your HelloWeb.war file in Tomcat's webapps folder.

Now, start the Tomcat server and make sure you are able to access other webpages from webapps folder using a standard browser. Try a URL http://localhost:8080/HelloWeb/user and we will see the following screen if everything is fine with the Spring Web Application.

Spring Checkboxes Form

After submitting the required information, click on the submit button to submit the form. We will see the following screen, if everything is fine with your Spring Web Application.

Spring Checkboxes Form Result

Spring MVC - RadioButton Example

The following example show how to use RadioButton in forms using the Spring Web MVC framework. To start with it, let us have a working Eclipse IDE in place and stick to the following steps to develop a Dynamic Form based Web Application using Spring Web Framework −

Step Description
1 Create a project with a name HelloWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes User, UserController under the com.tutorialspointpackage.
3 Create view files user.jsp, users.jsp under the jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

User.java

package com.tutorialspoint;

public class User {

   private String username;
   private String password;
   private String address;
   private boolean receivePaper;
   private String [] favoriteFrameworks;
   private String gender;

   public String getUsername() {
      return username;
   }
   public void setUsername(String username) {
      this.username = username;
   }

   public String getPassword() {
      return password;
   }
   public void setPassword(String password) {
      this.password = password;
   }
   public String getAddress() {
      return address;
   }
   public void setAddress(String address) {
      this.address = address;
   }
   public boolean isReceivePaper() {
      return receivePaper;
   }
   public void setReceivePaper(boolean receivePaper) {
      this.receivePaper = receivePaper;
   }
   public String[] getFavoriteFrameworks() {
      return favoriteFrameworks;
   }
   public void setFavoriteFrameworks(String[] favoriteFrameworks) {
      this.favoriteFrameworks = favoriteFrameworks;
   }
   public String getGender() {
      return gender;
   }
   public void setGender(String gender) {
      this.gender = gender;
   }
}

UserController.java

package com.tutorialspoint;

import java.util.ArrayList;
import java.util.List;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.ui.ModelMap;

@Controller
public class UserController {

   @RequestMapping(value = "/user", method = RequestMethod.GET)
   public ModelAndView user() {
      User user = new User();
	  user.setFavoriteFrameworks((new String []{"Spring MVC","Struts 2"}));
      user.setGender("M");
	  ModelAndView modelAndView = new ModelAndView("user", "command", user);
	  return modelAndView;
   }

   @RequestMapping(value = "/addUser", method = RequestMethod.POST)
   public String addUser(@ModelAttribute("SpringWeb")User user,
      ModelMap model) {
      model.addAttribute("username", user.getUsername());
      model.addAttribute("password", user.getPassword());
      model.addAttribute("address", user.getAddress());
      model.addAttribute("receivePaper", user.isReceivePaper());
	  model.addAttribute("favoriteFrameworks", user.getFavoriteFrameworks());
      model.addAttribute("gender", user.getGender());
      return "users";
   }

   @ModelAttribute("webFrameworkList")
   public List<String> getWebFrameworkList() {
      List<String> webFrameworkList = new ArrayList<String>();
      webFrameworkList.add("Spring MVC");
      webFrameworkList.add("Struts 1");
      webFrameworkList.add("Struts 2");
      webFrameworkList.add("Apache Wicket");
      return webFrameworkList;
   }
}

Here, the first service method user(), we have passed a blank User object in the ModelAndView object with name "command", because the spring framework expects an object with name "command", if you are using <form:form> tags in your JSP file. So, when the user() method is called, it returns the user.jsp view.

The second service method addUser() will be called against a POST method on the HelloWeb/addUser URL. You will prepare your model object based on the submitted information. Finally, the "users" view will be returned from the service method, which will result in rendering the users.jsp.

user.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>User Information</h2>
      <form:form method = "POST" action = "/HelloWeb/addUser">
         <table>
            <tr>
               <td><form:label path = "username">User Name</form:label></td>
               <td><form:input path = "username" /></td>
            </tr>
            <tr>
               <td><form:label path = "password">Age</form:label></td>
               <td><form:password path = "password" /></td>
            </tr>
            <tr>
               <td><form:label path = "address">Address</form:label></td>
               <td><form:textarea path = "address" rows = "5" cols = "30" /></td>
            </tr>
            <tr>
               <td><form:label path = "receivePaper">Subscribe Newsletter</form:label></td>
               <td><form:checkbox path = "receivePaper" /></td>
            </tr>
            <tr>
               <td><form:label path = "favoriteFrameworks">Favorite Web Frameworks</form:label></td>
               <td><form:checkboxes items = "${webFrameworkList}" path = "favoriteFrameworks" /></td>
            </tr>
            <tr>
               <td><form:label path = "gender">Gender</form:label></td>
               <td>
                  <form:radiobutton path = "gender" value = "M" label = "Male" />
                  <form:radiobutton path = "gender" value = "F" label = "Female" />
               </td>
            </tr>
            <tr>
               <td colspan = "2">
                  <input type = "submit" value = "Submit"/>
               </td>
            </tr>
         </table>
      </form:form>
   </body>
</html>

Here, we are using <form:radiobutton /> tag to render HTML radiobutton.

<form:radiobutton path = "gender" value = "M" label = "Male" />
<form:radiobutton path = "gender" value = "F" label = "Female" />

It will render following HTML content.

<input id = "gender1" name = "gender" type = "radio" value = "M" checked = "checked"/><label for = "gender1">Male</label>
<input id = "gender2" name = "gender" type = "radio" value = "F"/><label for = "gender2">Female</label>

users.jsp

<%@taglib uri="http://www.springframework.org/tags/form" prefix="form"%>
<html>
<head>
    <title>Spring MVC Form Handling</title>
</head>
   <body>

      <h2>Submitted User Information</h2>
      <table>
         <tr>
            <td>Username</td>
            <td>${username}</td>
         </tr>

         <tr>
            <td>Password</td>
            <td>${password}</td>
         </tr>

         <tr>
            <td>Address</td>
            <td>${address}</td>
         </tr>

         <tr>
            <td>Subscribed to Newsletter</td>
            <td>${receivePaper}</td>
         </tr>

         <tr>
            <td>Favorite Web Frameworks</td>
            <td> <% String[] favoriteFrameworks = (String[])request.getAttribute("favoriteFrameworks");
               for(String framework: favoriteFrameworks) {
                  out.println(framework);
               }
            %></td>
         </tr>

         <tr>
            <td>Gender</td>
            <td>${(gender=="M"? "Male" : "Female")}</td>
         </tr>
      </table>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the HelloWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from webapps folder using a standard browser. Try a URL – http://localhost:8080/HelloWeb/user and we will see the following screen, if everything is fine with your Spring Web Application.

Spring RadioButton Form

After submitting the required information, click on the submit button to submit the form. We will see the following screen, if everything is fine with the Spring Web Application.

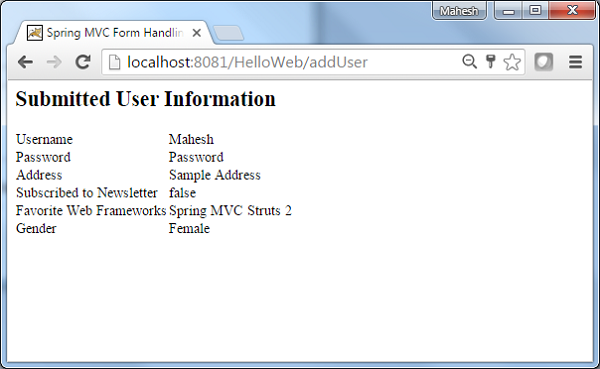

Spring RadioButton Form Result

Spring MVC - RadioButtons Example

The following example explains how to use RadioButtons in forms using the Spring Web MVC framework. To begin with, let us have a working Eclipse IDE in place and follow the subsequent steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name HelloWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes User, UserController under the com.tutorialspointpackage.
3 Create view files user.jsp, users.jsp under the jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

User.java

package com.tutorialspoint;

public class User {

   private String username;
   private String password;
   private String address;
   private boolean receivePaper;
   private String [] favoriteFrameworks;
   private String gender;
   private String favoriteNumber;

   public String getUsername() {
      return username;
   }
   public void setUsername(String username) {
      this.username = username;
   }

   public String getPassword() {
      return password;
   }
   public void setPassword(String password) {
      this.password = password;
   }
   public String getAddress() {
      return address;
   }
   public void setAddress(String address) {
      this.address = address;
   }
   public boolean isReceivePaper() {
      return receivePaper;
   }
   public void setReceivePaper(boolean receivePaper) {
      this.receivePaper = receivePaper;
   }
   public String[] getFavoriteFrameworks() {
      return favoriteFrameworks;
   }
   public void setFavoriteFrameworks(String[] favoriteFrameworks) {
      this.favoriteFrameworks = favoriteFrameworks;
   }
   public String getGender() {
      return gender;
   }
   public void setGender(String gender) {
      this.gender = gender;
   }
   public String getFavoriteNumber() {
      return favoriteNumber;
   }
   public void setFavoriteNumber(String favoriteNumber) {
      this.favoriteNumber = favoriteNumber;
   }
}

UserController.java

package com.tutorialspoint;

import java.util.ArrayList;
import java.util.List;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.ui.ModelMap;

@Controller
public class UserController {

   @RequestMapping(value = "/user", method = RequestMethod.GET)
   public ModelAndView user() {
      User user = new User();
	  user.setFavoriteFrameworks((new String []{"Spring MVC","Struts 2"}));
      user.setGender("M");
	  ModelAndView modelAndView = new ModelAndView("user", "command", user);
	  return modelAndView;
   }

   @RequestMapping(value = "/addUser", method = RequestMethod.POST)
   public String addUser(@ModelAttribute("SpringWeb")User user,
      ModelMap model) {
      model.addAttribute("username", user.getUsername());
      model.addAttribute("password", user.getPassword());
      model.addAttribute("address", user.getAddress());
      model.addAttribute("receivePaper", user.isReceivePaper());
      model.addAttribute("favoriteFrameworks", user.getFavoriteFrameworks());
      model.addAttribute("gender", user.getGender());
      model.addAttribute("favoriteNumber", user.getFavoriteNumber());
      return "users";
   }

   @ModelAttribute("webFrameworkList")
   public List<String> getWebFrameworkList() {
      List<String> webFrameworkList = new ArrayList<String>();
      webFrameworkList.add("Spring MVC");
      webFrameworkList.add("Struts 1");
      webFrameworkList.add("Struts 2");
      webFrameworkList.add("Apache Wicket");
      return webFrameworkList;
   }

   @ModelAttribute("numbersList")
   public List<String> getNumbersList() {
      List<String> numbersList = new ArrayList<String>();
      numbersList.add("1");
      numbersList.add("2");
      numbersList.add("3");
      numbersList.add("4");
      return numbersList;
   }
}

Here, for the first service method user(), we have passed a blank User object in the ModelAndView object with name "command", because the spring framework expects an object with name "command", if you are using <form:form> tags in your JSP file. So, when user() method is called, it returns the user.jsp view.

The second service method addUser() will be called against a POST method on the HelloWeb/addUser URL. You will prepare your model object based on the submitted information. Finally, the "users" view will be returned from the service method, which will result in rendering the users.jsp.

user.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>User Information</h2>
      <form:form method = "POST" action = "/HelloWeb/addUser">
         <table>
            <tr>
               <td><form:label path = "username">User Name</form:label></td>
               <td><form:input path = "username" /></td>
            </tr>
            <tr>
               <td><form:label path = "password">Age</form:label></td>
               <td><form:password path = "password" /></td>
            </tr>
            <tr>
               <td><form:label path = "address">Address</form:label></td>
               <td><form:textarea path = "address" rows = "5" cols = "30" /></td>
            </tr>
            <tr>
               <td><form:label path = "receivePaper">Subscribe Newsletter</form:label></td>
               <td><form:checkbox path = "receivePaper" /></td>
            </tr>
            <tr>
               <td><form:label path = "favoriteFrameworks">Favorite Web Frameworks</form:label></td>
               <td><form:checkboxes items = "${webFrameworkList}" path = "favoriteFrameworks" /></td>
            </tr>
            <tr>
               <td><form:label path = "gender">Gender</form:label></td>
               <td>
                  <form:radiobutton path = "gender" value = "M" label = "Male" />
                  <form:radiobutton path = "gender" value = "F" label = "Female" />
               </td>
            </tr>
            <tr>
               <td><form:label path = "favoriteNumber">Favorite Number</form:label></td>
               <td>
                  <form:radiobuttons path = "favoriteNumber" items = "${numbersList}" />
               </td>
            </tr>
            <tr>
               <td colspan = "2">
                  <input type = "submit" value = "Submit"/>
               </td>
            </tr>
         </table>
      </form:form>
   </body>
</html>

Here, we are using <form:radiobuttons />tag to render the HTML radiobuttons. For example −

<form:radiobuttons path = "favoriteNumber" items="${numbersList}" />

It will render the following HTML content.

<span>
   <input id = "favoriteNumber1" name = "favoriteNumber" type = "radio" value = "1"/>
   <label for = "favoriteNumber1">1</label>
</span>
<span>
   <input id = "favoriteNumber2" name = "favoriteNumber" type = "radio" value = "2"/>
   <label for = "favoriteNumber2">2</label>
</span>
<span>
   <input id = "favoriteNumber3" name = "favoriteNumber" type = "radio" value = "3"/>
   <label for = "favoriteNumber3">3</label>
</span>
<span>
   <input id = "favoriteNumber4" name = "favoriteNumber" type = "radio" value = "4"/>
   <label for = "favoriteNumber4">4</label>
</span>

users.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>
      <h2>Submitted User Information</h2>
      <table>
         <tr>
            <td>Username</td>
            <td>${username}</td>
         </tr>
         <tr>
            <td>Password</td>
            <td>${password}</td>
         </tr>
         <tr>
            <td>Address</td>
            <td>${address}</td>
         </tr>
         <tr>
            <td>Subscribed to Newsletter</td>
            <td>${receivePaper}</td>
         </tr>
         <tr>
            <td>Favorite Web Frameworks</td>
            <td> <% String[] favoriteFrameworks = (String[])request.getAttribute("favoriteFrameworks");
               for(String framework: favoriteFrameworks) {
                  out.println(framework);
               }
            %></td>
         </tr>
         <tr>
            <td>Gender</td>
            <td>${(gender=="M"? "Male" : "Female")}</td>
         </tr>
         <tr>
            <td>Favourite Number</td>
            <td>${favoriteNumber}</td>
         </tr>
      </table>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the HelloWeb.war file in Tomcat's webapps folder.

Now, start the Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Try the following URL – http://localhost:8080/HelloWeb/user and we will see the following screen, if everything is fine with the Spring Web Application.

Spring RadioButtons Form

After submitting the required information, click on the submit button to submit the form. We will see the following screen, if everything is fine with your Spring Web Application.

Spring RadioButtons Form Result

Spring MVC - Dropdown Example

The following example describes how to use Dropdown in forms using the Spring Web MVC framework. To start with, let us have a working Eclipse IDE in place and stick to the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name HelloWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes User, UserController under the com.tutorialspointpackage.
3 Create view files user.jsp, users.jsp under the jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

User.java

package com.tutorialspoint;

public class User {

   private String username;
   private String password;
   private String address;
   private boolean receivePaper;
   private String [] favoriteFrameworks;
   private String gender;
   private String favoriteNumber;
   private String country;

   public String getUsername() {
      return username;
   }
   public void setUsername(String username) {
      this.username = username;
   }

   public String getPassword() {
      return password;
   }
   public void setPassword(String password) {
      this.password = password;
   }
   public String getAddress() {
      return address;
   }
   public void setAddress(String address) {
      this.address = address;
   }
   public boolean isReceivePaper() {
      return receivePaper;
   }
   public void setReceivePaper(boolean receivePaper) {
      this.receivePaper = receivePaper;
   }
   public String[] getFavoriteFrameworks() {
      return favoriteFrameworks;
   }
   public void setFavoriteFrameworks(String[] favoriteFrameworks) {
      this.favoriteFrameworks = favoriteFrameworks;
   }
   public String getGender() {
      return gender;
   }
   public void setGender(String gender) {
      this.gender = gender;
   }
   public String getFavoriteNumber() {
      return favoriteNumber;
   }
   public void setFavoriteNumber(String favoriteNumber) {
      this.favoriteNumber = favoriteNumber;
   }
   public String getCountry() {
      return country;
   }
   public void setCountry(String country) {
      this.country = country;
   }
}

UserController.java

package com.tutorialspoint;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.ui.ModelMap;

@Controller
public class UserController {

   @RequestMapping(value = "/user", method = RequestMethod.GET)
   public ModelAndView user() {
      User user = new User();
	  user.setFavoriteFrameworks((new String []{"Spring MVC","Struts 2"}));
      user.setGender("M");
	  ModelAndView modelAndView = new ModelAndView("user", "command", user);
	  return modelAndView;
   }

   @RequestMapping(value = "/addUser", method = RequestMethod.POST)
   public String addUser(@ModelAttribute("SpringWeb")User user,
      ModelMap model) {
      model.addAttribute("username", user.getUsername());
      model.addAttribute("password", user.getPassword());
      model.addAttribute("address", user.getAddress());
      model.addAttribute("receivePaper", user.isReceivePaper());
	  model.addAttribute("favoriteFrameworks", user.getFavoriteFrameworks());
      model.addAttribute("gender", user.getGender());
      model.addAttribute("favoriteNumber", user.getFavoriteNumber());
      model.addAttribute("country", user.getCountry());
      return "users";
   }

   @ModelAttribute("webFrameworkList")
   public List<String> getWebFrameworkList() {
      List<String> webFrameworkList = new ArrayList<String>();
      webFrameworkList.add("Spring MVC");
      webFrameworkList.add("Struts 1");
      webFrameworkList.add("Struts 2");
      webFrameworkList.add("Apache Wicket");
      return webFrameworkList;
   }

   @ModelAttribute("numbersList")
   public List<String> getNumbersList() {
      List<String> numbersList = new ArrayList<String>();
      numbersList.add("1");
      numbersList.add("2");
      numbersList.add("3");
      numbersList.add("4");
      return numbersList;
   }

   @ModelAttribute("countryList")
   public Map<String, String> getCountryList() {
      Map<String, String> countryList = new HashMap<String, String>();
      countryList.put("US", "United States");
      countryList.put("CH", "China");
      countryList.put("SG", "Singapore");
      countryList.put("MY", "Malaysia");
      return countryList;
   }
}

Here, for the first service method user(), we have passed a blank User object in the ModelAndView object with name "command", because the spring framework expects an object with name "command", if you are using <form:form> tags in your JSP file. So when the user() method is called, it returns the user.jsp view.

The second service method addUser() will be called against a POST method on the HelloWeb/addUser URL. You will prepare your model object based on the submitted information. Finally, the "users" view will be returned from the service method, which will result in rendering the users.jsp.

user.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

   <h2>User Information</h2>
      <form:form method = "POST" action = "/HelloWeb/addUser">
         <table>
            <tr>
               <td><form:label path = "username">User Name</form:label></td>
               <td><form:input path = "username" /></td>
            </tr>
            <tr>
               <td><form:label path = "password">Age</form:label></td>
               <td><form:password path = "password" /></td>
            </tr>
            <tr>
               <td><form:label path = "address">Address</form:label></td>
               <td><form:textarea path = "address" rows = "5" cols = "30" /></td>
            </tr>
            <tr>
               <td><form:label path = "receivePaper">Subscribe Newsletter</form:label></td>
               <td><form:checkbox path = "receivePaper" /></td>
            </tr>
            <tr>
               <td><form:label path = "favoriteFrameworks">Favorite Web Frameworks</form:label></td>
               <td><form:checkboxes items = "${webFrameworkList}" path = "favoriteFrameworks" /></td>
            </tr>
            <tr>
               <td><form:label path = "gender">Gender</form:label></td>
               <td>
                  <form:radiobutton path = "gender" value = "M" label = "Male" />
                  <form:radiobutton path = "gender" value = "F" label = "Female" />
               </td>
            </tr>
            <tr>
               <td><form:label path = "favoriteNumber">Favorite Number</form:label></td>
               <td>
                  <form:radiobuttons path = "favoriteNumber" items = "${numbersList}" />
               </td>
            </tr>
            <tr>
               <td><form:label path = "country">Country</form:label></td>
               <td>
                  <form:select path = "country">
                     <form:option value = "NONE" label = "Select"/>
                     <form:options items = "${countryList}" />
                  </form:select>
               </td>
            </tr>
            <tr>
               <td colspan = "2">
                  <input type = "submit" value = "Submit"/>
               </td>
            </tr>
         </table>
      </form:form>
   </body>
</html>

Here, we are using <form:select /> , <form:option /> and <form:options /> tags to render HTML select. For example −

<form:select path = "country">
   <form:option value = "NONE" label = "Select"/>
   <form:options items = "${countryList}" />
</form:select>

It will render following HTML content.

<select id = "country" name = "country">
   <option value = "NONE">Select</option>
   <option value = "US">United States</option>
   <option value = "CH">China</option>
   <option value = "MY">Malaysia</option>
   <option value = "SG">Singapore</option>
</select>

users.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>
      <h2>Submitted User Information</h2>
      <table>
         <tr>
            <td>Username</td>
            <td>${username}</td>
         </tr>
         <tr>
            <td>Password</td>
            <td>${password}</td>
         </tr>
         <tr>
            <td>Address</td>
            <td>${address}</td>
         </tr>
         <tr>
            <td>Subscribed to Newsletter</td>
            <td>${receivePaper}</td>
         </tr>
         <tr>
            <td>Favorite Web Frameworks</td>
            <td> <% String[] favoriteFrameworks = (String[])request.getAttribute("favoriteFrameworks");
               for(String framework: favoriteFrameworks) {
                  out.println(framework);
               }
            %></td>
         </tr>
         <tr>
            <td>Gender</td>
            <td>${(gender=="M"? "Male" : "Female")}</td>
         </tr>
         <tr>
            <td>Favourite Number</td>
            <td>${favoriteNumber}</td>
         </tr>
         <tr>
            <td>Country</td>
            <td>${country}</td>
         </tr>
      </table>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use the Export → WAR File option and save your HelloWeb.war file in Tomcat's webapps folder.

Now, start the Tomcat server and make sure you are able to access other webpages from webapps folder using a standard browser. Try a URL – http://localhost:8080/HelloWeb/user and we will see the following screen, if everything is fine with the Spring Web Application.

Spring dropdown Form

After submitting the required information, click on the submit button to submit the form. You should see the following screen, if everything is fine with your Spring Web Application.

Spring dropdown Form Result

Spring MVC - Listbox Example

The following example shows how to use Listbox in forms using the Spring Web MVC framework. To begin with, let us have a working Eclipse IDE in place and follow the subsequent steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name HelloWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes User, UserController under the com.tutorialspointpackage.
3 Create view files user.jsp, users.jsp under the jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

User.java

package com.tutorialspoint;

public class User {

   private String username;
   private String password;
   private String address;
   private boolean receivePaper;
   private String [] favoriteFrameworks;
   private String gender;
   private String favoriteNumber;
   private String country;
   private String [] skills;

   public String getUsername() {
      return username;
   }
   public void setUsername(String username) {
      this.username = username;
   }

   public String getPassword() {
      return password;
   }
   public void setPassword(String password) {
      this.password = password;
   }
   public String getAddress() {
      return address;
   }
   public void setAddress(String address) {
      this.address = address;
   }
   public boolean isReceivePaper() {
      return receivePaper;
   }
   public void setReceivePaper(boolean receivePaper) {
      this.receivePaper = receivePaper;
   }
   public String[] getFavoriteFrameworks() {
      return favoriteFrameworks;
   }
   public void setFavoriteFrameworks(String[] favoriteFrameworks) {
      this.favoriteFrameworks = favoriteFrameworks;
   }
   public String getGender() {
      return gender;
   }
   public void setGender(String gender) {
      this.gender = gender;
   }
   public String getFavoriteNumber() {
      return favoriteNumber;
   }
   public void setFavoriteNumber(String favoriteNumber) {
      this.favoriteNumber = favoriteNumber;
   }
   public String getCountry() {
      return country;
   }
   public void setCountry(String country) {
      this.country = country;
   }
   public String[] getSkills() {
      return skills;
   }
   public void setSkills(String[] skills) {
      this.skills = skills;
   }
}

UserController.java

package com.tutorialspoint;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.ui.ModelMap;

@Controller
public class UserController {

   @RequestMapping(value = "/user", method = RequestMethod.GET)
   public ModelAndView user() {
      User user = new User();
	  user.setFavoriteFrameworks((new String []{"Spring MVC","Struts 2"}));
      user.setGender("M");
	  ModelAndView modelAndView = new ModelAndView("user", "command", user);
	  return modelAndView;
   }

   @RequestMapping(value = "/addUser", method = RequestMethod.POST)
   public String addUser(@ModelAttribute("SpringWeb")User user,
      ModelMap model) {
      model.addAttribute("username", user.getUsername());
      model.addAttribute("password", user.getPassword());
      model.addAttribute("address", user.getAddress());
      model.addAttribute("receivePaper", user.isReceivePaper());
	  model.addAttribute("favoriteFrameworks", user.getFavoriteFrameworks());
      model.addAttribute("gender", user.getGender());
      model.addAttribute("favoriteNumber", user.getFavoriteNumber());
      model.addAttribute("country", user.getCountry());
      model.addAttribute("skills", user.getSkills());
      return "users";
   }

   @ModelAttribute("webFrameworkList")
   public List<String> getWebFrameworkList() {
      List<String> webFrameworkList = new ArrayList<String>();
      webFrameworkList.add("Spring MVC");
      webFrameworkList.add("Struts 1");
      webFrameworkList.add("Struts 2");
      webFrameworkList.add("Apache Wicket");
      return webFrameworkList;
   }

   @ModelAttribute("numbersList")
   public List<String> getNumbersList() {
      List<String> numbersList = new ArrayList<String>();
      numbersList.add("1");
      numbersList.add("2");
      numbersList.add("3");
      numbersList.add("4");
      return numbersList;
   }

   @ModelAttribute("countryList")
   public Map<String, String> getCountryList() {
      Map<String, String> countryList = new HashMap<String, String>();
      countryList.put("US", "United States");
      countryList.put("CH", "China");
      countryList.put("SG", "Singapore");
      countryList.put("MY", "Malaysia");
      return countryList;
   }

   @ModelAttribute("skillsList")
   public Map<String, String> getSkillsList() {
      Map<String, String> skillList = new HashMap<String, String>();
      skillList.put("Hibernate", "Hibernate");
      skillList.put("Spring", "Spring");
      skillList.put("Apache Wicket", "Apache Wicket");
      skillList.put("Struts", "Struts");
      return skillList;
   }
}

Here, for the first service method user(), we have passed a blank User object in the ModelAndView object with name "command", because the spring framework expects an object with name "command", if you are using <form:form> tags in your JSP file. So, when the user() method is called, it returns the user.jsp view.

The second service method addUser() will be called against a POST method on the HelloWeb/addUser URL. You will prepare your model object based on the submitted information. Finally, the "users" view will be returned from the service method, which will result in rendering the users.jsp.

user.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>User Information</h2>
      <form:form method = "POST" action = "/HelloWeb/addUser">
         <table>
            <tr>
               <td><form:label path = "username">User Name</form:label></td>
               <td><form:input path = "username" /></td>
            </tr>
            <tr>
               <td><form:label path = "password">Age</form:label></td>
               <td><form:password path = "password" /></td>
            </tr>
            <tr>
               <td><form:label path = "address">Address</form:label></td>
               <td><form:textarea path = "address" rows = "5" cols = "30" /></td>
            </tr>
            <tr>
               <td><form:label path = "receivePaper">Subscribe Newsletter</form:label></td>
               <td><form:checkbox path = "receivePaper" /></td>
            </tr>
            <tr>
               <td><form:label path = "favoriteFrameworks">Favorite Web Frameworks</form:label></td>
               <td><form:checkboxes items = "${webFrameworkList}" path = "favoriteFrameworks" /></td>
            </tr>
            <tr>
               <td><form:label path = "gender">Gender</form:label></td>
               <td>
                  <form:radiobutton path = "gender" value = "M" label = "Male" />
                  <form:radiobutton path = "gender" value = "F" label = "Female" />
               </td>
            </tr>
            <tr>
               <td><form:label path = "favoriteNumber">Favorite Number</form:label></td>
               <td>
                  <form:radiobuttons path = "favoriteNumber" items = "${numbersList}" />
               </td>
            </tr>
            <tr>
               <td><form:label path = "country">Country</form:label></td>
               <td>
                  <form:select path = "country">
                     <form:option value = "NONE" label = "Select"/>
                     <form:options items = "${countryList}" />
                  </form:select>
               </td>
            </tr>
            <tr>
               <td><form:label path = "skills">Skills</form:label></td>
               <td>
                  <form:select path = "skills" items = "${skillsList}"
                     multiple = "true" />
               </td>
            </tr>
            <tr>
               <td colspan = "2">
                  <input type = "submit" value = "Submit"/>
               </td>
            </tr>
         </table>
      </form:form>
   </body>
</html>

Here, we are using a <form:select /> tag , with the attribute multiple=true to render an HTML listbox. For example −

<form:select path = "skills" items = "${skillsList}" multiple = "true" />

It will render following HTML content.

<select id = "skills" name = "skills" multiple = "multiple">
   <option value = "Struts">Struts</option>
   <option value = "Hibernate">Hibernate</option>
   <option value = "Apache Wicket">Apache Wicket</option>
   <option value = "Spring">Spring</option>
</select>
<input type = "hidden" name = "_skills" value = "1"/>

users.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>Submitted User Information</h2>
      <table>
         <tr>
            <td>Username</td>
            <td>${username}</td>
         </tr>
         <tr>
            <td>Password</td>
            <td>${password}</td>
         </tr>
         <tr>
            <td>Address</td>
            <td>${address}</td>
         </tr>
         <tr>
            <td>Subscribed to Newsletter</td>
            <td>${receivePaper}</td>
         </tr>
         <tr>
            <td>Favorite Web Frameworks</td>
            <td> <% String[] favoriteFrameworks = (String[])request.getAttribute("favoriteFrameworks");
               for(String framework: favoriteFrameworks) {
                  out.println(framework);
               }
            %></td>
         </tr>
         <tr>
            <td>Gender</td>
            <td>${(gender=="M"? "Male" : "Female")}</td>
         </tr>
         <tr>
            <td>Favourite Number</td>
            <td>${favoriteNumber}</td>
         </tr>
         <tr>
            <td>Country</td>
            <td>${country}</td>
         </tr>
         <tr>
            <td>Skills</td>
            <td> <% String[] skills = (String[])request.getAttribute("skills");
            for(String skill: skills) {
               out.println(skill);
            }
            %></td>
         </tr>
      </table>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the HelloWeb.war file in Tomcat's webapps folder.

Now, start the Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Try a URL − http://localhost:8080/HelloWeb/user and we will see the following screen, if everything is fine with the Spring Web Application.

Spring listbox Form

After submitting the required information, click on the submit button to submit the form. You should see the following screen, if everything is fine with your Spring Web Application.

Spring listbox Form Result

Spring MVC - Hidden Field Example

The following example describes how to use a Hidden Field in forms using the Spring Web MVC framework. To start with, let us have a working Eclipse IDE in place and consider the following steps to develop a Dynamic Form based Web Application using Spring Web Framework.

Step Description
1 Create a project with a name HelloWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes Student, StudentController under the com.tutorialspoint package.
3 Create view files student.jsp, result.jsp under the jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

Student.java

package com.tutorialspoint;

public class Student {
   private Integer age;
   private String name;
   private Integer id;

   public void setAge(Integer age) {
      this.age = age;
   }
   public Integer getAge() {
      return age;
   }

   public void setName(String name) {
      this.name = name;
   }
   public String getName() {
      return name;
   }

   public void setId(Integer id) {
      this.id = id;
   }
   public Integer getId() {
      return id;
   }
}

StudentController.java

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.ui.ModelMap;

@Controller
public class StudentController {

   @RequestMapping(value = "/student", method = RequestMethod.GET)
   public ModelAndView student() {
      return new ModelAndView("student", "command", new Student());
   }

   @RequestMapping(value = "/addStudent", method = RequestMethod.POST)
   public String addStudent(@ModelAttribute("SpringWeb")Student student,
      ModelMap model) {
      model.addAttribute("name", student.getName());
      model.addAttribute("age", student.getAge());
      model.addAttribute("id", student.getId());

      return "result";
   }
}

Here, for the first service method student(), we have passed a blank Studentobject in the ModelAndView object with the name "command", because the spring framework expects an object with the name "command", if you are using <form:form> tags in your JSP file. So, when the student() method is called, it returns the student.jsp view.

The second service method addStudent() will be called against a POST method on the HelloWeb/addStudent URL. You will prepare your model object based on the submitted information. Finally, a "result" view will be returned from the service method, which will result in rendering result.jsp

student.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>Student Information</h2>
      <form:form method = "POST" action = "/HelloWeb/addStudent">
         <table>
            <tr>
              <td><form:label path = "name">Name</form:label></td>
              <td><form:input path = "name" /></td>
            </tr>
            <tr>
              <td><form:label path = "age">Age</form:label></td>
              <td><form:input path = "age" /></td>
            </tr>
            <tr>
              <td>< </td>
              <td><form:hidden path = "id" value = "1" /></td>
            </tr>
            <tr>
              <td colspan = "2">
                  <input type = "submit" value = "Submit"/>
              </td>
            </tr>
         </table>
      </form:form>
   </body>
</html>

Here, we are using the <form:hidden /> tag to render a HTML hidden field.

For example −

<form:hidden path = "id" value = "1"/>

It will render following HTML content.

<input id = "id" name = "id" type = "hidden" value = "1"/>

result.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>Submitted Student Information</h2>
      <table>
         <tr>
            <td>Name</td>
            <td>${name}</td>
         </tr>
         <tr>
            <td>Age</td>
            <td>${age}</td>
         </tr>
         <tr>
            <td>ID</td>
            <td>${id}</td>
         </tr>
      </table>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application and use Export → WAR File option and save your HelloWeb.war file in Tomcat's webapps folder.

Now start your Tomcat server and make sure you are able to access other webpages from webapps folder using a standard browser. Try a URL – http://localhost:8080/HelloWeb/student and we will see the following screen, if everything is fine with the Spring Web Application.

Spring Hidden Field

After submitting the required information, click on the submit button to submit the form. We will see the following screen, if everything is fine with your Spring Web Application.

Spring Hidden Field Result

Spring MVC - Error Handling Example

The following example shows how to use Error Handling and Validators in forms using the Spring Web MVC Framework. To start with, let us have a working Eclipse IDE in place and consider the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name HelloWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes Student, StudentController and StudentValidator under the com.tutorialspoint package.
3 Create view files addStudent.jsp, result.jsp under the jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

Student.java

package com.tutorialspoint;

public class Student {
   private Integer age;
   private String name;
   private Integer id;

   public void setAge(Integer age) {
      this.age = age;
   }
   public Integer getAge() {
      return age;
   }

   public void setName(String name) {
      this.name = name;
   }
   public String getName() {
      return name;
   }

   public void setId(Integer id) {
      this.id = id;
   }
   public Integer getId() {
      return id;
   }
}

StudentValidator.java

package com.tutorialspoint;

import org.springframework.validation.Errors;
import org.springframework.validation.ValidationUtils;
import org.springframework.validation.Validator;

public class StudentValidator implements Validator {

   @Override
   public boolean supports(Class<?> clazz) {
      return Student.class.isAssignableFrom(clazz);
   }

   @Override
   public void validate(Object target, Errors errors) {
      ValidationUtils.rejectIfEmptyOrWhitespace(errors,
         "name", "required.name","Field name is required.");
   }
}

StudentController.java

package com.tutorialspoint;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.validation.BindingResult;
import org.springframework.validation.Validator;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.WebDataBinder;
import org.springframework.web.bind.annotation.InitBinder;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;

@Controller
public class StudentController {

   @Autowired
   @Qualifier("studentValidator")
   private Validator validator;

   @InitBinder
   private void initBinder(WebDataBinder binder) {
      binder.setValidator(validator);
   }

   @RequestMapping(value = "/addStudent", method = RequestMethod.GET)
   public ModelAndView student() {
      return new ModelAndView("addStudent", "command", new Student());
   }

   @ModelAttribute("student")
   public Student createStudentModel() {
      return new Student();
   }

   @RequestMapping(value = "/addStudent", method = RequestMethod.POST)
   public String addStudent(@ModelAttribute("student") @Validated Student student,
      BindingResult bindingResult, Model model) {

      if (bindingResult.hasErrors()) {
         return "addStudent";
      }
      model.addAttribute("name", student.getName());
      model.addAttribute("age", student.getAge());
      model.addAttribute("id", student.getId());

      return "result";
   }
}

HelloWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <context:component-scan base-package = "com.tutorialspoint" />

   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/" />
      <property name = "suffix" value = ".jsp" />
   </bean>

   <bean id = "studentValidator" class = "com.tutorialspoint.StudentValidator" />
</beans>

Here, for the first service method student(), we have passed a blank Studentobject in the ModelAndView object with name "command", because the spring framework expects an object with name "command", if you are using <form:form> tags in your JSP file. So, when student() method is called, it returns addStudent.jsp view.

The second service method addStudent() will be called against a POST method on the HelloWeb/addStudent URL. You will prepare your model object based on the submitted information. Finally, a "result" view will be returned from the service method, which will result in rendering the result.jsp. In case there are errors generated using validator then same view "addStudent" is returned, Spring automatically injects error messages from BindingResult in view.

addStudent.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <style>
      .error {
         color: #ff0000;
      }

      .errorblock {
         color: #000;
         background-color: #ffEEEE;
         border: 3px solid #ff0000;
         padding: 8px;
         margin: 16px;
      }
   </style>

   <body>
      <h2>Student Information</h2>
      <form:form method = "POST" action = "/HelloWeb/addStudent" commandName = "student">
      <form:errors path = "*" cssClass = "errorblock" element = "div" />
         <table>
            <tr>
               <td><form:label path = "name">Name</form:label></td>
               <td><form:input path = "name" /></td>
               <td><form:errors path = "name" cssClass = "error" /></td>
            </tr>
            <tr>
               <td><form:label path = "age">Age</form:label></td>
               <td><form:input path = "age" /></td>
            </tr>
            <tr>
               <td><form:label path = "id">id</form:label></td>
               <td><form:input path = "id" /></td>
            </tr>
            <tr>
               <td colspan = "2">
               <input type = "submit" value = "Submit"/>
               </td>
            </tr>
         </table>
      </form:form>
   </body>
</html>

Here we are using <form:errors /> tag with path="*" to render error messages. For example

<form:errors path = "*" cssClass = "errorblock" element = "div" />

It will render the error messages for all input validations.

We are using <form:errors /> tag with path="name" to render error message for name field. For example

<form:errors path = "name" cssClass = "error" />

It will render error messages for the name field validations.

result.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>Submitted Student Information</h2>
      <table>
         <tr>
            <td>Name</td>
            <td>${name}</td>
         </tr>
         <tr>
            <td>Age</td>
            <td>${age}</td>
         </tr>
         <tr>
           <td>ID</td>
           <td>${id}</td>
         </tr>
      </table>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the HelloWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from webapps folder using a standard browser. Try a URL − http://localhost:8080/HelloWeb/addStudent and we will see the following screen, if everything is fine with the Spring Web Application.

Spring Validation

After submitting the required information, click on the submit button to submit the form. You should see the following screen, if everything is fine with the Spring Web Application.

Spring Validation Result

Spring MVC - File Upload Example

The following example shows how to use File Upload Control in forms using the Spring Web MVC framework. To start with, let us have a working Eclipse IDE in place and adhere to the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name HelloWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes FileModel, FileUploadController under the com.tutorialspoint package.
3 Create view files fileUpload.jsp, success.jsp under the jsp sub-folder.
4 Create a folder temp under the WebContent sub-folder.
5 Download Apache Commons FileUpload library commons-fileupload.jar and Apache Commons IO library commons-io.jar. Put them in your CLASSPATH.
6 The final step is to create the content of the source and configuration files and export the application as explained below.

FileModel.java

package com.tutorialspoint;

import org.springframework.web.multipart.MultipartFile;

public class FileModel {
   private MultipartFile file;

   public MultipartFile getFile() {
      return file;
   }

   public void setFile(MultipartFile file) {
      this.file = file;
   }
}

FileUploadController.java

package com.tutorialspoint;

import java.io.File;
import java.io.IOException;

import javax.servlet.ServletContext;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.ModelMap;
import org.springframework.util.FileCopyUtils;
import org.springframework.validation.BindingResult;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.multipart.MultipartFile;
import org.springframework.web.servlet.ModelAndView;

@Controller
public class FileUploadController {

   @Autowired
   ServletContext context;

   @RequestMapping(value = "/fileUploadPage", method = RequestMethod.GET)
   public ModelAndView fileUploadPage() {
      FileModel file = new FileModel();
      ModelAndView modelAndView = new ModelAndView("fileUpload", "command", file);
      return modelAndView;
   }

   @RequestMapping(value="/fileUploadPage", method = RequestMethod.POST)
   public String fileUpload(@Validated FileModel file, BindingResult result, ModelMap model) throws IOException {
      if (result.hasErrors()) {
         System.out.println("validation errors");
         return "fileUploadPage";
      } else {
         System.out.println("Fetching file");
         MultipartFile multipartFile = file.getFile();
         String uploadPath = context.getRealPath("") + File.separator + "temp" + File.separator;
         //Now do something with file...
         FileCopyUtils.copy(file.getFile().getBytes(), new File(uploadPath+file.getFile().getOriginalFilename()));
         String fileName = multipartFile.getOriginalFilename();
         model.addAttribute("fileName", fileName);
         return "success";
      }
   }
}

HelloWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <context:component-scan base-package = "com.tutorialspoint" />

   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/" />
      <property name = "suffix" value = ".jsp" />
   </bean>

   <bean id = "multipartResolver"
      class = "org.springframework.web.multipart.commons.CommonsMultipartResolver" />
</beans>

Here, for the first service method fileUploadPage(), we have passed a blank FileModel object in the ModelAndView object with name "command", because the spring framework expects an object with name "command", if you are using <form:form> tags in your JSP file. So, when fileUploadPage() method is called, it returns fileUpload.jsp view.

The second service method fileUpload() will be called against a POST method on the HelloWeb/fileUploadPage URL. You will prepare the file to be uploaded based on the submitted information. Finally, a "success" view will be returned from the service method, which will result in rendering success.jsp.

fileUpload.jsp

<%@ page contentType="text/html; charset = UTF-8" %>
<%@ taglib prefix = "form" uri = "http://www.springframework.org/tags/form"%>
<html>
   <head>
      <title>File Upload Example</title>
   </head>

   <body>
      <form:form method = "POST" modelAttribute = "fileUpload"
         enctype = "multipart/form-data">
         Please select a file to upload :
         <input type = "file" name = "file" />
         <input type = "submit" value = "upload" />
      </form:form>
   </body>
</html>

Here, we are using modelAttribute attribute with value="fileUpload" to map the file Upload control with the server model.

success.jsp

<%@ page contentType = "text/html; charset = UTF-8" %>
<html>
   <head>
      <title>File Upload Example</title>
   </head>
   <body>
      FileName :
      lt;b> ${fileName} </b> - Uploaded Successfully.
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the HelloWeb.war file in the Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Try a URL– http://localhost:8080/HelloWeb/fileUploadPage and we will see the following screen, if everything is fine with the Spring Web Application.

Spring File Upload

After submitting the required information, click on the submit button to submit the form. You should see the following screen, if everything is fine with the Spring Web Application.

Spring File Upload Result

Spring MVC - Bean Name Url Handler Mapping Example

The following example shows how to use Bean Name URL Handler Mapping using the Spring Web MVC Framework. The BeanNameUrlHandlerMapping class is the default handler mapping class, which maps the URL request(s) to the name of the beans mentioned in the configuration.

<beans>
   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/"/>
      <property name = "suffix" value = ".jsp"/>
   </bean>

   <bean class = "org.springframework.web.servlet.handler.BeanNameUrlHandlerMapping"/>

   <bean name = "/helloWorld.htm"
      class = "com.tutorialspoint.HelloController" />

   <bean name = "/hello*"
      class = "com.tutorialspoint.HelloController" />

   <bean name = "/welcome.htm"
      class = "com.tutorialspoint.WelcomeController"/>
</beans>

For example, using the above configuration, if URI

  • /helloWorld.htm or /hello{any letter}.htm is requested, DispatcherServlet will forward the request to the HelloController.

  • /welcome.htm is requested, DispatcherServlet will forward the request to the WelcomeController.

  • /welcome1.htm is requested, DispatcherServlet will not find any controller and server will throw 404 status error.

To start with, let us have a working Eclipse IDE in place and consider the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes HelloController, WelcomeController under the com.tutorialspoint package.
3 Create view files hello.jsp, welcome.jsp under the jsp sub-folder.
4 The final step is to create the content of all source and configuration files and export the application as explained below.

HelloController.java

package com.tutorialspoint;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.AbstractController;

public class HelloController extends AbstractController{

   @Override
   protected ModelAndView handleRequestInternal(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("hello");
      model.addObject("message", "Hello World!");
      return model;
   }
}

WelcomeController.java

package com.tutorialspoint;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.AbstractController;

public class WelcomeController extends AbstractController{

   @Override
   protected ModelAndView handleRequestInternal(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("welcome");
      model.addObject("message", "Welcome!");
      return model;
   }
}

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/"/>
      <property name = "suffix" value = ".jsp"/>
   </bean>

   <bean class = "org.springframework.web.servlet.handler.BeanNameUrlHandlerMapping"/>

   <bean name = "/helloWorld.htm"
      class = "com.tutorialspoint.HelloController" />

   <bean name = "/hello*"
      class = "com.tutorialspoint.HelloController" />

   <bean name = "/welcome.htm"
      class = "com.tutorialspoint.WelcomeController"/>
</beans>

hello.jsp

<%@ page contentType = "text/html; charset = UTF-8" %>
<html>
   <head>
      <title>Hello World</title>
   </head>
   <body>
      <h2>${message}</h2>
   </body>
</html>

welcome.jsp

<%@ page contentType = "text/html; charset = UTF-8" %>
<html>
   <head>
      <title>Welcome</title>
   </head>
   <body>
      <h2>${message}</h2>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the TestWeb.war file in the Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from the webapps folder by using a standard browser. Try a URL − http://localhost:8080/TestWeb/helloWorld.htm and we will see the following screen, if everything is fine with the Spring Web Application.

Spring Bean Name Url Handler Mapping 1

Try a URL − http://localhost:8080/TestWeb/hello.htm and we will see the following screen, if everything is fine with the Spring Web Application.

Spring Bean Name Url Handler Mapping 2

Try a URL http://localhost:8080/TestWeb/welcome.htm and we will see the following screen, if everything is fine with the Spring Web Application.

Spring Bean Name Url Handler Mapping 3

Try a URL http://localhost:8080/TestWeb/welcome1.htm and we will see the following screen, if everything is fine with the Spring Web Application.

Spring Bean Name Url Handler Mapping 4

Spring MVC - Controller Class Name Handler Mapping Example

The following example shows how to use the Controller Class Name Handler Mapping using the Spring Web MVC framework. The ControllerClassNameHandlerMapping class is the convention-based handler mapping class, which maps the URL request(s) to the name of the controllers mentioned in the configuration. This class takes the Controller names and converts them to lower case with a leading "/".

For example − HelloController maps to "/hello*" URL.

<beans>
   <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/"/>
      <property name = "suffix" value = ".jsp"/>
   </bean>

   <bean class = "org.springframework.web.servlet.mvc.support.ControllerClassNameHandlerMapping"/>

   <bean class = "com.tutorialspoint.HelloController" />

   <bean class = "com.tutorialspoint.WelcomeController"/>
</beans>

For example, using above configuration, if URI

  • /helloWorld.htm or /hello{any letter}.htm is requested, DispatcherServlet will forward the request to the HelloController.

  • /welcome.htm is requested, DispatcherServlet will forward the request to the WelcomeController.

  • /Welcome.htm is requested where W is capital cased, DispatcherServlet will not find any controller and the server will throw 404 status error.

To start with it, let us have a working Eclipse IDE in place and follow the subsequent steps to develop a Dynamic Form based Web Application using Spring Web Framework.

Step Description
1 Create a project with a name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes HelloController and WelcomeController under the com.tutorialspoint package.
3 Create view files hello.jsp, welcome.jsp under the jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

HelloController.java

package com.tutorialspoint;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.AbstractController;

public class HelloController extends AbstractController{

   @Override
   protected ModelAndView handleRequestInternal(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("hello");
      model.addObject("message", "Hello World!");
      return model;
   }
}

WelcomeController.java

package com.tutorialspoint;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.AbstractController;

public class WelcomeController extends AbstractController{

   @Override
   protected ModelAndView handleRequestInternal(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("welcome");
      model.addObject("message", "Welcome!");
      return model;
   }
}

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/"/>
      <property name = "suffix" value = ".jsp"/>
   </bean>

   <bean class = "org.springframework.web.servlet.mvc.support.ControllerClassNameHandlerMapping"/>

   <bean class = "com.tutorialspoint.HelloController" />

   <bean class = "com.tutorialspoint.WelcomeController"/>
</beans>

hello.jsp

<%@ page contentType="text/html; charset = UTF-8" %>
<html>
   <head>
      <title>Hello World</title>
   </head>
   <body>
      <h2>${message}</h2>
   </body>
</html>

welcome.jsp

<%@ page contentType = "text/html; charset=UTF-8" %>
<html>
   <head>
      <title>Welcome</title>
   </head>
   <body>
      <h2>${message}</h2>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on the application, use the Export → WAR File option and save the TestWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Try a URL − http://localhost:8080/TestWeb/helloWorld.htm and we will see the following screen, if everything is fine with the Spring Web Application.

Spring Controller Class Name Handler Mapping 1

Try a URL http://localhost:8080/TestWeb/hello.htm and we will see the following screen, if everything is fine with the Spring Web Application.

Spring Controller Class Name Handler Mapping 2

Try a URL http://localhost:8080/TestWeb/welcome.htm and we will see the following screen, if everything is fine with the Spring Web Application.

Spring Controller Class Name Handler Mapping 3

Try a URL http://localhost:8080/TestWeb/Welcome.htm and we will see the following screen, if everything is fine with the Spring Web Application.

Spring Controller Class Name Handler Mapping 4

Spring MVC - Simple Url Handler Mapping Example

The following example shows how to use Simple URL Handler Mapping using the Spring Web MVC framework. The SimpleUrlHandlerMapping class helps to explicitly-map URLs with their controllers respectively.

<beans>
   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/"/>
      <property name = "suffix" value = ".jsp"/>
   </bean>

   <bean class = "org.springframework.web.servlet.handler.SimpleUrlHandlerMapping">
      <property name = "mappings">
         <props>
            <prop key = "/welcome.htm">welcomeController</prop>
            <prop key = "/helloWorld.htm">helloController</prop>
         </props>
      </property>
   </bean>

   <bean id = "helloController" class = "com.tutorialspoint.HelloController" />

   <bean id = "welcomeController" class = "com.tutorialspoint.WelcomeController"/>
</beans>

For example, using above configuration, if URI

  • /helloWorld.htm is requested, DispatcherServlet will forward the request to the HelloController.

  • /welcome.htm is requested, DispatcherServlet will forward the request to the WelcomeController.

To start with, let us have a working Eclipse IDE in place and consider the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes HelloController and WelcomeController under the com.tutorialspoint package.
3 Create view files hello.jsp and welcome.jsp under the jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

HelloController.java

package com.tutorialspoint;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.AbstractController;

public class HelloController extends AbstractController{

   @Override
   protected ModelAndView handleRequestInternal(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("hello");
      model.addObject("message", "Hello World!");
      return model;
   }
}

WelcomeController.java

package com.tutorialspoint;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.AbstractController;

public class WelcomeController extends AbstractController{

   @Override
   protected ModelAndView handleRequestInternal(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("welcome");
      model.addObject("message", "Welcome!");
      return model;
   }
}

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/"/>
      <property name = "suffix" value = ".jsp"/>
   </bean>

   <bean class = "org.springframework.web.servlet.handler.SimpleUrlHandlerMapping">
      <property name = "mappings">
         <props>
            <prop key = "/welcome.htm">welcomeController</prop>
            <prop key = "/helloWorld.htm">helloController</prop>
         </props>
      </property>
   </bean>

   <bean id = "helloController" class = "com.tutorialspoint.HelloController" />

   <bean id = "welcomeController" class = "com.tutorialspoint.WelcomeController"/>
</beans>

hello.jsp

<%@ page contentType = "text/html; charset = UTF-8" %>
<html>
   <head>
      <title>Hello World</title>
   </head>
   <body>
      <h2>${message}</h2>
   </body>
</html>

welcome.jsp

<%@ page contentType = "text/html; charset = UTF-8" %>
<html>
   <head>
      <title>Welcome</title>
   </head>
   <body>
      <h2>${message}</h2>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use the Export → WAR File option and save your TestWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from the webapps folder by using a standard browser. Try a URL − http://localhost:8080/TestWeb/helloWorld.htm and we will see the following screen, if everything is fine with the Spring Web Application.

Spring Controller Class Name Handler Mapping 1

Try a URL http://localhost:8080/TestWeb/welcome.htm and you should see the following result if everything is fine with your Spring Web Application.

Spring Controller Class Name Handler Mapping 2

Spring MVC - Multi Action Controller Example

The following example shows how to use the Multi Action Controller using the Spring Web MVC framework. The MultiActionController class helps to map multiple URLs with their methods in a single controller respectively.

package com.tutorialspoint;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.multiaction.MultiActionController;

public class UserController extends MultiActionController{

   public ModelAndView home(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("home");
      model.addObject("message", "Home");
      return model;
   }

   public ModelAndView add(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Add");
      return model;
   }

   public ModelAndView remove(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Remove");
      return model;
   }
}
<bean class = "org.springframework.web.servlet.handler.BeanNameUrlHandlerMapping"/>
<bean name = "/home.htm" class = "com.tutorialspoint.UserController" />
<bean name = "/user/*.htm" class = "com.tutorialspoint.UserController" />

For example, using the above configuration, if URI −

  • /home.htm is requested, DispatcherServlet will forward the request to the UserController home() method.

  • user/add.htm is requested, DispatcherServlet will forward the request to the UserController add() method.

  • user/remove.htm is requested, DispatcherServlet will forward the request to the UserController remove() method.

To begin with, let us have a working Eclipse IDE in place and stick to the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create a Java class UserController under the com.tutorialspoint package.
3 Create view files home.jsp and user.jsp under the jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

UserController.java

package com.tutorialspoint;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.multiaction.MultiActionController;

public class UserController extends MultiActionController{

   public ModelAndView home(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("home");
      model.addObject("message", "Home");
      return model;
   }

   public ModelAndView add(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Add");
      return model;
   }

   public ModelAndView remove(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Remove");
      return model;
   }
}

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/"/>
      <property name = "suffix" value = ".jsp"/>
   </bean>

   <bean class = "org.springframework.web.servlet.handler.BeanNameUrlHandlerMapping"/>
   <bean name = "/home.htm"
      class = "com.tutorialspoint.UserController" />
   <bean name = "/user/*.htm"
      class = "com.tutorialspoint.UserController" />
</beans>

home.jsp

<%@ page contentType = "text/html; charset = UTF-8" %>
<html>
   <head>
      <meta http-equiv = "Content-Type" content = "text/html; charset = ISO-8859-1">
      <title>Home</title>
   </head>

   <body>
      <a href = "user/add.htm" >Add</a> <br>
      <a href = "user/remove.htm" >Remove</a>
   </body>
</html>

user.jsp

<%@ page contentType = "text/html; charset = UTF-8" %>
<html>
   <head>
      <title>Hello World</title>
   </head>
   <body>
      <h2>${message}</h2>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the TestWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from webapps folder using a standard browser. Now, try a URL − http://localhost:8080/TestWeb/home.htm and we will see the following screen, if everything is fine with the Spring Web Application.

Spring Multi Action Controller 1

Try a URL http://localhost:8080/TestWeb/user/add.htm and we will see the following screen, if everything is fine with the Spring Web Application.

Spring Multi Action Controller 2

Spring MVC - Properties Method Name Resolver Example

The following example shows how to use the Properties Method Name Resolver method of a Multi Action Controller using Spring Web MVC framework. The MultiActionController class helps to map multiple URLs with their methods in a single controller respectively.

package com.tutorialspoint;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.multiaction.MultiActionController;

public class UserController extends MultiActionController{

   public ModelAndView home(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Home");
      return model;
   }

   public ModelAndView add(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Add");
      return model;
   }

   public ModelAndView remove(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Remove");
      return model;
   }
}
<bean class = "com.tutorialspoint.UserController">
   <property name = "methodNameResolver">
      <bean class = "org.springframework.web.servlet.mvc.multiaction.PropertiesMethodNameResolver">
         <property name = "mappings">
            <props>
               <prop key = "/user/home.htm">home</prop>
               <prop key = "/user/add.htm">add</prop>
               <prop key = "/user/remove.htm">update</prop>
            </props>
         </property>
      </bean>
   </property>
</bean>

For example, using the above configuration, if URI −

  • /user/home.htm is requested, DispatcherServlet will forward the request to the UserController home() method.

  • /user/add.htm is requested, DispatcherServlet will forward the request to the UserController add() method.

  • /user/remove.htm is requested, DispatcherServlet will forward the request to the UserController remove() method.

To start with it, let us have a working Eclipse IDE in place and consider the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java class UserController under the com.tutorialspoint package.
3 Create a view file user.jsp under the jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

UserController.java

package com.tutorialspoint;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.multiaction.MultiActionController;

public class UserController extends MultiActionController{

   public ModelAndView home(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Home");
      return model;
   }

   public ModelAndView add(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Add");
      return model;
   }

   public ModelAndView remove(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Remove");
      return model;
   }
}

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/"/>
      <property name = "suffix" value = ".jsp"/>
   </bean>

   <bean class = "org.springframework.web.servlet.mvc.support.ControllerClassNameHandlerMapping">
      <property name = "caseSensitive" value = "true" />
   </bean>
   <bean class = "com.tutorialspoint.UserController">
      <property name = "methodNameResolver">
          <bean class = "org.springframework.web.servlet.mvc.multiaction.PropertiesMethodNameResolver">
            <property name = "mappings">
               <props>
                  <prop key = "/user/home.htm">home</prop>
                  <prop key = "/user/add.htm">add</prop>
                  <prop key = "/user/remove.htm">update</prop>
               </props>
            </property>
         </bean>
      </property>
   </bean>
</beans>

user.jsp

<%@ page contentType = "text/html; charset = UTF-8" %>
<html>
   <head>
      <title>Hello World</title>
   </head>
   <body>
      <h2>${message}</h2>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the TestWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Now, try a URL − http://localhost:8080/TestWeb/user/add.htm and we will see the following screen, if everything is fine with the Spring Web Application.

Spring Multi Action Controller

Spring MVC - Parameter Method Name Resolver Example

The following example shows how to use the Parameter Method Name Resolver of a Multi Action Controller using the Spring Web MVC framework. The MultiActionController class helps to map multiple URLs with their methods in a single controller respectively.

package com.tutorialspoint;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.multiaction.MultiActionController;

public class UserController extends MultiActionController{

   public ModelAndView home(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Home");
      return model;
   }

   public ModelAndView add(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Add");
      return model;
   }

   public ModelAndView remove(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Remove");
      return model;
   }
}
<bean class = "com.tutorialspoint.UserController">
   <property name = "methodNameResolver">
      <bean class = "org.springframework.web.servlet.mvc.multiaction.ParameterMethodNameResolver">
         <property name = "paramName" value = "action"/>
      </bean>
   </property>
</bean>

For example, using the above configuration, if URI −

  • /user/*.htm?action=home is requested, DispatcherServlet will forward the request to the UserController home() method.

  • /user/*.htm?action=add is requested, DispatcherServlet will forward the request to the UserController add() method.

  • /user/*.htm?action=remove is requested, DispatcherServlet will forward the request to the UserController remove() method.

To start with, let us have a working Eclipse IDE in place and adhere to the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create a Java class UserController under the com.tutorialspoint package.
3 Create a view file user.jsp under the jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

UserController.java

package com.tutorialspoint;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.multiaction.MultiActionController;

public class UserController extends MultiActionController{

   public ModelAndView home(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Home");
      return model;
   }

   public ModelAndView add(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Add");
      return model;
   }

   public ModelAndView remove(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Remove");
      return model;
   }
}

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/"/>
      <property name = "suffix" value = ".jsp"/>
   </bean>

   <bean class = "org.springframework.web.servlet.mvc.support.ControllerClassNameHandlerMapping">
      <property name = "caseSensitive" value = "true" />
   </bean>
   <bean class = "com.tutorialspoint.UserController">
      <property name = "methodNameResolver">
         <bean class = "org.springframework.web.servlet.mvc.multiaction.ParameterMethodNameResolver">
            <property name = "paramName" value = "action"/>
         </bean>
      </property>
   </bean>
</beans>

user.jsp

<%@ page contentType="text/html; charset=UTF-8" %>
<html>
   <head>
      <title>Hello World</title>
   </head>
   <body>
      <h2>${message}</h2>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the TestWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Now, try a URL − http://localhost:8080/TestWeb/user/test.htm?action=home and we will see the following screen, if everything is fine with the Spring Web Application.

Spring Multi Action Controller

Spring MVC - Parameterizable View Controller Example

The following example shows how to use the Parameterizable View Controller method of a Multi Action Controller using the Spring Web MVC framework. The Parameterizable View allows mapping a webpage with a request.

package com.tutorialspoint;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.multiaction.MultiActionController;

public class UserController extends MultiActionController{

   public ModelAndView home(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Home");
      return model;
   }
}

<bean class="org.springframework.web.servlet.handler.SimpleUrlHandlerMapping">
   <property name="mappings">
      <value>
         index.htm=userController
      </value>
   </property>
</bean>
<bean id="userController" class="org.springframework.web.servlet.mvc.ParameterizableViewController">
   <property name="viewName" value="user"/>
</bean>

For example, using the above configuration, if URI.

  • /index.htm is requested, DispatcherServlet will forward the request to the UserController controller with viewName set as user.jsp.

To start with it, let us have a working Eclipse IDE in place and stick to the following steps to develop a Dynamic Form based Web Application using Spring Web Framework.

Step Description
1 Create a project with a name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create a Java class UserController under the com.tutorialspoint package.
3 Create a view file user.jsp under the jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

UserController.java

package com.tutorialspoint;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.multiaction.MultiActionController;

public class UserController extends MultiActionController{

   public ModelAndView home(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      ModelAndView model = new ModelAndView("user");
      model.addObject("message", "Home");
      return model;
   }
}

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/"/>
      <property name = "suffix" value = ".jsp"/>
   </bean>

   <bean class = "org.springframework.web.servlet.handler.SimpleUrlHandlerMapping">
      <property name = "mappings">
         <value>
            index.htm = userController
         </value>
      </property>
   </bean>
   <bean id = "userController" class = "org.springframework.web.servlet.mvc.ParameterizableViewController">
      <property name = "viewName" value="user"/>
   </bean>
</beans>

user.jsp

<%@ page contentType="text/html; charset=UTF-8" %>
<html>
   <head>
      <title>Hello World</title>
   </head>
   <body>
      <h2>Hello World</h2>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the TestWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from webapps folder using a standard browser. Now, try a URL – http://localhost:8080/TestWeb/index.htm and you will see the following screen, if everything is fine with the Spring Web Application.

Spring Multi Action Controller

Spring MVC - Internal Resource View Resolver Example

The InternalResourceViewResolver is used to resolve the provided URI to actual URI. The following example shows how to use the InternalResourceViewResolver using the Spring Web MVC Framework. The InternalResourceViewResolver allows mapping webpages with requests.

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.ui.ModelMap;

@Controller
@RequestMapping("/hello")
public class HelloController{

   @RequestMapping(method = RequestMethod.GET)
   public String printHello(ModelMap model) {
      model.addAttribute("message", "Hello Spring MVC Framework!");

      return "hello";
   }
}
<bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
   <property name = "prefix" value = "/WEB-INF/jsp/"/>
   <property name = "suffix" value = ".jsp"/>
</bean>

For example, using the above configuration, if URI

  • /hello is requested, DispatcherServlet will forward the request to the prefix + viewname + suffix = /WEB-INF/jsp/hello.jsp.

To start with, let us have a working Eclipse IDE in place and then consider the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name TestWeb under a package com.tutorialspointas explained in the Spring MVC - Hello World Example chapter.
2 Create a Java classes HelloController under the com.tutorialspointpackage.
3 Create a view file hello.jsp under jsp sub-folder.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

HelloController.java

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.ui.ModelMap;

@Controller
@RequestMapping("/hello")
public class HelloController{

   @RequestMapping(method = RequestMethod.GET)
   public String printHello(ModelMap model) {
      model.addAttribute("message", "Hello Spring MVC Framework!");

      return "hello";
   }

}

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <context:component-scan base-package = "com.tutorialspoint" />

   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/" />
      <property name = "suffix" value = ".jsp" />
   </bean>

</beans>

hello.jsp

<%@ page contentType = "text/html; charset = UTF-8" %>
<html>
   <head>
      <title>Hello World</title>
   </head>
   <body>
      <h2>${message}</h2>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the TestWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Try to access the URL – http://localhost:8080/TestWeb/hello and if everything is fine with the Spring Web Application, we will see the following screen.

Spring Internal Resource View Resolver

Spring MVC - Xml View Resolver Example

The XmlViewResolver is used to resolve the view names using view beans defined in xml file. The following example shows how to use the XmlViewResolver using Spring Web MVC framework.

TestWeb-servlet.xml

<bean class = "org.springframework.web.servlet.view.XmlViewResolver">
   <property name = "location">
      <value>/WEB-INF/views.xml</value>
   </property>
</bean>

views.xml

<bean id = "hello"
   class = "org.springframework.web.servlet.view.JstlView">
   <property name = "url" value = "/WEB-INF/jsp/hello.jsp" />
</bean>

For example, using the above configuration, if URI −

  • /hello is requested, DispatcherServlet will forward the request to the hello.jsp defined by bean hello in the view.xml.

To start with, let us have a working Eclipse IDE in place and stick to the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create a Java class HelloController under the com.tutorialspointpackage.
3 Create a view file hello.jsp under the jsp sub-folder.
4 Download JSTL library jstl.jar. Put it in your CLASSPATH.
5 The final step is to create the content of the source and configuration files and export the application as explained below.

HelloController.java

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.ui.ModelMap;

@Controller
@RequestMapping("/hello")
public class HelloController{

   @RequestMapping(method = RequestMethod.GET)
   public String printHello(ModelMap model) {
      model.addAttribute("message", "Hello Spring MVC Framework!");

      return "hello";
   }

}

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <context:component-scan base-package = "com.tutorialspoint" />

   <bean class = "org.springframework.web.servlet.view.XmlViewResolver">
      <property name = "location">
         <value>/WEB-INF/views.xml</value>
      </property>
   </bean>
</beans>

views.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <bean id = "hello"
      class = "org.springframework.web.servlet.view.JstlView">
      <property name = "url" value = "/WEB-INF/jsp/hello.jsp" />
   </bean>
</beans>

hello.jsp

<%@ page contentType = "text/html; charset = UTF-8" %>
<html>
   <head>
      <title>Hello World</title>
   </head>
   <body>
      <h2>${message}</h2>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the HelloWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Try to access the URL − http://localhost:8080/HelloWeb/hello and if everything is fine with the Spring Web Application, we will see the following screen.

Spring Internal Resource View Resolver

Spring MVC - Resource Bundle View Resolver Example

The ResourceBundleViewResolver is used to resolve the view names using view beans defined in the properties file. The following example shows how to use the ResourceBundleViewResolver using the Spring Web MVC Framework.

TestWeb-servlet.xml

<bean class = "org.springframework.web.servlet.view.ResourceBundleViewResolver">
   <property name = "basename" value = "views" />
</bean>

Here, the basename refers to name of the resource bundle, which carries the views. The default name of the resource bundle is views.properties, which can be overridden using the basename property.

views.properties

hello.(class) = org.springframework.web.servlet.view.JstlView
hello.url = /WEB-INF/jsp/hello.jsp

For example, using the above configuration, if URI −

  • /hello is requested, DispatcherServlet will forward the request to the hello.jsp defined by bean hello in the views.properties.

  • Here, "hello" is the view name to be matched. Whereas, class refers to the view type and URL is the view's location.

To start with, let us have a working Eclipse IDE in place and consider the following steps to develop a Dynamic Form based Web Application using Spring Web Framework.

Step Description
1 Create a project with a name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create a Java class HelloController under the com.tutorialspointpackage.
3 Create a view file hello.jsp under the jsp sub-folder.
4 Create a properties file views.properties under the src folder.
5 Download JSTL library jstl.jar. Put it in your CLASSPATH.
6 The final step is to create the content of the source and configuration files and export the application as explained below.

HelloController.java

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.ui.ModelMap;

@Controller
@RequestMapping("/hello")
public class HelloController{

   @RequestMapping(method = RequestMethod.GET)
   public String printHello(ModelMap model) {
      model.addAttribute("message", "Hello Spring MVC Framework!");

      return "hello";
   }

}

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <context:component-scan base-package = "com.tutorialspoint" />

   <bean class = "org.springframework.web.servlet.view.ResourceBundleViewResolver">
      <property name = "basename" value = "views" />
   </bean>
</beans>

views.properties

hello.(class) = org.springframework.web.servlet.view.JstlView
hello.url = /WEB-INF/jsp/hello.jsp

hello.jsp

<%@ page contentType="text/html; charset=UTF-8" %>
<html>
   <head>
      <title>Hello World</title>
   </head>
   <body>
      <h2>${message}</h2>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save your HelloWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Try to access the URL − http://localhost:8080/HelloWeb/hello and if everything is fine with the Spring Web Application, we will see the following screen.

Spring Internal Resource View Resolver

Spring MVC - Multiple Resolver Mapping Example

In case you want to use a Multiple View Resolver in a Spring MVC application then priority order can be set using the order property. The following example shows how to use the ResourceBundleViewResolver and the InternalResourceViewResolver in the Spring Web MVC Framework.

TestWeb-servlet.xml

<bean class = "org.springframework.web.servlet.view.ResourceBundleViewResolver">
   <property name = "basename" value = "views" />
   <property name = "order" value = "0" />
</bean>
<bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
   <property name = "prefix" value = "/WEB-INF/jsp/" />
   <property name = "suffix" value = ".jsp" />
   <property name = "order" value = "1" />
</bean>

Here, the order property defines the ranking of a view resolver. In this, 0 is the first resolver and 1 is the next resolver and so on.

views.properties

hello.(class) = org.springframework.web.servlet.view.JstlView
hello.url = /WEB-INF/jsp/hello.jsp

For example, using the above configuration, if URI −

  • /hello is requested, DispatcherServlet will forward the request to the hello.jsp defined by bean hello in views.properties.

To start with, let us have a working Eclipse IDE in place and consider the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create a Java class HelloController under the com.tutorialspointpackage.
3 Create a view file hello.jsp under the jsp sub-folder.
4 Create a properties file views.properties under the SRC folder.
5 Download the JSTL library jstl.jar. Put it in your CLASSPATH.
6 The final step is to create the content of the source and configuration files and export the application as explained below.

HelloController.java

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.ui.ModelMap;

@Controller
@RequestMapping("/hello")
public class HelloController{

   @RequestMapping(method = RequestMethod.GET)
   public String printHello(ModelMap model) {
      model.addAttribute("message", "Hello Spring MVC Framework!");

      return "hello";
   }

}

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <context:component-scan base-package = "com.tutorialspoint" />

   <bean class = "org.springframework.web.servlet.view.ResourceBundleViewResolver">
      <property name = "basename" value = "views" />
      <property name = "order" value = "0" />
   </bean>
   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/" />
      <property name = "suffix" value = ".jsp" />
      <property name = "order" value = "1" />
   </bean>
</beans>

views.properties

hello.(class) = org.springframework.web.servlet.view.JstlView
hello.url = /WEB-INF/jsp/hello.jsp

hello.jsp

<%@ page contentType = "text/html; charset = UTF-8" %>
<html>
   <head>
      <title>Hello World</title>
   </head>
   <body>
      <h2>${message}</h2>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save your HelloWeb.war file in Tomcat's webapps folder.

Now, start the Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Try to access the URL − http://localhost:8080/HelloWeb/hello, if everything is fine with the Spring Web Application, we will see the following screen.

Spring Internal Resource View Resolver

Spring MVC - Hibernate Validator Example

The following example shows how to use Error Handling and Validators in forms using the Spring Web MVC framework. To begin with, let us have a working Eclipse IDE in place and adhere to the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with the name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes Student, StudentController and StudentValidator under the com.tutorialspoint package.
3 Create view files addStudent.jsp and result.jsp under the jsp sub-folder.
4 Download Hibernate Validator library Hibernate Validator. Extract hibernate-validator-5.3.4.Final.jar and required dependencies present under the required folder of the downloaded zip file. Put them in your CLASSPATH.
5 Create a properties file messages.properties under the SRC folder.
6 The final step is to create the content of the source and configuration files and export the application as explained below.

Student.java

package com.tutorialspoint;

import org.hibernate.validator.constraints.NotEmpty;
import org.hibernate.validator.constraints.Range;

public class Student {

   @Range(min = 1, max = 150)
   private Integer age;
   @NotEmpty
   private String name;
   private Integer id;

   public void setAge(Integer age) {
      this.age = age;
   }
   public Integer getAge() {
      return age;
   }

   public void setName(String name) {
      this.name = name;
   }
   public String getName() {
      return name;
   }

   public void setId(Integer id) {
      this.id = id;
   }
   public Integer getId() {
      return id;
   }
}

StudentController.java

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.validation.BindingResult;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;

@Controller
public class StudentController {

   @RequestMapping(value = "/addStudent", method = RequestMethod.GET)
   public ModelAndView student() {
      return new ModelAndView("addStudent", "command", new Student());
   }

   @ModelAttribute("student")
   public Student createStudentModel() {
      return new Student();
   }

   @RequestMapping(value = "/addStudent", method = RequestMethod.POST)
   public String addStudent(@ModelAttribute("student") @Validated Student student,
      BindingResult bindingResult, Model model) {
      if (bindingResult.hasErrors()) {
         return "addStudent";
      }
      model.addAttribute("name", student.getName());
      model.addAttribute("age", student.getAge());
      model.addAttribute("id", student.getId());

      return "result";
   }
}

messages.properties

NotEmpty.student.name = Name is required!
Range.student.age = Age value must be between 1 and 150!

Here, the key is <Annotation>.<object-name>.<attribute>. Value is the message to be displayed.

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:mvc = "http://www.springframework.org/schema/mvc"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd
   http://www.springframework.org/schema/mvc
   http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">

   <context:component-scan base-package = "com.tutorialspoint" />
   <mvc:annotation-driven />
   <bean class = "org.springframework.context.support.ResourceBundleMessageSource"
      id = "messageSource">
      <property name = "basename" value = "messages" />
   </bean>
   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/" />
      <property name = "suffix" value = ".jsp" />
   </bean>
</beans>

Here, for the first service method student(), we have passed a blank Studentobject> in the ModelAndView object with name "command", because the spring framework expects an object with name "command", if you are using <form:form> tags in your JSP file. So, when the student() method is called, it returns addStudent.jsp view.

The second service method addStudent() will be called against a POST method on the HelloWeb/addStudent URL. You will prepare your model object based on the submitted information. Finally, a "result" view will be returned from the service method, which will result in rendering the result.jsp. In case there are errors generated using validator then same view "addStudent" is returned, Spring automatically injects error messages from BindingResult in view.

addStudent.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <style>
      .error {
         color: #ff0000;
      }

      .errorblock {
         color: #000;
         background-color: #ffEEEE;
         border: 3px solid #ff0000;
         padding: 8px;
         margin: 16px;
      }
   </style>
   <body>

      <h2>Student Information</h2>
      <form:form method = "POST" action = "/TestWeb/addStudent" commandName = "student">
      <form:errors path = "*" cssClass = "errorblock" element = "div" />
         <table>
            <tr>
               <td><form:label path = "name">Name</form:label></td>
               <td><form:input path = "name" /></td>
               <td><form:errors path = "name" cssClass = "error" /></td>
            </tr>
            <tr>
               <td><form:label path = "age">Age</form:label></td>
               <td><form:input path = "age" /></td>
               <td><form:errors path = "age" cssClass = "error" /></td>
            </tr>
            <tr>
               <td><form:label path = "id">id</form:label></td>
               <td><form:input path = "id" /></td>
               </tr>
            <tr>
               <td colspan = "2">
               <input type = "submit" value = "Submit"/>
               </td>
            </tr>
         </table>
      </form:form>
   </body>
</html>

Here, we are using the <form:errors /> tag with path="*" to render error messages. For example −

<form:errors path = "*" cssClass = "errorblock" element = "div" />

It will render error messages for all input validations. We are using <form:errors /> tag with path = "name" to render error message for the name field.

For example −

<form:errors path = "name" cssClass = "error" />
<form:errors path = "age" cssClass = "error" />

It will render error messages for name and age field validations.

result.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>Submitted Student Information</h2>
      <table>
         <tr>
            <td>Name</td>
            <td>${name}</td>
         </tr>
         <tr>
            <td>Age</td>
            <td>${age}</td>
         </tr>
         <tr>
            <td>ID</td>
            <td>${id}</td>
         </tr>
      </table>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the HelloWeb.war file in Tomcat's webapps folder.

Now, start the Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Try a URL − http://localhost:8080/TestWeb/addStudent and we will see the following screen, if you have entered invalid values.

Spring Validation Result

Spring MVC - Generate RSS Feed Example

The following example shows how to generate RSS Feed using the Spring Web MVC Framework. To start with, let us have a working Eclipse IDE in place and then consider the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with the name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes RSSMessage, RSSFeedViewer and RSSController under the com.tutorialspoint package.
3 Download the Rome library Rome and its dependencies rome-utils, jdom and slf4j from the same maven repository page. Put them in your CLASSPATH.
4 Create a properties file messages.properties under the SRC folder.
5 The final step is to create the content of the source and configuration files and export the application as explained below.

RSSMessage.java

package com.tutorialspoint;

import java.util.Date;

public class RSSMessage {
   String title;
   String url;
   String summary;
   Date createdDate;
   public String getTitle() {
      return title;
   }
   public void setTitle(String title) {
      this.title = title;
   }
   public String getUrl() {
      return url;
   }
   public void setUrl(String url) {
      this.url = url;
   }
   public String getSummary() {
      return summary;
   }
   public void setSummary(String summary) {
      this.summary = summary;
   }
   public Date getCreatedDate() {
      return createdDate;
   }
   public void setCreatedDate(Date createdDate) {
      this.createdDate = createdDate;
   }
}

RSSFeedViewer.java

package com.tutorialspoint;

import java.util.ArrayList;
import java.util.List;
import java.util.Map;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.view.feed.AbstractRssFeedView;

import com.rometools.rome.feed.rss.Channel;
import com.rometools.rome.feed.rss.Content;
import com.rometools.rome.feed.rss.Item;

public class RSSFeedViewer extends AbstractRssFeedView {

   @Override
   protected void buildFeedMetadata(Map<String, Object> model, Channel feed,
      HttpServletRequest request) {

      feed.setTitle("TutorialsPoint Dot Com");
      feed.setDescription("Java Tutorials and Examples");
      feed.setLink("http://www.tutorialspoint.com");

      super.buildFeedMetadata(model, feed, request);
   }

   @Override
   protected List<Item> buildFeedItems(Map<String, Object> model,
      HttpServletRequest request, HttpServletResponse response) throws Exception {

      List<RSSMessage> listContent = (List<RSSMessage>) model.get("feedContent");
      List<Item> items = new ArrayList<Item>(listContent.size());

      for(RSSMessage tempContent : listContent ){

         Item item = new Item();

         Content content = new Content();
         content.setValue(tempContent.getSummary());
         item.setContent(content);

         item.setTitle(tempContent.getTitle());
         item.setLink(tempContent.getUrl());
         item.setPubDate(tempContent.getCreatedDate());

         items.add(item);
      }

      return items;
   }
}

RSSController.java

package com.tutorialspoint;

import java.util.ArrayList;
import java.util.Date;
import java.util.List;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;

@Controller
public class RSSController {
   @RequestMapping(value="/rssfeed", method = RequestMethod.GET)
   public ModelAndView getFeedInRss() {

      List<RSSMessage> items = new ArrayList<RSSMessage>();

      RSSMessage content  = new RSSMessage();
      content.setTitle("Spring Tutorial");
      content.setUrl("http://www.tutorialspoint/spring");
      content.setSummary("Spring tutorial summary...");
      content.setCreatedDate(new Date());
      items.add(content);

      RSSMessage content2  = new RSSMessage();
      content2.setTitle("Spring MVC");
      content2.setUrl("http://www.tutorialspoint/springmvc");
      content2.setSummary("Spring MVC tutorial summary...");
      content2.setCreatedDate(new Date());
      items.add(content2);

      ModelAndView mav = new ModelAndView();
      mav.setViewName("rssViewer");
      mav.addObject("feedContent", items);

      return mav;
   }
}

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">
   <context:component-scan base-package = "com.tutorialspoint" />

   <bean class = "org.springframework.web.servlet.view.BeanNameViewResolver" />

   <bean id = "rssViewer" class = "com.tutorialspoint.RSSFeedViewer" />
</beans>

Here, we have created a RSS feed POJO RSSMessage and a RSS Message Viewer, which extends the AbstractRssFeedView and overrides its method. In RSSController, we have generated a sample RSS Feed.

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the TestWeb.war file in Tomcat's webapps folder.

Now, start your Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Try a URL − http://localhost:8080/TestWeb/rssfeed and we will see the following screen.

Spring RSS Generation

Spring MVC - Generate XML Example

The following example shows how to generate XML using the Spring Web MVC Framework. To begin with, let us have a working Eclipse IDE in place and stick to the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes User and UserController under the com.tutorialspointpackage.
3 The final step is to create the content of the source and configuration files and export the application as explained below.

User.java

package com.tutorialspoint;

import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlRootElement;

@XmlRootElement(name = "user")
public class User {
   private String name;
   private int id;
   public String getName() {
      return name;
   }
   @XmlElement
   public void setName(String name) {
      this.name = name;
   }
   public int getId() {
      return id;
   }
   @XmlElement
   public void setId(int id) {
      this.id = id;
   }
}

UserController.java

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;

@Controller
@RequestMapping("/user")
public class UserController {

   @RequestMapping(value="{name}", method = RequestMethod.GET)
   public @ResponseBody User getUser(@PathVariable String name) {

      User user = new User();

      user.setName(name);
      user.setId(1);
      return user;
   }
}

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xmlns:mvc = "http://www.springframework.org/schema/mvc"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd
   http://www.springframework.org/schema/mvc
   http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">
   <context:component-scan base-package = "com.tutorialspoint" />
   <mvc:annotation-driven />
</beans>

Here, we have created an XML Mapped POJO User and in the UserController, we have returned the User. Spring automatically handles the XML conversion based on RequestMapping.

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save your TestWeb.war file in Tomcat's webapps folder.

Now, start the Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Try a URL – http://localhost:8080/TestWeb/mahesh and we will see the following screen.

Spring XML Generation

Spring MVC - Generate JSON Example

The following example shows how to generate JSON using the Spring Web MVC Framework. To start with, let us have a working Eclipse IDE in place and consider the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework −

Step Description
1 Create a project with a name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create a Java classes User, UserController under the com.tutorialspoint package.
3 Download Jackson libraries Jackson Core, Jackson Databind and Jackson Annotations from maven repository page. Put them in your CLASSPATH.
4 The final step is to create the content of all the source and configuration files and export the application as explained below.

User.java

package com.tutorialspoint;

public class User {
   private String name;
   private int id;
   public String getName() {
      return name;
   }
   public void setName(String name) {
      this.name = name;
   }
   public int getId() {
      return id;
   }
   public void setId(int id) {
      this.id = id;
   }
}

UserController.java

package com.tutorialspoint;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;

@Controller
@RequestMapping("/user")
public class UserController {

   @RequestMapping(value="{name}", method = RequestMethod.GET)
   public @ResponseBody User getUser(@PathVariable String name) {

      User user = new User();

      user.setName(name);
      user.setId(1);
      return user;
   }
}

TestWeb-servlet.xml

<beans xmlns = http://www.springframework.org/schema/beans"
   xmlns:context = http://www.springframework.org/schema/context"
   xmlns:xsi = http://www.w3.org/2001/XMLSchema-instance"
   xmlns:mvc = http://www.springframework.org/schema/mvc"
   xsi:schemaLocation =
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd
   http://www.springframework.org/schema/mvc
   http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">
   <context:component-scan base-package = com.tutorialspoint" />
   <mvc:annotation-driven />
</beans>

Here, we have created a Simple POJO User and in UserController we have returned the User. Spring automatically handles the JSON conversion based on RequestMapping and Jackson jar present in the classpath.

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save your TestWeb.war file in Tomcat's webapps folder.

Now, start the Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Try a URL – http://localhost:8080/TestWeb/mahesh and we will see the following screen.

Spring JSON Generation

Spring MVC - Generate Excel Example

The following example shows how to generate Excel using the Spring Web MVC Framework. To begin with, let us have a working Eclipse IDE in place and stick to the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes UserExcelView and ExcelController under the com.tutorialspoint package.
3 Download the Apache POI library Apache POI from the maven repository page. Put it in your CLASSPATH.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

ExcelController.java

package com.tutorialspoint;

import java.util.HashMap;
import java.util.Map;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.AbstractController;

public class ExcelController extends AbstractController {

   @Override
   protected ModelAndView handleRequestInternal(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      //user data
      Map<String,String> userData = new HashMap<String,String>();
      userData.put("1", "Mahesh");
      userData.put("2", "Suresh");
      userData.put("3", "Ramesh");
      userData.put("4", "Naresh");
      return new ModelAndView("UserSummary","userData",userData);
   }
}

UserExcelView.java

package com.tutorialspoint;

import java.util.Map;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.apache.poi.hssf.usermodel.HSSFRow;
import org.apache.poi.hssf.usermodel.HSSFSheet;
import org.apache.poi.hssf.usermodel.HSSFWorkbook;
import org.springframework.web.servlet.view.document.AbstractExcelView;

public class UserExcelView extends AbstractExcelView {

   @Override
   protected void buildExcelDocument(Map<String, Object> model,
      HSSFWorkbook workbook, HttpServletRequest request, HttpServletResponse response)
      throws Exception {
      Map<String,String> userData = (Map<String,String>) model.get("userData");
      //create a wordsheet
      HSSFSheet sheet = workbook.createSheet("User Report");

      HSSFRow header = sheet.createRow(0);
      header.createCell(0).setCellValue("Roll No");
      header.createCell(1).setCellValue("Name");

      int rowNum = 1;
      for (Map.Entry<String, String> entry : userData.entrySet()) {
         //create the row data
         HSSFRow row = sheet.createRow(rowNum++);
         row.createCell(0).setCellValue(entry.getKey());
         row.createCell(1).setCellValue(entry.getValue());
      }
   }
}

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xmlns:mvc = "http://www.springframework.org/schema/mvc"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd
   http://www.springframework.org/schema/mvc
   http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">

   <bean class = "org.springframework.web.servlet.mvc.support.ControllerClassNameHandlerMapping" />

   <bean class = "com.tutorialspoint.ExcelController" />

   <bean class = "org.springframework.web.servlet.view.XmlViewResolver">
      <property name = "location">
         <value>/WEB-INF/views.xml</value>
      </property>
   </bean>
</beans>

views.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <bean id = "UserSummary" class = "com.tutorialspoint.UserExcelView"></bean>
</beans>

Here, we have created an ExcelController and an ExcelView. Apache POI library deals with Microsoft Office file formats and will convert the data to an excel document.

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the TestWeb.war file in Tomcat's webapps folder.

Now, start the Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Try a URL − http://localhost:8080/TestWeb/excel and we will see the following screen.

Spring Excel Generation

Spring MVC - Generate PDF Example

The following example shows how to generate a PDF using the Spring Web MVC Framework. To start with, let us have a working Eclipse IDE in place and adhere to the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with a name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create Java classes UserPDFView and PDFController under the com.tutorialspoint package.
3 Download the iText library − iText from the maven repository page. Put it in your CLASSPATH.
4 The final step is to create the content of the source and configuration files and export the application as explained below.

PDFController.java

package com.tutorialspoint;

import java.util.HashMap;
import java.util.Map;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.AbstractController;

public class PDFController extends AbstractController {

   @Override
   protected ModelAndView handleRequestInternal(HttpServletRequest request,
      HttpServletResponse response) throws Exception {
      //user data
      Map<String,String> userData = new HashMap<String,String>();
      userData.put("1", "Mahesh");
      userData.put("2", "Suresh");
      userData.put("3", "Ramesh");
      userData.put("4", "Naresh");
      return new ModelAndView("UserSummary","userData",userData);
   }
}

UserExcelView.java

package com.tutorialspoint;

import java.util.Map;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.web.servlet.view.document.AbstractPdfView;

import com.lowagie.text.Document;
import com.lowagie.text.Table;
import com.lowagie.text.pdf.PdfWriter;

public class UserPDFView extends AbstractPdfView {

   protected void buildPdfDocument(Map<String, Object> model, Document document,
      PdfWriter pdfWriter, HttpServletRequest request, HttpServletResponse response)
      throws Exception {
      Map<String,String> userData = (Map<String,String>) model.get("userData");

      Table table = new Table(2);
      table.addCell("Roll No");
      table.addCell("Name");

      for (Map.Entry<String, String> entry : userData.entrySet()) {
         table.addCell(entry.getKey());
         table.addCell(entry.getValue());
      }
      document.add(table);
   }
}

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xmlns:mvc = "http://www.springframework.org/schema/mvc"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd
   http://www.springframework.org/schema/mvc
   http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">
   <bean class = "org.springframework.web.servlet.mvc.support.ControllerClassNameHandlerMapping" />

   <bean class = "com.tutorialspoint.PDFController" />

   <bean class = "org.springframework.web.servlet.view.XmlViewResolver">
      <property name = "location">
         <value>/WEB-INF/views.xml</value>
      </property>
   </bean>
</beans>

views.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd">

   <bean id = "UserSummary" class = "com.tutorialspoint.UserPDFView"></bean>
</beans>

Here, we have created a PDFController and UserPDFView. iText library deals with the PDF file formats and will convert the data to a PDF document.

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save the TestWeb.war file in Tomcat's webapps folder.

Now, start the Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. We can also try the following URL − http://localhost:8080/TestWeb/pdf and if all goes as planned, we will see the following screen.

Spring PDF Generation

Spring MVC - Integrate LOG4J Example

The following example shows how to integrate LOG4J using the Spring Web MVC Framework. To start with, let us have a working Eclipse IDE in place and stick to the following steps to develop a Dynamic Form based Web Application using the Spring Web Framework.

Step Description
1 Create a project with the name TestWeb under a package com.tutorialspoint as explained in the Spring MVC - Hello World chapter.
2 Create a Java class HelloController under the com.tutorialspointpackage.
3 Download the log4j library LOG4J from the maven repository page. Put it in your CLASSPATH.
4 Create a log4j.properties under the SRC folder.
5 The final step is to create the content of the source and configuration files and export the application as explained below.

HelloController.java

package com.tutorialspoint;

import org.apache.log4j.Logger;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.ui.ModelMap;

@Controller
@RequestMapping("/hello")
public class HelloController{
   private static final Logger LOGGER = Logger.getLogger(HelloController.class);
   @RequestMapping(method = RequestMethod.GET)
   public String printHello(ModelMap model) {
      LOGGER.info("printHello started.");

      //logs debug message
      if(LOGGER.isDebugEnabled()){
         LOGGER.debug("Inside:  printHello");
      }
      //logs exception
      LOGGER.error("Logging a sample exception", new Exception("Testing"));

      model.addAttribute("message", "Hello Spring MVC Framework!");
      LOGGER.info("printHello ended.");
      return "hello";
   }
}

log4j.properties

# Root logger option
log4j.rootLogger = DEBUG, stdout, file

# Redirect log messages to console
log4j.appender.stdout = org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target = System.out
log4j.appender.stdout.layout = org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern = %d{yyyy-MM-dd HH:mm:ss} %-5p %c{1}:%L - %m%n

# Redirect log messages to a log file
log4j.appender.file = org.apache.log4j.RollingFileAppender
#outputs to Tomcat home
log4j.appender.file.File = ${catalina.home}/logs/myapp.log
log4j.appender.file.MaxFileSize = 5MB
log4j.appender.file.MaxBackupIndex = 10
log4j.appender.file.layout = org.apache.log4j.PatternLayout
log4j.appender.file.layout.ConversionPattern = %d{yyyy-MM-dd HH:mm:ss} %-5p %c{1}:%L - %m%n

TestWeb-servlet.xml

<beans xmlns = "http://www.springframework.org/schema/beans"
   xmlns:context = "http://www.springframework.org/schema/context"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xmlns:mvc = "http://www.springframework.org/schema/mvc"
   xsi:schemaLocation = "
   http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context-3.0.xsd
   http://www.springframework.org/schema/mvc
   http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">
   <context:component-scan base-package = "com.tutorialspoint" />

   <bean class = "org.springframework.web.servlet.view.InternalResourceViewResolver">
      <property name = "prefix" value = "/WEB-INF/jsp/" />
      <property name = "suffix" value = ".jsp" />
   </bean>
</beans>

hello.jsp

<%@ page contentType = "text/html; charset = UTF-8" %>
<html>
   <head>
      <title>Hello World</title>
   </head>
   <body>
      <h2>${message}</h2>
   </body>
</html>

Here, we have configured the LOG4J to log details on the Tomcat console and in the file present in &t; tomcat home → logs as myapp.log.

Once you are done with creating source and configuration files, export your application. Right click on your application, use Export → WAR File option and save your TestWeb.war file in Tomcat's webapps folder.

Now, start the Tomcat server and make sure you are able to access other webpages from the webapps folder using a standard browser. Try a URL −http://localhost:8080/TestWeb/hello and we will see the following screen on Tomcat's log.

Spring LOG4J Generation

Advertisements
