Performing binary thresholding on an image using OpenCV
In this program, we will perform binary thresholding on an image using openCV.
Thresholding is a process in which the value of each pixel is changed in relation to a threshold value. The pixel is given a certain value if it is less than the threshold and some other value if it is greater than the threshold. In binary thresholding, if the value of the pixel is less than the threshold, it will be given a 0 value, i.e., black. If it is greater than the threshold, it will be assigned 255, i.e., white.
Original Image
Algorithm
Step 1: Import cv2. Step 2: Define threshold and max_val. Step 3: Pass these parameters in the cv2.threshold value and specify the type of thresholding you want to do. Step 4: Display the output.
Example Code
import cv2
image = cv2.imread('testimage.jpg')
threshold_value = 120
max_val = 255
ret, image = cv2.threshold(image, threshold_value, max_val, cv2.THRESH_BINARY)

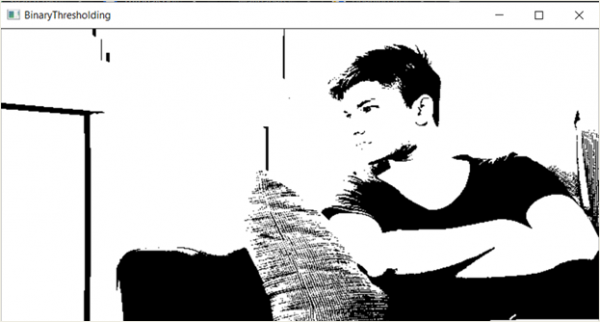

cv2.imshow('BinaryThresholding', image)Output
Explanation
The ret variable in the program simply returns the threshold value. For any pixels having value greater than the threshold value, they are replaced by max_val, i.e., 255.
