Mobile Angular UI - Examples


Advertisements

In this chapter, we will take a look at an example of the app created using Mobile Angular UI. The files required are mentioned below, with the code details.

index.html

<!DOCTYPE html>
<html>
   <head>
      <meta charset="utf-8" />
      <title>Mobile Angular UI Demo</title>
      <meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1" />
      <meta name="apple-mobile-web-app-capable"  content="yes" />
      <meta name="viewport" content="user-scalable=no, initial-scale=1.0, maximum-scale=1.0, minimal-ui" />
      <meta name="apple-mobile-web-app-status-bar-style" content="yes" />
      <link rel="shortcut icon" href="/assets/img/favicon.png" type="image/x-icon" />
      <link rel="stylesheet" href="node_modules/mobile-angular-ui/dist/css/mobile-angular-ui-hover.min.css" />
      <link rel="stylesheet" href="node_modules/mobile-angular-ui/dist/css/mobile-angular-ui-base.min.css" />
      <link rel="stylesheet" href="node_modules/mobile-angular-ui/dist/css/mobile-angular-ui-desktop.min.css" />
      <script src="node_modules/angular/angular.min.js"></script>
      <script src="node_modules/angular-route/angular-route.min.js"></script>
      <script src="node_modules/mobile-angular-ui/dist/js/mobile-angular-ui.min.js"></script>
      <script src="node_modules/angular-route/angular-route.min.js"></script>
      <link rel="stylesheet" href="src/css/app.css" />
      <script src="src/js/app.js"></script>
   </head>
   <body ng-app="myFirstApp" ng-controller="MainController">
      <!-- Sidebars -->
      <div class="sidebar sidebar-left">
         <div class="scrollable">
            <h1 class="scrollable-header app-name">Tutorials</h1>
            <div class="scrollable-content">
               <div class="list-group" ui-turn-off='uiSidebarLeft'>
                  <a class="list-group-item" href="/">Home Page </a>
                  <a class="list-group-item" href="#/academic"><i class="fa fa-caret-right"></i>Academic Tutorials </a>
                  <a class="list-group-item" href="#/bigdata"><i class="fa fa-caret-right"></i>Big Data & Analytics </a>
                  <a class="list-group-item" href="#/computerProg"><i class="fa fa-caret-right"></i>Computer Programming </a>
                  <a class="list-group-item" href="#/computerscience"><i class="fa fa-caret-right"></i>Computer Science </a>
                  <a class="list-group-item" href="#/databases"><i class="fa fa-caret-right"></i>Databases </a>
                  <a class="list-group-item" href="#/devops"><i class="fa fa-caret-right"></i>DevOps </a>
               </div>
            </div>
         </div>
      </div>
      <div class="sidebar sidebar-right">
         <div class="scrollable">
            <h1 class="scrollable-header app-name">eBooks</h1>
            <div class="scrollable-content">
               <div class="list-group" ui-toggle="uiSidebarRight">
                  <a class="list-group-item" href="#/php"><i class="fa fa-caret-right"></i>PHP </a>
                  <a class="list-group-item" href="#/Javascript"><i class="fa fa-caret-right"></i>Javascript </a>
               </div>
            </div>
         </div>
      </div>

      <div class="app">
         <div class="navbar navbar-app navbar-absolute-top">
            <div class="navbar-brand navbar-brand-center" ui-yield-to="title">
               TutorialsPoint
            </div>
            <div class="btn-group pull-left">
               <div ui-toggle="uiSidebarLeft" class="btn sidebar-left-toggle">
                  <i class="fa fa-th-large "></i> Tutorials
               </div>
            </div>
            <div class="btn-group pull-right" ui-yield-to="navbarAction">
               <div ui-toggle="uiSidebarRight" class="btn sidebar-right-toggle">
                  <i class="fal fa-search"></i> eBooks
               </div>
            </div>
         </div>
         <div class="navbar navbar-app navbar-absolute-bottom">
            <div class="btn-group justified">
               <a ui-turn-on="aboutus_modal" class="btn btn-navbar"><i class="fal fa-globe"></i> About us</a>
               <a ui-turn-on="contactus_overlay" class="btn btn-navbar"><i class="fal fa-map-marker-alt"></i> Contact us</a>
            </div>
         </div>

         <!-- App body -->
         <div class='app-body'>
            <div class='app-content'>
               <ng-view></ng-view>
            </div>
         </div>
      </div><!-- ~ .app -->

      <!-- Modals and Overlays -->
      <div ui-yield-to="modals"></div>
   </body>
</html>

In app.js, we will build the ngroute for all the routes mentioned here −

<div class="list-group" ui-turn-off='uiSidebarLeft'>
   <a class="list-group-item" href="/">Home Page </a>
   <a class="list-group-item" href="/academic"><i class="fa fa-caret-right"></i>Academic Tutorials </a>
   <a class="list-group-item" href="/bigdata"><i class="fa fa-caret-right"></i>Big Data & Analytics </a>
   <a class="list-group-item" href="/computerProg"><i class="fa fa-caret-right"></i>Computer Programming </a>
   <a class="list-group-item" href="/computerscience"><i class="fa fa-caret-right"></i>Computer Science </a>
   <a class="list-group-item" href="/databases"><i class="fa fa-caret-right"></i>Databases </a>
   <a class="list-group-item" href="/devops"><i class="fa fa-caret-right"></i>DevOps </a>
</div>

app.js

/* eslint no-alert: 0 */

'use strict';

//
// Here is how to define your module
// has dependent on mobile-angular-ui
//
var app=angular.module('myFirstApp', ['ngRoute',
   'mobile-angular-ui',
   'mobile-angular-ui.gestures',
]);
app.config(function($routeProvider, $locationProvider) {
   $routeProvider.when("/", { templateUrl : "src/home/home.html" });
   $routeProvider.when("/academic", { templateUrl : "src/academic/academic.html" });
   $routeProvider.when("/bigdata", { templateUrl : "src/bigdata/bigdata.html" });
   $locationProvider.html5Mode({enabled:true, requireBase:false});
});
app.directive('touchtest', ['$touch', function($touch) {
   return {
      restrict: 'C',
      link: function($scope, elem) {
         $scope.touch=null;
         $touch.bind(elem, {
            start: function(touch) {
               $scope.containerRect=elem[0].getBoundingClientRect();
               $scope.touch=touch;
               $scope.$apply();
            },
            cancel: function(touch) {
               $scope.touch=touch;
               $scope.$apply();
            },
            move: function(touch) {
               $scope.touch=touch;
               $scope.$apply();
            },
            end: function(touch) {
               $scope.touch=touch;
               $scope.$apply();
            }
         });
      }
   };
}]);
app.controller('MainController', function($rootScope, $scope, $routeParams) {
   $scope.msg="Welcome to TutorialsPoint!";
});

The routes for the links in sidebar are listed here −

app.config(function($routeProvider, $locationProvider) {
   $routeProvider.when("/", { templateUrl : "src/home/home.html" });
   $routeProvider.when("/academic", { templateUrl : "src/academic/academic.html" });
   $routeProvider.when("/bigdata", { templateUrl : "src/bigdata/bigdata.html" });
   $locationProvider.html5Mode({enabled:true, requireBase:false});
});

Right now, we have added for home, academic and bigdata. Similarly, you can design app of your choice and add routes as shown above.

The home/home.html will be as follows

<div class="scrollable ">
   <div class="scrollable-content ">
      <div class="list-group text-center">
         <div class="list-group text-center">
            <div class="list-group-item list-group-item-home">
               <h1>{{msg}}</h1>
            </div>
         </div>

         <div class="list-group-item list-group-item-home" style="background-color: #ccc;">
            <div>
               <h2 class="home-heading">List of Latest Courses</h2>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Information Technology</h4>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Academics</h4>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Development</h4>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Business</h4>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Design</h4>
            </div>
         </div>

         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Others</h4>
            </div>
         </div>

      </div>
   </div>
</div>

academic/academic.html

<div class="scrollable">
   <div class="scrollable-content">
      <div class="list-group text-center">
         <div class="list-group text-center">
            <div class="list-group-item list-group-item-home">
               <h1>{{msg}}</h1>
            </div>
         </div>
         <div class="list-group-item list-group-item-home" style="background-color: #ccc;">
            <div>
               <h2 class="home-heading">Academic Tutorials</h2>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">CBSE Syllabus</h4>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Learn Accounting Basics</h4>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Auditing</h4>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Learn Financial Accounting</h4>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Learn Forex Trading</h4>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Learn Statistics</h4>
            </div>
         </div>
      </div>
   </div>
</div>

bigdata/bigdata.html

<div class="scrollable">
   <div class="scrollable-content">

      <div class="list-group text-center">
         <div class="list-group text-center">
            <div class="list-group-item list-group-item-home">
               <h1>{{msg}}</h1>
            </div>
         </div>
         <div class="list-group-item list-group-item-home" style="background-color: #ccc;">
            <div>
               <h2 class="home-heading">Big Data Tutorials</h2>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Advanced Excel Charts</h4>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Advanced Excel Functions</h4>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Learn Apache Flume</h4>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Learn Apache Kafka</h4>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Learn Apache Pig</h4>
            </div>
         </div>
         <div class="list-group-item list-group-item-home list-tuts">
            <div>
               <h4 class="home-heading">Learn Apache Solr</h4>
            </div>
         </div>
      </div>
   </div>
</div>

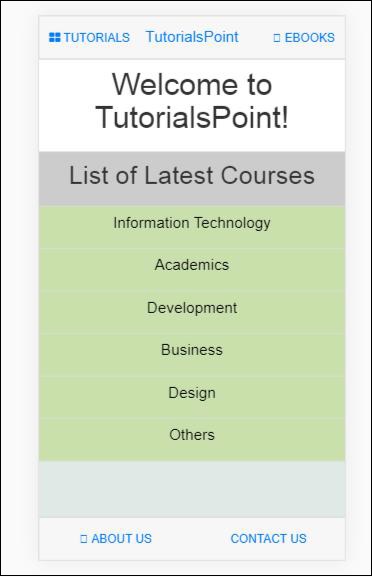

The display in the browser for - Home page is as follows −

Home Page Ex

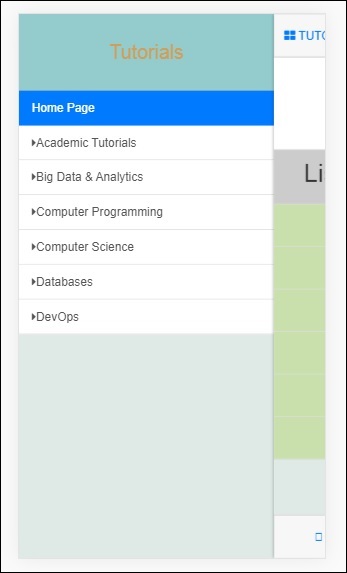

The display in the browser when user clicks on Tutorials −

Home Page Clicks

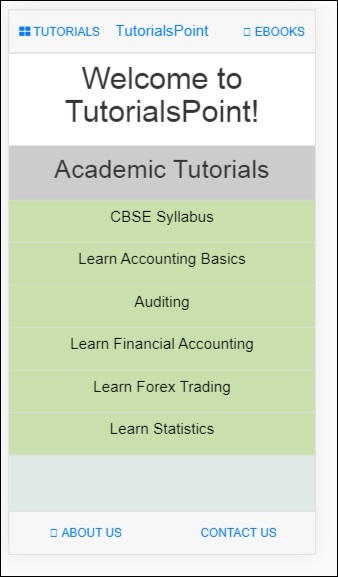

Now click on Academic Tutorials −

Academic Tutorials

Click on Tutorials → Big Data

Big Data
