Solving Mathematical Equation
In this chapter, we will solve a simple mathematical equation by using Simulink.
The equation is given below −
y(t) = 2Sin(t) + 5Sin(2t) - 10

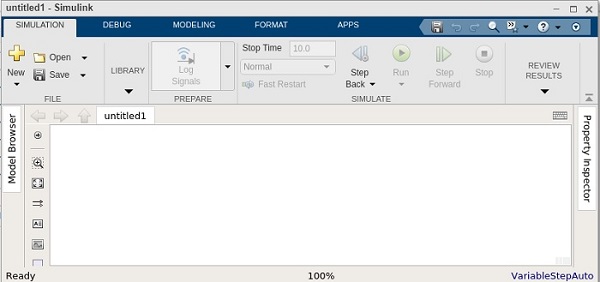

Let us create a model for the above equation. Open a blank model as shown below −
Following are the steps to solve the equation −
Get a Sine wave block. Right click and select block parameters. Select sign type as time based. Change the amplitude to 2 and frequency to 1. That will be 2Sin(t).
Get another sine wave block. Now, set the amplitude to 5 and frequency to 2 to display 5Sin(2t). Select sign type as time based.
Now get an add block and add both sine waves.
Get a constant. Right click and select block parameters. Change the value from 1 to 10.
Get a subtract block where one input will come from step 3 and another from constant i.e. step 4.
Get a scope block and connect the input from step 6 to it.
This is how the final Simulink model looks like for the equation −
y(t) = 2Sin(t) + 5Sin(2t) - 10
Click on the run button to compile. Right Click on scope block to see the signal plotted.
