XAML - GridView

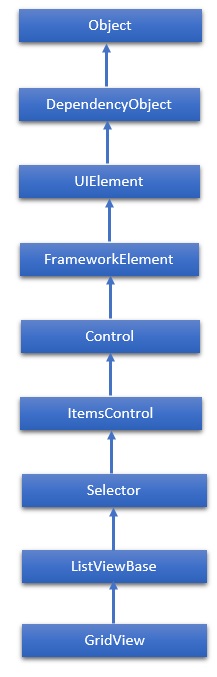

A GridView represents a control that displays data items in rows and columns. Actually, a ListView displays data. By default, it contains a GridView. The hierarchical inheritance of GridView class is as follows −

Properties

Given below are the commonly used properties of GridView.

Sr.No.	Property & Description
1	Background Gets or sets a brush that provides the background of the control. (Inherited from Control)
2	BorderThickness Gets or sets the border thickness of a control. (Inherited from Control)
3	DataContext Gets or sets the data context for a FrameworkElement when it participates in data binding. (Inherited from FrameworkElement)
4	FontFamily Gets or sets the font used to display text in the control. (Inherited from Control)
5	FontSize Gets or sets the size of the text in this control. (Inherited from Control)
6	FontStyle Gets or sets the style in which the text is rendered. (Inherited from Control)
7	FontWeight Gets or sets the thickness of the specified font. (Inherited from Control)
8	Foreground Gets or sets a brush that describes the foreground color. (Inherited from Control)
9	GroupStyle Gets a collection of GroupStyle objects that define the appearance of each level of groups. (Inherited from ItemsControl)
10	Header Gets or sets the content for the list header. (Inherited from ListViewBase)
11	Height Gets or sets the suggested height of a FrameworkElement. (Inherited from FrameworkElement)
12	HorizontalAlignment Gets or sets the horizontal alignment characteristics that are applied to a FrameworkElement when it is composed in a layout parent, such as a panel or items control. (Inherited from FrameworkElement)
13	HorizontalContentAlignment Gets or sets the horizontal alignment of the control's content. (Inherited from Control)
14	Items Gets the collection used to generate the content of the control. (Inherited from ItemsControl)
15	ItemsSource Gets or sets an object source used to generate the content of the ItemsControl. (Inherited from ItemsControl)
16	ItemTemplate Gets or sets the DataTemplate used to display each item. (Inherited from ItemsControl)
17	Margin Gets or sets the outer margin of a FrameworkElement. (Inherited from FrameworkElement)
18	Name Gets or sets the identifying name of the object. When a XAML processor creates the object tree from XAML markup, run-time code can refer to the XAML-declared object by this name. (Inherited from FrameworkElement)
19	Opacity Gets or sets the degree of the object's opacity. (Inherited from UIElement)
20	Resources Gets the locally defined resource dictionary. In XAML, you can establish resource items as child object elements of a frameworkElement.Resources property element, through XAML implicit collection syntax. (Inherited from FrameworkElement)
21	SelectedIndex Gets or sets the index of the selected item. (Inherited from Selector)
22	SelectedItem Gets or sets the selected item. (Inherited from Selector)
23	SelectedItems Gets the currently selected items. (Inherited from ListViewBase)
24	SelectedRanges Gets a collection of ItemIndexRange objects that describe the currently selected items in the list. (Inherited from ListViewBase)
25	SelectedValue Gets or sets the value of the selected item, obtained by using the SelectedValuePath. (Inherited from Selector)
26	Style Gets or sets an instance Style that is applied for this object during layout and rendering. (Inherited from FrameworkElement)
27	VerticalAlignment Gets or sets the vertical alignment characteristics that are applied to a FrameworkElement when it is composed in a parent object such as a panel or items control. (Inherited from FrameworkElement)
28	VerticalContentAlignment Gets or sets the vertical alignment of the control's content. (Inherited from Control)
29	Width Gets or sets the width of a FrameworkElement. (Inherited from FrameworkElement)

Events

Given below are the commonly used events in GridView.

Sr.No.	Event & Description
1	DataContextChanged Occurs when the value of the FrameworkElement.DataContext property changes. (Inherited from FrameworkElement)
2	DragEnter Occurs when the input system reports an underlying drag event with this element as the target. (Inherited from UIElement)
3	DragLeave Occurs when the input system reports an underlying drag event with this element as the origin. (Inherited from UIElement)
4	DragOver Occurs when the input system reports an underlying drag event with this element as the potential drop target. (Inherited from UIElement)
5	DragStarting Occurs when a drag operation is initiated. (Inherited from UIElement)
6	Drop Occurs when the input system reports an underlying drop event with this element as the drop target. (Inherited from UIElement)
7	ImageFailed Occurs when there is an error associated with image retrieval or format.
8	ImageOpened Occurs when the image source is downloaded and decoded with no failure. You can use this event to determine the natural size of the image source.
9	KeyDown Occurs when a keyboard key is pressed while the UIElement has focus. (Inherited from UIElement)
10	KeyUp when a keyboard key is released while the UIElement has focus. (Inherited from UIElement)

Methods

Below are the commonly used Methods of GridView.

Sr.No.	Method & Description
1	Arrange Positions child objects and determines a size for a UIElement. Parent objects that implement custom layout for their child elements should call this method from their layout override implementations to form a recursive layout update. (Inherited from UIElement)
2	ClearValue Clears the local value of a dependency property. (Inherited from DependencyObject)
3	FindName Retrieves an object that has the specified identifier name. (Inherited from FrameworkElement)
4	GetValue Returns the current effective value of a dependency property from a DependencyObject. (Inherited from DependencyObject)
5	ReadLocalValue Returns the local value of a dependency property, if a local value is set. (Inherited from DependencyObject)
6	SetBinding Attaches a binding to a FrameworkElement, using the provided binding object. (Inherited from FrameworkElement)
7	SetValue Sets the local value of a dependency property on a DependencyObject. (Inherited from DependencyObject)

Example

The following example shows the data (Name, ID, and Age) contained in a table. Here is the XAML implementation to create and initialize a GridView.

<Window x:Class = "XAMLGridView.MainWindow"
   xmlns = "http://schemas.microsoft.com/winfx/2006/xaml/presentation"
   xmlns:x = "http://schemas.microsoft.com/winfx/2006/xaml"
   Title = "MainWindow" Height = "350" Width = "525">

   <Grid>
      <ListView HorizontalAlignment = "Left"
         Height = "299"Margin = "10,10,0,0"
         VerticalAlignment = "Top" Width = "497"
         Name = "MenList">

         <ListView.View>
            <GridView>
               <GridViewColumn Header = "Name"
                  DisplayMemberBinding = "{Binding Name}" Width = "100"/>

               <GridViewColumn Header = "ID"
                  DisplayMemberBinding = "{Binding ID}" Width = "100"/>

               <GridViewColumn Header = "Age"
                  DisplayMemberBinding = "{Binding Age}" Width = "100"/>

            </GridView>
         </ListView.View>

      </ListView>
   </Grid>
</Window>

Here is the C# implementation to implement a person class.

using System;
using System.Windows;
using System.Windows.Controls;

namespace XAMLGridView {
   /// <summary>
      /// Interaction logic for MainWindow.xaml
   /// </summary>

   public partial class MainWindow : Window {
      public MainWindow() {
         InitializeComponent();
         MenList.Items.Add(new Person() { Name = "Ali", ID = "123A", Age = 20 });
         MenList.Items.Add(new Person() { Name = "Akram", ID = "456X", Age = 35 });
         MenList.Items.Add(new Person() { Name = "Salman", ID = "333E", Age = 49 });
      }
   }
   class Person {
      public string Name { get; set; }
      public string ID { get; set; }
      public int Age { get; set; }
   }
}

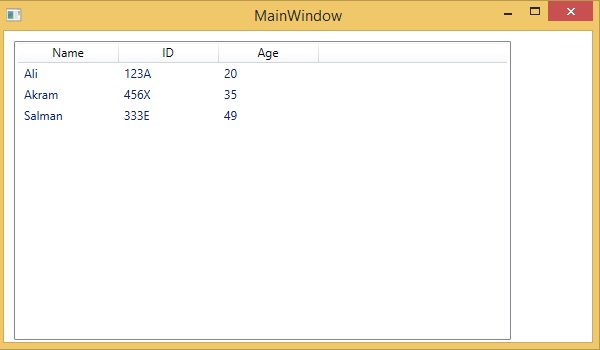

When you compile and execute the above code, it will produce the following output −

We recommend you to execute the above example code and experiment with some other properties and events.
