XAML - ComboBox

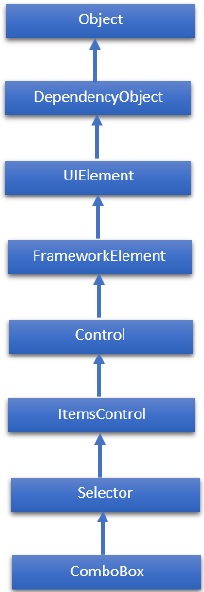

A ComboBox represents a selection control that combines a non-editable textbox and a drop-down list box that allows users to select an item from a list. It either displays the current selection or is empty if there is no selected item. The hierarchical inheritance of ComboBox class is as follows −
Properties
| Sr.No. | Property & Description |
|---|---|
| 1 |
Background Gets or sets a brush that provides the background of the control. (Inherited from Control) |
| 2 |
BorderThickness Gets or sets the border thickness of a control. (Inherited from Control) |
| 3 |
FontFamily Gets or sets the font used to display text in the control. (Inherited from Control) |
| 4 |
FontSize Gets or sets the size of the text in this control. (Inherited from Control) |
| 5 |
FontStyle Gets or sets the style in which the text is rendered. (Inherited from Control) |
| 6 |
FontWeight Gets or sets the thickness of the specified font. (Inherited from Control) |
| 7 |
Foreground Gets or sets a brush that describes the foreground color. (Inherited from Control) |
| 8 |
GroupStyle Gets a collection of GroupStyle objects that define the appearance of each level of groups. (Inherited from ItemsControl) |
| 9 |
Header Gets or sets the content for the control's header. |
| 10 |
Height Gets or sets the suggested height of a FrameworkElement. (Inherited from FrameworkElement) |
| 11 |
HorizontalAlignment Gets or sets the horizontal alignment characteristics that are applied to a FrameworkElement when it is composed in a layout parent, such as a panel or items control. (Inherited from FrameworkElement) |
| 12 |
IsDropDownOpen Gets or sets a value that indicates whether the drop-down portion of the ComboBox is currently open. |
| 13 |
IsEditable Gets a value that indicates whether the user can edit text in the text box portion of the ComboBox. This property always returns false. |
| 14 |
IsEnabled Gets or sets a value indicating whether the user can interact with the control. (Inherited from Control) |
| 15 |
Margin Gets or sets the outer margin of a FrameworkElement. (Inherited from FrameworkElement) |
| 16 |
Name Gets or sets the identifying name of the object. When a XAML processor creates the object tree from XAML markup, run-time code can refer to the XAMLdeclared object by this name. (Inherited from FrameworkElement) |
| 17 |
Opacity Gets or sets the degree of the object's opacity. (Inherited from UIElement) |
| 18 |
SelectedIndex Gets or sets the index of the selected item. (Inherited from Selector) |
| 19 |
SelectedItem Gets or sets the selected item. (Inherited from Selector) |
| 20 |
SelectedValue Gets or sets the value of the selected item, obtained by using the SelectedValuePath. (Inherited from Selector) |
| 21 |
Style Gets or sets an instance Style that is applied for this object during layout and rendering. (Inherited from FrameworkElement |
| 22 |
VerticalAlignment Gets or sets the vertical alignment characteristics that are applied to a FrameworkElement when it is composed in a parent object such as a panel or items control. (Inherited from FrameworkElement) |
| 23 |
Width Gets or sets the width of a FrameworkElement. (Inherited from FrameworkElement) |
| 24 |
ItemsSource Gets or sets an object source used to generate the content of the ItemsControl. (Inherited from ItemsControl) |
Methods
| Sr.No. | Method & Description |
|---|---|
| 1 |
Arrange Positions child objects and determines a size for a UIElement. Parent objects that implement custom layout for their child elements should call this method from their layout override implementations to form a recursive layout update. (Inherited from UIElement) |
| 2 |
FindName Retrieves an object that has the specified identifier name. (Inherited from FrameworkElement) |
| 3 |
Focus Attempts to set the focus on the control. (Inherited from Control) |
| 4 |
GetValue Returns the current effective value of a dependency property from a DependencyObject. (Inherited from DependencyObject) |
| 5 |
IndexFromContainer Returns the index to the item that has the specified, generated container. (Inherited from ItemsControl) |
| 6 |
OnDragEnter Called before the DragEnter event occurs. (Inherited from Control) |
| 7 |
OnDragLeave Called before the DragLeave event occurs. (Inherited from Control) |
| 8 |
OnDragOver Called before the DragOver event occurs. (Inherited from Control) |
| 9 |
OnDrop Called before the Drop event occurs. (Inherited from Control) |
| 10 |
OnKeyDown Called before the KeyDown event occurs. (Inherited from Control) |
| 11 |
OnKeyUp Called before the KeyUp event occurs. (Inherited from Control) |
| 12 |
OnLostFocus Called before the LostFocus event occurs. (Inherited from Control) |
| 13 |
ReadLocalValue Returns the local value of a dependency property, if a local value is set. (Inherited from DependencyObject) |
| 14 |
SetBinding Attaches a binding to a FrameworkElement, using the provided binding object. (Inherited from FrameworkElement) |
| 15 |
SetValue Sets the local value of a dependency property on a DependencyObject. (Inherited from DependencyObject) |
Events
| Sr.No. | Event & Description |
|---|---|
| 1 |
DragEnter Occurs when the input system reports an underlying drag event with this element as the target. (Inherited from UIElement) |
| 2 |
DragLeave Occurs when the input system reports an underlying drag event with this element as the origin. (Inherited from UIElement) |
| 3 |
DragOver Occurs when the input system reports an underlying drag event with this element as the potential drop target. (Inherited from UIElement) |
| 4 |
DragStarting Occurs when a drag operation is initiated. (Inherited from UIElement) |
| 5 |
Drop Occurs when the input system reports an underlying drop event with this element as the drop target. (Inherited from UIElement) |
| 6 |
DropCompleted Occurs when a drag-and-drop operation is ended. (Inherited from UIElement) |
| 7 |
DropDownClosed Occurs when the drop-down portion of the ComboBox closes. |
| 8 |
DropDownOpened Occurs when the drop-down portion of the ComboBox opens. |
| 9 |
GotFocus Occurs when a UIElement receives focus. (Inherited from UIElement) |
| 10 |
IsEnabledChanged Occurs when the IsEnabled property changes. (Inherited from Control) |
| 11 |
KeyDown Occurs when a keyboard key is pressed while the UIElement has focus. (Inherited from UIElement) |
| 12 |
KeyUp Occurs when a keyboard key is released while the UIElement has focus. (Inherited from UIElement) |
| 13 |
LostFocus Occurs when a UIElement loses focus. (Inherited from UIElement) |
| 14 |
SelectionChanged Occurs when the currently selected item changes. (Inherited from Selector) |
| 15 |
SizeChanged Occurs when either the ActualHeight or the ActualWidth property changes value on a FrameworkElement. (Inherited from FrameworkElement) |
Example
The following example contains two comboboxes. The first combobox is a simple one and the second one is editable.
Here is the XAML code in which two comboboxes have been created with some properties.
<Window x:Class = "XAMLComboBox.MainWindow"
xmlns = "http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x = "http://schemas.microsoft.com/winfx/2006/xaml"
Title = "MainWindow" Height = "350" Width = "604">
<Grid>
<ComboBox Height = "20" Width = "100" HorizontalAlignment = "Left" Margin = "116,77,0,212">
<ComboBoxItem Content = "Item #1"/>
<ComboBoxItem Content = "Item #2"/>
<ComboBoxItem Content = "Item #3"/>
</ComboBox>
<ComboBox IsEditable = "True" Height = "20" Width = "100"
HorizontalAlignment = "Right" Margin = "0,77,180,212">
<ComboBoxItem Content = "Item #1"/>
<ComboBoxItem Content = "Item #2"/>
<ComboBoxItem Content = "Item #3"/>
</ComboBox>
</Grid>
</Window>
When you compile and execute the above code, it will produce the following output −
We recommend you to execute the above example code and experiment with some other properties and events.
