# Two-Variable Function Using a 4:1 Multiplexer

Read this article to learn how you can implement a two-variable Boolean function using a 4:1 multiplexer. Let's start with a brief introduction of two-variable Boolean functions and multiplexers.

## What is a Two-Variable Boolean Function?

A two variable Boolean function is a logical expression which has two input variables.
Where, each variable can take either a binary 0 or a binary 1 as its value. A two variable
Boolean function can have 4 possible combinations of variables, i.e. in SOP form, $\bar{A}\bar{B},\bar{A} B,A \bar{B},AB,$ with minterm designations m_{0}, m_{1}, m_{2}, and m_{3}. In POS form,$(A+B),(A+\bar{B}),(\bar{A}+B),(\bar{A}+\bar{B})$ with maxterm designations M_{0}, M_{1}, M_{2}, M_{3}.

## What is a Multiplexer?

In digital electronics, a **multiplexer**, also called **MUX** or **data selector**, is a combinational
logic circuit that accepts multiple data inputs and allows only one of them at a time to pass
through the output line. The multiplexer has select lines to control which data input will pass
through the output line. Depending upon the data input lines, there are several types of
multiplexers such as 2:1 MUX, 4:1 MUX, 8:1 MUX, 16:1 MUX, and so on.

## Introduction to 4:1 Multiplexer

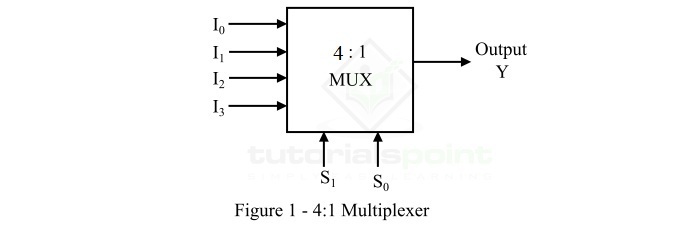

The block diagram of a 4:1 multiplexer is shown in Figure-1.

The 4:1 multiplexer consists of 4 data input lines, i.e. I_{0}, I_{1}, I_{2}, and I_{3}, and two select lines, i.e.
S_{0} and S_{1}. The logic level applied to S_{0} and S_{1} determines which input data will pass through
the output line.

The operation of the 4:1 multiplexer can be understood with the help of its truth table which is given below.

Select Lines | Output | |
---|---|---|

S_{1} |
S_{0} |
Y |

0 | 0 | I_{0} |

0 | 1 | I_{1} |

1 | 0 | I_{2} |

1 | 1 | I_{3} |

As we know, a two variable Boolean function has 4 possible combinations of input variables. Therefore, we can realize any two variable Boolean function using a 4:1 multiplexer.

Now, let us discuss the implementation of a two variable Boolean function using 4:1 MUX along with solved examples.

## Implementation of a Two-Variable Function using a 4:1 Multiplexer

The implementation of a two variable Boolean function using a 4:1 multiplexer involves the following steps −

**Step 1**− Draw the truth table for the given two variable Boolean function.**Step 2**− The two input variables A and B are applied to the select lines S_{1}and S_{0}respectively.**Step 3**− Connect logic 1 to those data input lines where the function is 1 in the truth table.**Step 4**− Connect logic 0 to all the remaining data input lines.

Now, let us understand the realization of a two variable Boolean function using a 4:1 multiplexer with the help of an example.

## Example 1

Use a 4:1 multiplexer to implement the following two variable logic function.

$$F(A+B)=\sum m(0, 1, 3)$$

### Solution

The truth table of the 4:1 multiplexer for the given logic function is as follows −

Select Lines | Output | |
---|---|---|

S_{1} = A |
S_{0} = B |
Y |

0 | 0 | 1 |

0 | 1 | 1 |

1 | 0 | 0 |

1 | 1 | 1 |

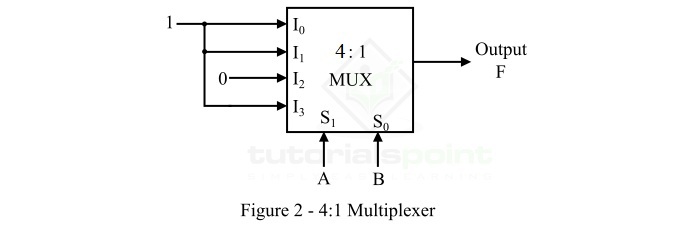

Using this truth table, we can draw the logic block diagram to realize the function F using a 4:1 MUX which is shown in Figure-2.

### Explanation

Here, the inputs A and B are applied to the select lines S_{1}, and S_{0} respectively. From the truth
table, it is clear that the function F = 1, when AB = 00, 01, 11. Thus, we connect logic 1 to
the data input lines I_{0}, I_{1}, and I_{3}, and the logic 0 is connected to the data input line I_{2}.

## Example 2

Implement the following two variable logic function by using a 4:1 MUX.

$$F(A,B)=\sum m(1, 3)$$

### Solution

The truth table of the 4:1 multiplexer for the given logic function is as follows,

Select Lines | Output | |
---|---|---|

S_{1} = A |
S_{0} = B |
Y |

0 | 0 | 0 |

0 | 1 | 1 |

1 | 0 | 0 |

1 | 1 | 1 |

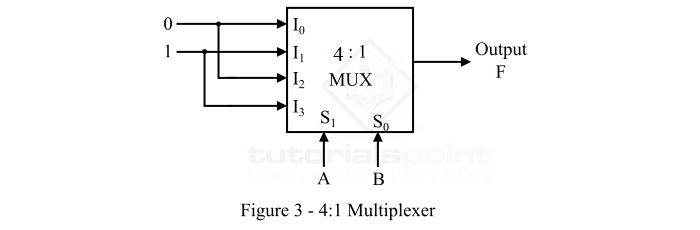

Using this truth table, we can draw the logic block diagram to realize the function F using a 4:1 MUX which is shown in Figure-3.

### Explanation

Here, the inputs A and B are applied to the select lines S_{1}, and S_{0} respectively. From the truth
table, it is clear that the given Boolean function F = 1, when AB = 01, 11. Hence, we connect
logic 1 to the data input lines I_{1} and I_{3}, and the logic 0 is connected to the remaining data
input lines, i.e. I_{0} and I_{2}.

## Conclusion

In this way, we can implement a given two variable logic function with the help of a 4:1 multiplexer. Try to solve the following tutorial problems on implementation of a two variable Boolean function by using a 4:1 multiplexer to understand the concept in more depth.

**Q. 1** − Use a 4:1 multiplexer to implement the following two variable Boolean function.

$$F(x,y)=\sum m(0, 1)$$

**Q. 2** − Implement the following two variable Boolean function using a 4:1 multiplexer.

$$F(A,B)=\sum m(1,2,3)$$

**Q. 3** − Implement the following Boolean function by using 4:1 MUX.

$$F(A,B)=\sum m(0)$$
