How to set my xlabel at the end of X-axis in Matplotlib?
To set the xlabel at the end of X-axis in matplotlib, we can take the following steps −
Create data points for x using numpy.
Using subplot() method, add a subplot to the current figure.
Plot x and log(x) using plot() method.
Set the label on X-axis using set_label() method, with fontsize=16, loc=left, and color=red.
To set the xlabel at the end of X-axis, use the coordinates, x and y.
To display the figure, use show() method.
Example
import numpy as np from matplotlib import pyplot as plt plt.rcParams["figure.figsize"] = [7.00, 3.50] plt.rcParams["figure.autolayout"] = True x = np.linspace(1, 2, 5) ax = plt.subplot() ax.plot(x, np.log(x)) ax.set_xticks(x) label = ax.set_xlabel('X ->', fontsize=16, loc="left", c="red") ax.xaxis.set_label_coords(1.0, -0.025) plt.show()

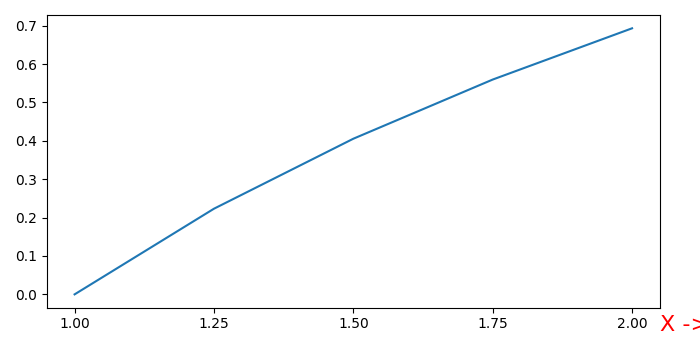

Output
