How to Add One Side Left Border to TextView in Android using XML?

AndroidMobile DevelopmentApps/Applications

This example demonstrate about How to Add One Side Left Border to TextView in Android using XML.

Step 1 − Create a new project in Android Studio, go to File ⇒ New Project and fill all required details to create a new project.

Step 2 − Add the following code to res/layout/activity_main.xml.

<?xml version = "1.0" encoding = "utf-8"?>
<android.support.constraint.ConstraintLayout xmlns:android = "http://schemas.android.com/apk/res/android"
   xmlns:app = "http://schemas.android.com/apk/res-auto"
   xmlns:tools = "http://schemas.android.com/tools"
   android:layout_width = "match_parent"
   android:layout_height = "match_parent"
   tools:context = ".MainActivity">
   <LinearLayout
      android:layout_width = "match_parent"
      android:layout_height = "wrap_content"
      android:background = "@drawable/text_style"
      app:layout_constraintBottom_toBottomOf = "parent"
      app:layout_constraintLeft_toLeftOf = "parent"
      app:layout_constraintRight_toRightOf = "parent"
      app:layout_constraintTop_toTopOf = "parent">
      <TextView
         android:layout_width = "match_parent"
         android:layout_height = "wrap_content"
         android:layout_marginLeft = "10dp"
         android:text = "Hello World!"
         android:textSize = "30sp" />
   </LinearLayout>
</android.support.constraint.ConstraintLayout>

In the above code we have taken textview and linear layout. In Linear layout we have added background as text_style. So create a file called text_style.xml in drawable as shown below –

<?xml version = "1.0" encoding = "utf-8"?>
<layer-list xmlns:android = "http://schemas.android.com/apk/res/android">
   <item>
      <shape android:shape = "rectangle">
         <solid android:color = "#FFEB3B"/>
      </shape>
   </item>
   <item android:left = "4dp">
      <shape android:shape = "rectangle">
         <solid android:color = "#FFF"/>
      </shape>
   </item>
</layer-list>

Step 3 − Add the following code to src/MainActivity.java

package com.example.andy.myapplication;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
public class MainActivity extends AppCompatActivity {
   @Override
   protected void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState);
      setContentView(R.layout.activity_main);
   }
}

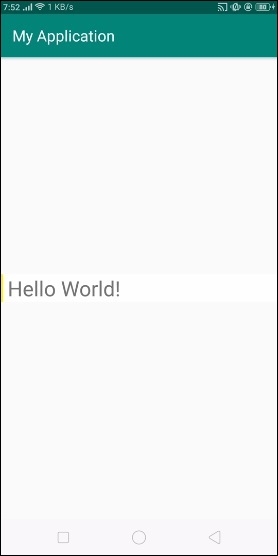

Let's try to run your application. I assume you have connected your actual Android Mobile device with your computer. To run the app from android studio, open one of your project's activity files and click Run  icon from the toolbar. Select your mobile device as an option and then check your mobile device which will display your default screen –

In the above code, it shown one side border for textview.

Click here to download the project code
