DFA refers to deterministic finite automata. Deterministic refers to the uniqueness of the computation. The finite automata are deterministic FA, if the machine reads an input string one symbol at a time.

In DFA, there is only one path input from the current state to the next state. It does not accept the null move, i.e. it cannot change state without any input. It can contain multiple final states. It is used in Lexical Analysis in compilers.

A Deterministic Finite automata (DFA) is a collection of defined as a 5-tuples and is as follows −

**M=(Q, Σ, δ,q0,F)**

Where,

- Q: Finite set called states.
- Σ: Finite set called alphabets.
- δ: Q × Σ → Q is the transition function.
- q0 ∈ Q is the start or initial state.
- F: Final or accept state.

A DFA can be represented by digraphs called state diagrams.

The following factors are considered in DFA −

- The state is represented by vertices.
- The arc labelled with an input character shows the transitions.
- The initial state is represented with an arrow.
- The final state is represented by a double circle.

If a transition goes to a state from which it can never escape. Such a state is called a trap state. It is called the dead state.

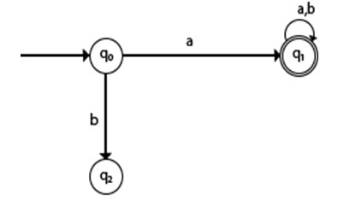

In the above example, q2 is a trap or dead state because it can’t reach the final state.

The different applications of deterministic finite automata are as follows −

- Protocol analysis text parsing.
- Video game character behavior.
- Security analysis.
- CPU control units.
- Natural language processing Speech recognition, etc.

Construct transition table of DFA for a given diagram.

Q= {q0,q1,q2}

Σ ={0,1}

q0= {q0}

F= {q2}

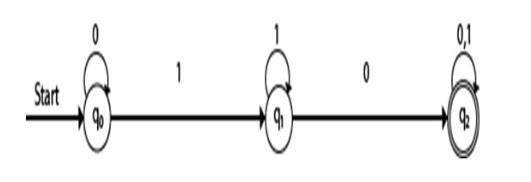

The transition diagram is as follows −

The transition table is as follows −

Present state | Next state for input 0 | Next state for input 1 |
---|---|---|

->q0 | q0 | q1 |

q1 | q2 | q1 |

*q2 | q2 | q2 |

- Step 1 − In the above table q0 is the initial state, on input ‘0’ the q0 state goes to itself and on input ‘1’ it goes to state q1.
- Step 2 − q1 is the intermediate state, on input ‘0’ q1 goes to q2 state and on input ‘1’, q1 goes to itself.
- Step 3 − q2 is the final state, q2 on ‘0’ goes to q2 itself and input ‘1’ goes to q2 itself.
