# What is Finite Automata in Compiler Design?

An automata is an abstract model of digital computers with discrete inputs and outputs. Every automata include a mechanism for reading inputs. It is considered that input is a string over a given alphabet, written on an input file that the automata can read. The input file is divided into smaller parts known as cells.

It is a Machine or a Recognizer for a language that is used to check whether a language accepts the string or not. In **Finite Automata, Finite** means a finite number of states and Automata means the **Automatic** Machine which works without any interference of human beings. A finite automata consist of a set of finite states and a set of transitions from state to state that appears on input symbols chosen from an alphabet $\sum$.

## Representation of Finite Automata

There are two ways to represent finite Automata −

Transition Diagram

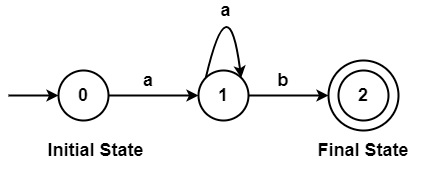

It is a directed graph or flow chart having states and edges.

**Example**

0, 1, 2→States 0 →Initial State 2→Final State a,b→Input Symbols

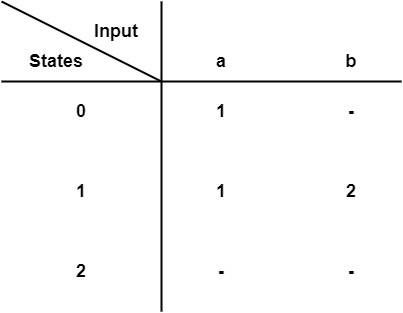

Transition Table

Finite Automata can be represented by 5 tuples (Q,∑,$\delta$,q_{0},F)

- Q is a finite non-empty set of states.
- $\sum$ is a finite set of input symbols.
- $\delta$ is the transition function.
- q
_{0}∈ Q is the initial state. - F $\subseteq$ Q is the set of final states.

**Example** − Design Finite Automata which accepts string "abb".

**Solution:**

States: Q= {q_{0},q_{1},q_{2},q_{3}}

Input Symbols: $\sum$ ={a,b}

Transition Function $\delta$: {$\delta$ (q_{0},𝑎)=q_{1},$\delta$(q_{1},𝑏)=q_{2},$\delta$(q_{2},b)=q_{3}}

Initial State: q_{0}

Final State (F) : {q3}

## Types of Finite Automata

There are two types of finite automata which are as follows −

**Deterministic Finite Automata (DFA)**

"Deterministic" means that on each input there is one and only one state to which the automata can have the transition from its current state.

DFA can be represented by 5 tuples (Q,$\sum$,$\delta$,q_{0},F)

- Q is a finite non-empty set of states.
- ∑ is a finite set of input symbols.
- $\delta$ is a transition function to move from the current state to the next state.

∴ $\delta$:Q x Σ → Q

- q
_{0}∈ Q is the initial state. - F $\subseteq$ Q is the set of final states.
**Non-Deterministic Finite Automata (NFA)**

"Non-Deterministic" means that there can be several possible transitions. So, the output is non-deterministic for a given input.

NFA can be represented by 5 tuples (Q,$\sum$,$\delta$,q_{0},F)

- Q is a finite non-empty set of states.
- ∑ is a finite set of input symbols.
- $\delta$ is the transition function to move from the current state to the next state.

∴ $\delta$:Q x $\sum$ → 2^{Q}

- q
_{0}∈ Q is the initial state. - F $\subseteq$ Q is the set of final states.
