Program to find largest sum of any path of a binary tree in Python

Suppose we have a binary tree, we have to find the largest sum of any path that goes from the root node to the leaf node.

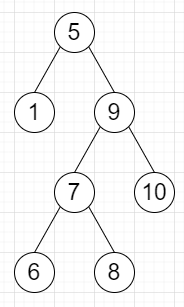

So, if the input is like ?

Then the output will be 29 as from root, if we follow the path 5 ? 9 ? 7 ? 8 it will be 29 after addition.

Algorithm

To solve this, we will follow these steps ?

• Define a function walk(). This will take node and current sum s

• If node is null, then

  • max_sum := maximum of max_sum and s

  • return

• s := s + data of node

• walk(left of node, s)

• walk(right of node, s)

• From the main method do the following ?

• max_sum := 0

• walk(root, 0)

• return max_sum

Implementation

class TreeNode:
    def __init__(self, data, left=None, right=None):
        self.data = data
        self.left = left
        self.right = right

class Solution:
    def walk(self, node, s):
        if not node:
            self.max_sum = max(self.max_sum, s)
            return

        s += node.data
        self.walk(node.left, s)
        self.walk(node.right, s)

    def solve(self, root):
        self.max_sum = 0
        self.walk(root, 0)
        return self.max_sum

# Create the binary tree
ob = Solution()
root = TreeNode(5)
root.left = TreeNode(1)
root.right = TreeNode(9)
root.right.left = TreeNode(7)
root.right.right = TreeNode(10)
root.right.left.left = TreeNode(6)
root.right.left.right = TreeNode(8)

print(ob.solve(root))

The output of the above code is ?

29

How It Works

The algorithm uses depth-first search (DFS) to traverse all possible root-to-leaf paths. When it reaches a leaf node (null), it compares the current path sum with the maximum sum found so far. The recursive function explores both left and right subtrees, ensuring all paths are considered.

Example Walkthrough

For the given tree, the algorithm explores these paths ?

• 5 ? 1 = 6

• 5 ? 9 ? 7 ? 6 = 27

• 5 ? 9 ? 7 ? 8 = 29 (maximum)

• 5 ? 9 ? 10 = 24

Conclusion

This solution efficiently finds the maximum root-to-leaf path sum using DFS traversal. The time complexity is O(n) where n is the number of nodes, and space complexity is O(h) where h is the height of the tree due to recursive calls.
