Normal Forms in DBMS

Normalization is a process of organizing data in a database to reduce redundancy and improve data consistency. Primary keys are really important in organizing information in a database. They help to make sure that every row in a table has a unique identification so that nothing gets mixed up or lost.

In this article, we will discuss the different normal forms of database normalization.

Normalization

Normalization is a process of organizing the data in database to avoid data redundancy, insertion anomaly, update anomaly & deletion anomaly.

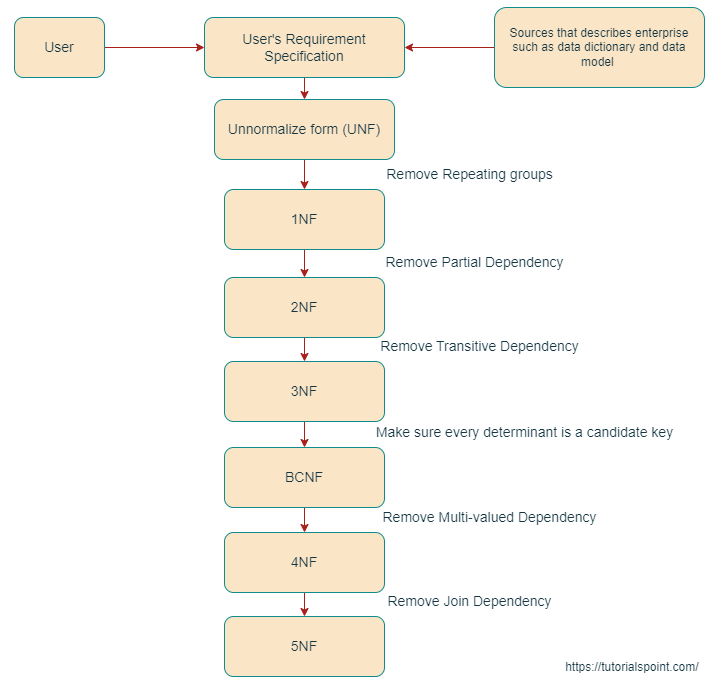

Normalization is the process of organizing data in a database to minimize redundancy and dependency. In database design, there are different normal forms based on the primary keys of a table. These include −

First Normal Form (1NF)

1NF requires that each column in a table contains atomic values and that each row is uniquely identified. This means that a table cannot have repeating groups or arrays as columns, and each row must have a unique primary key.

Example

A table is in 1NF if each column contains atomic values and each row is uniquely identified. For example, a table that lists customers and their phone numbers −

Customer ID	Name	Phone Numbers
1	John	555-1234, 555-5678
2	Jane	555-9876
3	Michael	555-5555

This violates 1NF because the Phone Numbers column contains repeating groups.

To normalize this table to 1NF, we can split the Phone Numbers column into separate rows and add a separate primary key column −

Customer ID	Name	Phone Number
1	John	555-1234
1	John	555-5678
2	Jane	555-9876
3	Michael	555-5555

Second Normal Form (2NF)

2NF builds on 1NF by requiring that each non-primary key column in a table is fully functionally dependent on the primary key. This means that a table should not have partial dependencies, where a non-primary key column depends on only part of the primary key.

Example

A table is in 2NF if each non-primary key column is fully functionally dependent on the primary key. For example, a table that lists orders and their line items:

Order ID	Customer ID	Customer Name	Item ID	Item Name	Quantity
1	1	John	1	Shirt	2
1	1	John	2	Pants	1
2	2	Jane	1	Shirt	1
2	2	Jane	3	Hat	3

This violates 2NF because the Customer Name column depends on only part of the primary key (Customer ID). To normalize this table to 2NF, we can split it into two tables −

Order ID	Customer ID	Item ID	Quantity
1	1	1	2
1	1	2	1
2	2	1	1
2	2	3	3

Customer ID	Customer Name
1	John
2	Jane

Third Normal Form (3NF)

3NF builds on 2NF by requiring that each non-primary key column in a table is not transitively dependent on the primary key. This means that a table should not have transitive dependencies, where a non-primary key column depends on another non-primary key column.

Example

To explain 3NF further, let's consider an example of a table that lists customer orders −

Order ID	Customer ID	Customer Name	Customer City	Order Date	Order Total
1	100	John Smith	New York	2022-01-01	100
2	101	Jane Doe	Los Angeles	2022-01-02	200
3	102	Bob Johnson	San Francisco	2022-01-03	300

In this example, the non-primary key column "Customer City" is transitively dependent on the primary key. That is, it depends on "Customer ID", which is not part of the primary key, instead of depending directly on the primary key "Order ID". To bring this table to 3NF, we can split it into two tables −

Table 1: Customers

Customer ID	Customer Name	Customer City
100	John Smith	New York
101	Jane Doe	Los Angeles
102	Bob Johnson	San Francisco

Table 2: Orders

Order ID	Customer ID	Order Date	Order Total
1	100	2022-01-01	100
2	101	2022-01-02	200
3	102	2022-01-03	300

Now, the "Customer City" column is no longer transitively dependent on the primary key and is instead in a separate table that has a direct relationship with the primary key. This makes the table 3NF-compliant.

Boyce-Codd Normal Form (BCNF)

BCNF is a stricter form of 3NF that applies to tables with more than one candidate key. BCNF requires that each non-trivial dependency in a table is a dependency on a candidate key. This means that a table should not have non-trivial dependencies, where a non-primary key column depends on another non-primary key column. BCNF ensures that each table in a database is a separate entity and eliminates redundancies.

Example

A table is in BCNF if each determinant is a candidate key. In other words, every non-trivial functional dependency in the table must be on a candidate key. For example, consider a table that lists information about books and their authors −

Table: Books

Book ID	Title	Author ID	Author Name	Author Nationality
1	Crime and Punishment	100	Fyodor Dostoevsky	Russian
2	The Great Gatsby	101	F. Scott Fitzgerald	American
3	Pride and Prejudice	102	Jane Austen	British

In this example, the functional dependency between "Author ID" and "Author Name" violates BCNF because it is not on a candidate key. To bring this table to BCNF, we can split it into two tables −

Table 1: Authors

Author ID	Author Name	Author Nationality
101	Fyodor Dostoevsky	Russian
101	F. Scott Fitzgerald	American
102	Jane Austen	British

Table 2: Books

Book ID	Title	Author ID
1	Crime and Punishment	100
2	The Great Gatsby	101
3	Pride and Prejudice	102

Now, the "Author Name" and "Author Nationality" columns are not transitively dependent on the primary key, and the table is in BCNF.

Fourth Normal Form (4NF)

4NF builds on BCNF by requiring that a table should not have multi-valued dependencies. A multi-valued dependency occurs when a non-primary key column depends on a combination of other non-primary key columns. For example, a table that lists customer orders with a primary key of order ID and non-primary key columns for customer ID and order items violates 4NF because order items depend on both order ID and customer ID.

For example, a table that lists orders and their products, with columns for order ID, product ID, and product details, violates 4NF because the product details depend on the combination of order ID and product ID.

Example

Consider the following table of orders and products

Order ID	Product ID	Product Name	Product Description
1	100	Widget	Red Widget
1	200	Widget	Blue Widget
2	100	Widget	Red Widget
2	300	Thing	Green Thing
3	200	Widget	Blue Widget
3	300	Thing	Green Thing

In this table, the product name and description depend on both the order ID and product ID, creating a multi-valued dependency. To bring the table into 4NF, we can split it into three tables −

Order ID	Product ID
1	100
1	200
2	100
2	300
3	200
3	300

Product ID	Product Name
100	Widget
200	Widget
300	Thing

Product ID	Product Description
100	Red Widget
200	Blue Widget
300	Green Thing

Advantages and Disadvantages of Normalization

Advantages of Normalization

• Reduced Data Redundancy

• Improved Data Consistency

• Simplified Database Maintenance

• Improved Query Performance

Disadvantages of Normalization

• Increased Complexity

• Decreased Read Performance

• Increased Write Performance

• Increased Storage Space

• Over-Normalization

Conclusion

So, we have explained the concept of normalization in database management systems (DBMS) and its importance in data management. We covered different normal forms of database normalization, including 1NF, 2NF, 3NF, BCNF, and 4NF. We explained how normalization helps eliminate data redundancy, insertion, update, and deletion anomalies. We have also provided examples of tables in different normal forms and how to normalize them to the desired normal form. We have written about the importance of normalization in ensuring data consistency and accuracy in DBMS.
