Espresso Testing Framework - Test Recorder


Writing test case is a tedious job. Even though espresso provides very easy and flexible API, writing test cases may be a lazy and time-consuming task. To overcome this, Android studio provides a feature to record and generate espresso test cases. Record Espresso Test is available under the Run menu.

Let us record a simple test case in our HelloWorldApp by following the steps described below,

  • Open the Android studio followed by HelloWorldApp application.

  • Click RunRecord Espresso test and select MainActivity.

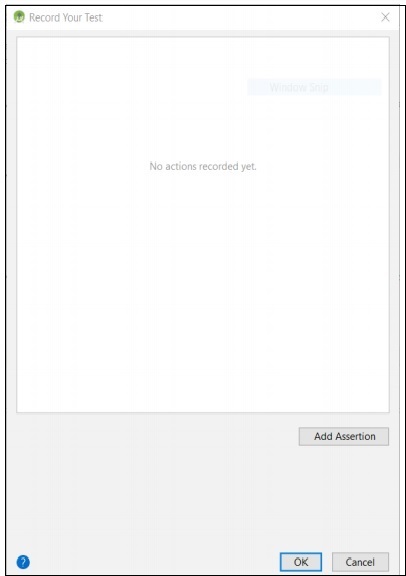

  • The Recorder screenshot is as follows,

Recorder Screenshot

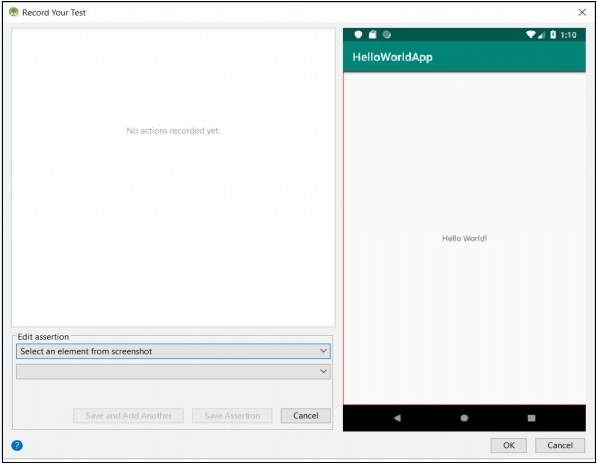

  • Click Add Assertion. It will open the application screen as shown below,

Screen As Shown

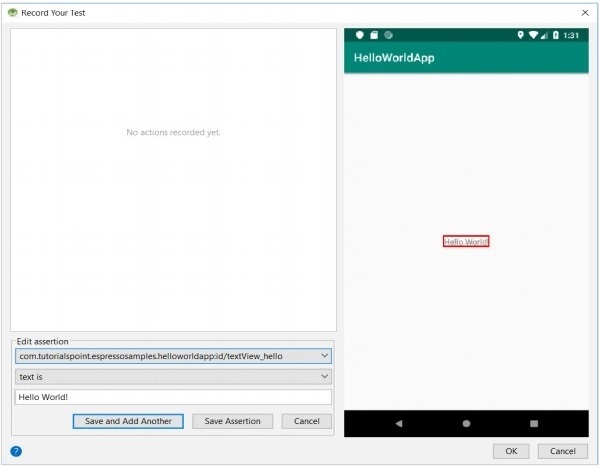

  • Click Hello World!. The Recorder screen to Select text view is as follows,

Recorder Screen

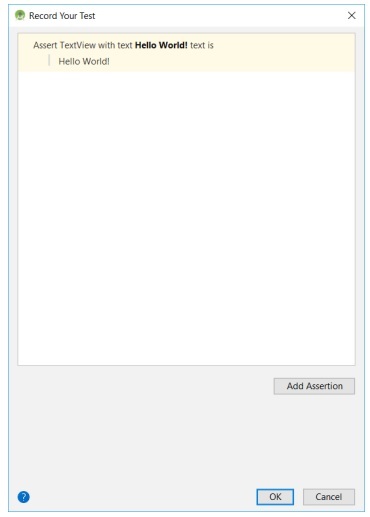

  • Again click Save Assertion This will save the assertion and show it as follows,

  • Click OK. It will open a new window and ask the name of the test case. The default name is MainActivityTest

  • Change the test case name, if necessary.

  • Again, click OK. This will generate a file, MainActivityTest with our recorded test case. The complete coding is as follows,

package com.tutorialspoint.espressosamples.helloworldapp;

import android.view.View;
import android.view.ViewGroup;
import android.view.ViewParent;

import org.hamcrest.Description;
import org.hamcrest.Matcher;
import org.hamcrest.TypeSafeMatcher;
import org.junit.Rule;
import org.junit.Test;
import org.junit.runner.RunWith;

import androidx.test.espresso.ViewInteraction;
import androidx.test.filters.LargeTest;
import androidx.test.rule.ActivityTestRule;
import androidx.test.runner.AndroidJUnit4;

import static androidx.test.espresso.Espresso.onView;
import static androidx.test.espresso.assertion.ViewAssertions.matches;
import static androidx.test.espresso.matcher.ViewMatchers.isDisplayed;
import static androidx.test.espresso.matcher.ViewMatchers.withId;
import static androidx.test.espresso.matcher.ViewMatchers.withText;
import static org.hamcrest.Matchers.allOf;

public class MainActivityTest {
   public ActivityTestRule<MainActivity> mActivityTestRule = new ActivityTestRule<>(MainActivity.class);
   public void mainActivityTest() {
      ViewInteraction textView = onView(
         allOf(withId(, withText("Hello World!"),
      textView.check(matches(withText("Hello World!")));
   private static Matcher<View> childAtPosition(
      final Matcher<View> parentMatcher, final int position) {
      return new TypeSafeMatcher<View>() {
         public void describeTo(Description description) {
            description.appendText("Child at position " + position + " in parent ");
         public boolean matchesSafely(View view) {
            ViewParent parent = view.getParent();
            return parent instanceof ViewGroup &&
               parentMatcher.matches(parent)&& view.equals(((ViewGroup)
  • Finally, run the test using context menu and check whether the test case run.
