A Game Using Javascript β Fire the bullets
This game is made using JavaScript and the game lab of code.org.
The game Story/Rules/Intrroduction
The player has to move the commando by pressing the UP, DOWN, LEFT and RIGHT arrow keys and make the commando escape the walled area. To go out of the door the commando needs to find the right key. One of the key is of the door. The keys are placed in the protected area. The commando needs to reach the door while picking the right key. Lots are fire tanks are seen in the walled area. If the commando is in range of any of these tanks the bullets will be fired and the commando can die. But the commando has a shield which can be made on by pressing the βsβ key and can save the commando from the bullets. However, the shield will remain on for a small duration. The challenge for the player is to make the commando reach out of the door saving the sodier from the bullets and win this game. The game is very simple and has all the features of the required game design. It has a balanced combination of skill and randomness. It is neither too easy nor too difficult to play. The instant feedback appears visually on the screen. Once the bullet is fired on the commando, the player loses and the game can be restarted.
The Game Design Steps (Folders and Files)
The various steps are listed below
Step 1 β Make a new folder. Name it firethebulletsgame. Now save or create all the small size pictures as given in the section below called βpic usedβ.
Step 2 β Use βhttps://photoscissors.com/β or any other background removal software to remove the background of all the pictures.
Step 3 β Go to code.org. Sign up or login to it.
Step 4 β Start a new project by choosing Game Lab. Upload all the images by going to Animation Tab -> New Animation -> Upload Image

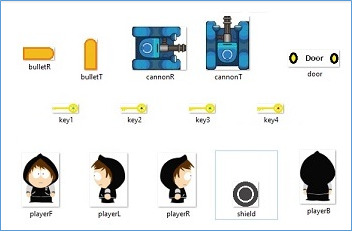

Pics Used
The Main Game Design Steps
The following steps are required for gaming design
Step 1 β Declare the variables and create spites for player(commando), shield, keys, door, walls, tanks(enemy soldiers) and set the animation
Step 2 β Using random function set a key as the right key.
Step 3 β Write the code for moving the player, using the arrow keys .
Step 4 β Create these functions draw(), throwBullet(), hitBullet(), pickthekey() and result().
Step 5 β Write the conditions, if the commando will collide with keys he will pick those keys.
Step 6 β Write the conditions, if the commando is dead, the player will get a βYou loseβ message.
Step 7 β Write the conditions, if the commando will collide with door with the right key, he will receive the Win message.
Code for the commando game
var gameState = 0;
var playerAlive = true;
var bullet1,bullet2,bullet3,bullet4;
var bulletGroup = createGroup();
var rand = randomNumber(1,4);
var rightKey = 0;
var workingBullet = true;
var time = 200;
//player
var commando = createSprite(40,365,30,30);
commando.setAnimation("playerR");
commando.scale = 0.1;
commando.setCollider("circle",0,0,200);
//shield
var shield = createSprite(commando.x,commando.y,50,50);
shield.setAnimation("shield");
shield.visible = false;
//door
var door1=createSprite(300,10,50,50);
//keys
var key1=createSprite(110,300,10,10);
var key2=createSprite(290,210,10,10);
var key3=createSprite(90,190,10,10);
var key4=createSprite(50,100,10,10);
//walls
var wall1 = createSprite(131,10,255,10);
var wall2 = createSprite(366,10,48,10);
var wall3 = createSprite(5,200,10,380);
var wall4 = createSprite(395,200,10,380);
var wall5 = createSprite(235,390,330,10);
var wall6 = createSprite(200,280,260,10);
var wall7 = createSprite(100,227,200,10);
var wall8 = createSprite(265,70,10,100);
var wall9 = createSprite(135,65,135,10);
var wall10 = createSprite(35,120,75,10);
var wall11 = createSprite(296,120,72,10);
var wall12 = createSprite(70,92,10,65);
var wall13 = createSprite(330,92,10,65);
var wall14 = createSprite(70,200,10,62);
var wall15 = createSprite(200,201,10,62);
var wall16 = createSprite(264,200,10,62);
var wall17 = createSprite(264,306,10,62);
var wall18 = createSprite(166,120,72,10);
var wall19 = createSprite(102,174,72,10);
var wall20 = createSprite(135,148,10,60);
var wall21 = createSprite(297,174,72,10);
var wall22 = createSprite(135,310,10,60);
var wall23 = createSprite(200,365,10,60);
var wall24 = createSprite(330,365,10,60);
var wall25 = createSprite(330,226,125,10);
var wall26 = createSprite(70,335,125,10);
//adding walls to an array
var walls = [wall1,wall2,wall3,wall4,wall5,wall6,wall7,wall8,wall9,wall10,wall11,wall12,wall13,wall14,wall15,wall16,wall17,wall18,wall19,wall20,wall21,wall22,wall23,wall24,wall25,wall26];
//soldiers
var sol1 = createSprite(100,95,30,30);
var sol2 = createSprite(30,250,30,30);
var sol3 = createSprite(360,360,30,30);
var sol4 = createSprite(300,95,30,30);
function draw() {
background("white");
//start text
noStroke();
fill(0);
textSize(15);
text("Start",25,395);
//door animation
door1.setAnimation("door");
//keys animation
key1.setAnimation("key1");
key1.scale = 0.5;
key2.setAnimation("key2");
key2.scale = 0.5;
key3.setAnimation("key3");
key3.scale = 0.5;
key4.setAnimation("key4");
key4.scale = 0.5;
//guns animations
sol1.setAnimation("cannonR");
sol1.scale = 0.125;
sol2.setAnimation("cannonR");
sol2.scale = 0.125;
sol3.setAnimation("cannonT");
sol3.scale = 0.125;
sol4.setAnimation("cannonT");
sol4.scale = 0.125;
// wall's function
for(var n = 0;n<26;n++){
walls[n].shapeColor = "black";
if(commando.isTouching(walls[n])){
commando.collide(walls[n]);
shield.collide(walls[n]);
}
}
pickthekey();
//movement of the player
//making the shield change its position according to the player
if(keyDown(UP_ARROW)){
commando.y = commando.y - 10;
shield.y = commando.y;
commando.setAnimation("playerB");
}
if(keyDown(DOWN_ARROW)){
commando.y = commando.y + 10;
shield.y = commando.y;
commando.setAnimation("playerF");
}
if(keyDown(LEFT_ARROW)){
commando.x = commando.x - 10;
shield.x = commando.x;
commando.setAnimation("playerL");
}
if(keyDown(RIGHT_ARROW)){
commando.x = commando.x + 10;
shield.x = commando.x;
commando.setAnimation("playerR");
}
//throwing bullets only when the player is alive
if(playerAlive===true){
throwBullet();
}
//using shield
if(keyWentDown("s") && playerAlive === true){
gameState = 1;
shield.visible =true;
workingBullet = false;
time = 200;
}
//making shield disappear
if(shield.visible === true){
time--;
}
if(time === 0){
shield.visible = false;
workingBullet = true;
}
//calling functons
hitBullet();
result();
drawSprites();
}
function throwBullet(){
//workingBullet = true;
if(commando.x<390 && commando.x>330 && commando.y<330 && commando.y>230){
if (World.frameCount%40===0){
bullet1 = createSprite(360,340,10,10);
bullet1.scale = 0.3;
bullet1.setAnimation("bulletT");
bullet1.velocityY= -12;
bulletGroup.add(bullet1);
}
}
if(commando.x<390 && commando.x>40 && commando.y<275 && commando.y>230){
if (World.frameCount%40===0){
bullet2 = createSprite(50,250,10,10);
bullet2.scale = 0.3;
bullet2.setAnimation("bulletR");
bullet2.velocityX= 9;
bulletGroup.add(bullet2);
}
}
if(commando.x<260 && commando.x>115 && commando.y<115 && commando.y>70){
if (World.frameCount%40===0){
bullet3 = createSprite(120,95,10,10);
bullet3.scale = 0.3;
bullet3.setAnimation("bulletR");
bullet3.velocityX= 9;
bulletGroup.add(bullet3);
}
}
if(commando.x<325 && commando.x>270 && commando.y<115 && commando.y>15){
if (World.frameCount%40===0){
bullet4 = createSprite(300,75,10,10);
bullet4.scale = 0.3;
bullet4.setAnimation("bulletT");
bullet4.velocityY= -12;
bulletGroup.add(bullet4);
}
}
}
function result(){
if(rightKey > 0 && commando.isTouching(door1)){
textSize(20);
text("You Win!!",30,30);
commando.visible = false;
door1.visible = false;
shield.visible = false;
}
if(playerAlive === false){
textSize(20);
text("You Lose!!",30,30);
}
if(playerAlive === true && rightKey === 0 && commando.isTouching(door1)){
textSize(20);
text("Get the Right Key",30,30);
}
}
function hitBullet(){
if(bulletGroup.isTouching(commando) && workingBullet === true){
commando.destroy();
playerAlive = false;
}else if(workingBullet === false && bulletGroup.isTouching(commando)){
bulletGroup.destroyEach();
}
}
function pickthekey(){
//defining the conditions for a key to be the right one to open the door
if(commando.isTouching(key1)){
if(rand === 1){
rightKey = 1;
}
key1.destroy();
}
if(commando.isTouching(key2)){
if(rand === 2){
rightKey = 2;
}
key2.destroy();
}
if(commando.isTouching(key3)){
if(rand === 3){
rightKey = 3;
}
key3.destroy();
}
if(commando.isTouching(key4)){
if(rand === 4){
rightKey = 4;
}
key4.destroy();
}
}
Output

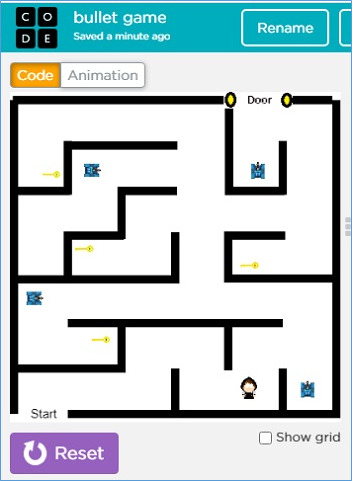

The following image given here shows the player moving the commando.
Fig 1: Moving the commando by using Up, Down, Left and Right arrows.
Fig 2: Showing the result with the message βYou Lose!!β, if the player loses the game
Conclusion
In this game development article, the complete steps for making a simple beginner level game is given. This game can be used as an example to put together all the basic steps required to learn javascript. This game has all the major game design features that are needed for making the game engaging and challenging for the player. This game is made on code.org using the game lab. The instant feedback in the game is shown visually as well as in form of text message.
