# 8085 Program to find the HCF of two given bytes

In this program we will see how to find the HCF or GCD of two numbers using 8085.

### Problem Statement

Write 8085 Assembly language program to find the HCF of two numbers stored at memory location 8000H and 8001H.

### Discussion

This problem is solved by the Euclidean algorithm to find HCF. This algorithm is very simple.The algorithm steps are as follows −

If first number and second number are same, then

- go to step 3.

Else if first number < second number, then

- exchange no1 andno2.

first-number <-first-number – second-number; go to step 1

Display result as first-number

The values are stored at location 8000H and 8001H, and the result will be stored at location8050H.

### Input

**First Input**

Address | Data |
---|---|

... | ... |

8000 | 2D |

8001 | 69 |

... | ... |

8050 | 0F |

... | ... |

**Second Input**

Address | Data |
---|---|

... | ... |

8000 | 25 |

8001 | 35 |

... | ... |

8050 | 01 |

... | ... |

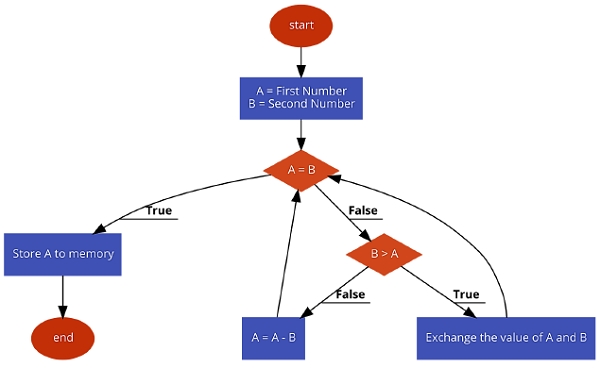

### Flow Diagram

### Program

Address | HEXCodes | Labels | Mnemonics | Comments |
---|---|---|---|---|

F000 | 21, 00, 80 | LXI H,8000H | Point to the first number | |

F003 | 7E | MOV A, M | Load the first number into Acc | |

F004 | 23 | INX H | Point to next location | |

F005 | 46 | MOV B, M | Load the second number | |

F006 | B8 | LOOP | CMP B | Compare B with A |

F007 | CA, 17, F0 | JZ STORE | When A and Bare same, store the result | |

F00A | DA, 11, F0 | JC EXG | If B > A, then exchange B and A | |

F00D | 90 | SUB B | if B < A,subtract B from A | |

F00E | C3, 06, F0 | JMP LOOP | Jump to LOOP | |

F011 | 48 | EXG | MOV C,B | Load C with B |

F012 | 47 | MOV B, A | Move A to B | |

F013 | 79 | MOV A, C | Move C to A | |

F014 | C3, 06, F0 | JMP LOOP | Jump to LOOP | |

F017 | 32, 50, 80 | STORE | STA 8050H | Store the value into memory |

F01A | 76 | HLT | Terminate the program |

### Output

**First Output**

Address | Data |
---|---|

... | ... |

8050 | 0F |

... | ... |

**Second Output**

Address | Data |
---|---|

... | ... |

8050 | 01 |

... | ... |
