What is Unipolar Encoding?

Unipolar encoding is a digital transmission scheme that uses only one polarity (positive or negative) to represent binary data. In this encoding method, one voltage level represents binary '1' and zero voltage represents binary '0'.

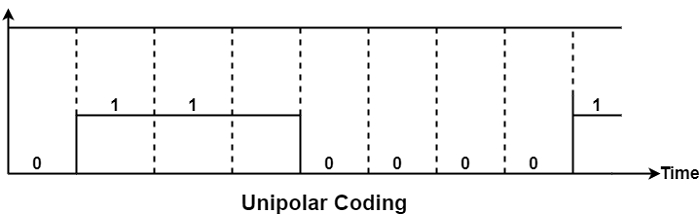

The term "unipolar" refers to the use of a single polarity for signal transmission. Typically, a positive voltage pulse represents binary '1', while binary '0' is represented by zero voltage (no pulse). This makes unipolar encoding one of the simplest and most cost-effective digital encoding schemes.

Characteristics of Unipolar Encoding

• Simple implementation − Uses only positive voltage and zero voltage levels

• Cost-effective − Requires minimal hardware components

• Single polarity − Works with only one voltage polarity (typically positive)

• Binary representation − '1' = +V, '0' = 0V

Disadvantages of Unipolar Encoding

DC Component

Unipolar encoding creates a significant DC component because the average signal amplitude is non-zero. This DC component (a component with zero frequency) prevents the signal from passing through media that cannot handle DC components, such as transformers and AC-coupled systems.

Synchronization Problems

When the signal remains constant (e.g., a long sequence of 0's), the receiver cannot determine where one bit ends and another begins. This synchronization issue occurs because there are no signal transitions to mark bit boundaries.

For example, if the expected bit rate is 1000 bps (one bit per 0.001 second) and the receiver detects a positive voltage lasting 0.006 seconds, it should interpret this as six consecutive '1' bits. However, clock drift between sender and receiver can cause timing errors, leading to incorrect bit interpretation.

Comparison with Other Encoding Schemes

Conclusion

Unipolar encoding is a simple digital transmission scheme using only one polarity, but it suffers from DC component issues and synchronization problems. Despite its simplicity and low cost, these limitations make it unsuitable for many modern communication systems.
