Program to alternately display 00 and FF in the data field in 8085 Microprocessor
Here we will see one 8085 microprocessor program. This program will generate 00H and FFH alternatively.
Problem Statement −
Write an 8085 Assembly language program that can generate 00H and FFH alternatively.
Discussion −
The 00H and FFH are changed alternatively in each second. So we need one second delay. We have created delay subroutine to generate 1s delay.
Note: Here for simplicity we are storing the numbers into memory. To show the numbers, we can use 7 – segment display and other display function for showing it into the display.
Input
Here we are not providing any input.

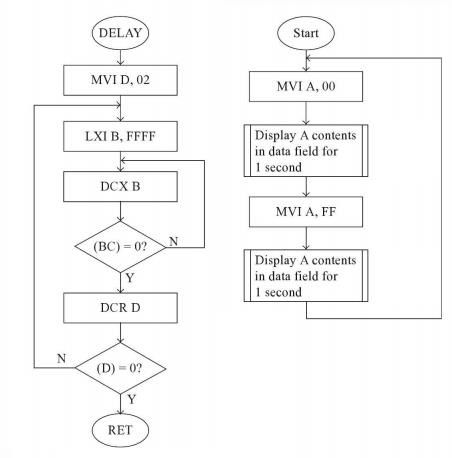

Flow Diagram
Program
Address | HEX Codes | Labels | Mnemonics | Comments |
---|---|---|---|---|
F000 | AF | LOOP | XRA A | Clear A register |
F001 | 32, 50, 80 | | STA 8050H | Store 00H at 8050H |
F004 | CD, 11, F0 | | CALL DELAY | Wait for 1 second |
F007 | 3D | | DCR A | Decrease A to get FFH |
F008 | 32, 50, 80 | | STA 8050H | Store FFH at 8050H |
F00B | CD, 11, F0 | | CALL DELAY | Wait for 1 second |
F00E | C3, 00, F0 | | JMP LOOP | Jump to Loop |
F011 | 0E, 02 | DELAY | MVI C,02H | Initialize Count to 02H |
F014 | 11, FF, FF | L1 | LXI D,FFFFH | Load DE with FFFFH |
F016 | 1B | L2 | DCX D | Decrease DE |
F017 | 7A | | MOV A,D | Take D to A |
F018 | B3 | | ORA E | OR A and E |
F019 | C2, 16, F0 | | JNZ L2 | If Z = 0, jump to L2 |
F01C | 0D | | DCR C | Decrease C by 1 |
F01D | C2, 13, F0 | | JNZ L1 | Jump to L1, if Z = 0 |
F020 | C9 | | RET | Return from subroutine |
Output
The numbers are storing into memory location 8000H.
