How to reverse the bars of a bar plot a using ggplot2 in R?
The bars of a bar plot are generally vertical from bottom to top but we can reverse them as well. Although, this is not a normal practice but we can do it if we want to. For this purpose, we will have to reverse the values on the Y-axis, as a result the bars will be reversed. It can be achieved by using scale_y_continuous.
Example
Consider the below data frame −
Salary_Group <-c("A","B","C","D","E") Attendance <-c(78,82,90,95,85) df <-data.frame(Salary_Group,Attendance) df
Output
Salary_Group Attendance 1 A 78 2 B 82 3 C 90 4 D 95 5 E 85
Creating a simple bar plot −
Example
library(ggplot2) ggplot(df,aes(Salary_Group,Attendance))+geom_bar(stat="identity")
Output

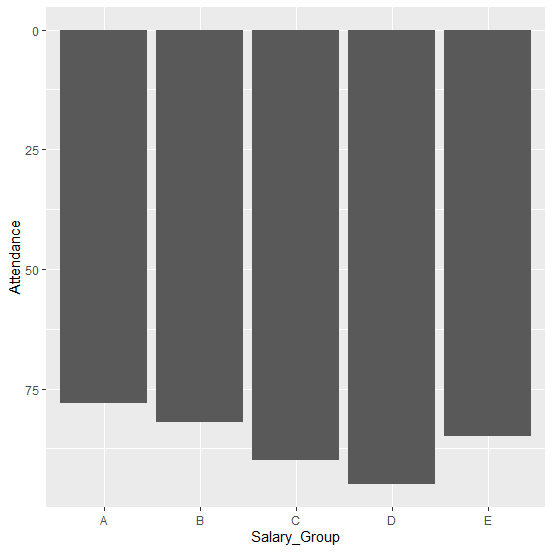

Reversing the bars of the plot −
Example
ggplot(df,aes(Salary_Group,Attendance))+geom_bar(stat="identity")+scale_y_continuous(trans="reverse")
Output
