How to plot scatter masked points and add a line demarking masked regions in Matplotlib?
To plot scattered masked points and add a line to demark the masked regions, we can take the following steps.
- Set the figure size and adjust the padding between and around the subplots.
- Create N, r0, x, y, area, c, r, area1and area2 data points using numpy.
- Plot x and y data points using scatter() method.
- To demark the maked regions, plot the curve using plot() method.

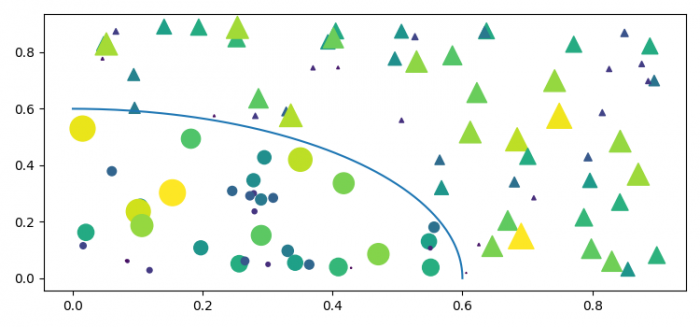

- To display the figure, use show() method.
import matplotlib.pyplot as plt import numpy as np plt.rcParams["figure.figsize"] = [7.50, 3.50] plt.rcParams["figure.autolayout"] = True N = 100 r0 = 0.6 x = 0.9 * np.random.rand(N) y = 0.9 * np.random.rand(N) area = (20 * np.random.rand(N))**2 c = np.sqrt(area) r = np.sqrt(x ** 2 + y ** 2) area1 = np.ma.masked_where(r < r0, area) area2 = np.ma.masked_where(r >= r0, area) plt.scatter(x, y, s=area1, marker='^', c=c) plt.scatter(x, y, s=area2, marker='o', c=c) theta = np.arange(0, np.pi / 2, 0.01) plt.plot(r0 * np.cos(theta), r0 * np.sin(theta)) plt.show()
