You can use JavaScript to create a client-side image map. Client-side image maps are enabled by the usemap attribute for the <img /> tag and defined by special <map> and <area> extension tags.

The image that is going to form the map is inserted into the page using the <img /> element as normal, except that it carries an extra attribute called usemap. The value of the usemap attribute is the value of the name attribute on the <map> element, which you are about to meet, preceded by a pound or a hash sign.

The <map> element actually creates the map for the image and usually follows directly after the <img /> element. It acts as a container for the <area /> elements that actually define the clickable hotspots. The <map> element carries only one attribute, the name attribute, which is the name that identifies the map. This is how the <img /> element knows which <map> element to use.

The <area> element specifies the shape and the coordinates that define the boundaries of each clickable hotspot.

The following code combines imagemaps and JavaScript to produce a message in a text box when the mouse is moved over different parts of an image.

<html>
   <head>
      <title>Using JavaScript Image Map</title>

      <script type="text/javascript">
         <!--
            function showTutorial(name) {
               document.myform.stage.value = name
            }
            //
         -->
      </script>
   </head>

   <body>
      <form name = "myform">
         <input type = "text" name = "stage" size = "20" />
      </form>

      <!-- Create  Mappings -->
      <img src = "//images/usemap.gif" alt = "HTML Map"
         border = "0" usemap = "#tutorials"/>
      <map name = "tutorials">
         <area shape = "poly"
            coords = "74,0,113,29,98,72,52,72,38,27"
            href = "/perl/index.htm" alt = "Perl Tutorial"
            target = "_self"
            onMouseOver = "showTutorial('perl')"
            onMouseOut = "showTutorial('')"/>
         <area shape = "rect"
            coords = "22,83,126,125"
            href = "/html/index.htm" alt = "HTML Tutorial" target = "_self"
            onMouseOver = "showTutorial('html')"
            onMouseOut = "showTutorial('')"/>
         <area shape = "circle"  coords = "73,168,32"
            href = "/php/index.htm" alt = "PHP Tutorial" target = "_self"
            onMouseOver = "showTutorial('php')"
            onMouseOut = "showTutorial('')"/>
      </map>
   </body>

</html>

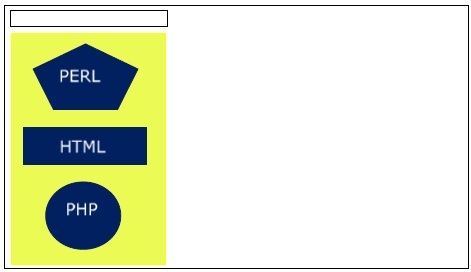

The following output is displayed on successful execution of the above code. You can feel the map concept by placing the mouse cursor on the image object.
