Create a ggplot2 graph without axes labels, axes titles and ticks in R.
Sometimes we want to graphs that looks like graphs on a white paper having no axes labels, axes titles, and ticks, therefore, we can use theme_classic function of ggplot2 package.
For Example, if we have a data frame called df that contains two columns say x and y then we can create the scatterplot between x and y using ggplot2 that looks like printed on white paper by using the below given command −
ggplot(df,aes(x,y))+geom_point()+theme_classic(base_size=0)
Example
Following snippet creates a sample data frame −
x<-rnorm(20) y<-rnorm(20) df<-data.frame(x,y) df
The following dataframe is created
x y 1 -1.32829407 -0.52533713 2 0.80283971 0.09228818 3 1.30486534 -1.32263211 4 0.82200259 -0.75838748 5 -0.78567043 -0.91903627 6 -0.64583914 0.19331685 7 0.90248805 -0.91643034 8 -0.56924149 1.36547589 9 -0.18644293 -1.15722081 10 0.90336807 -0.09976943 11 0.14253736 2.20434225 12 -1.69082324 0.24745690 13 -1.11045644 -1.17075211 14 -0.05810435 -0.87527445 15 -0.27621905 -1.36109968 16 -0.64865748 -1.15702097 17 0.81016835 -1.00659751 18 -1.15754429 0.95785839 19 -0.08498386 1.20189500 20 1.02842221 -1.18280846
To load ggplot2 package and create scatterplot between x and y on the above created data frame, add the following code to the above snippet −
x<-rnorm(20) y<-rnorm(20) df<-data.frame(x,y) library(ggplot2) ggplot(df,aes(x,y))+geom_point()

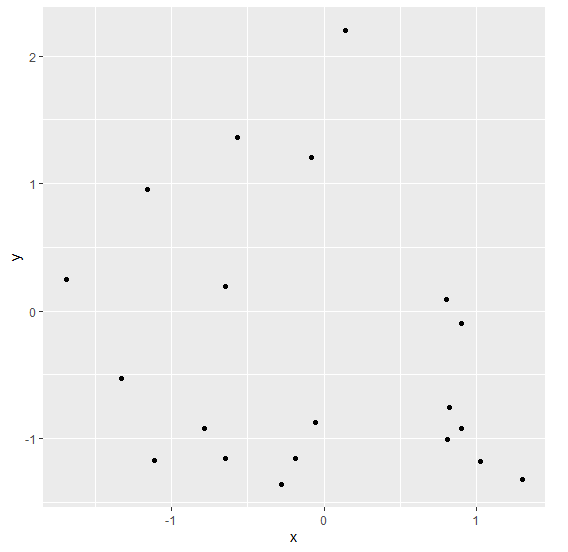

Output
If you execute all the above given snippets as a single program, it generates the following Output −
To create scatterplot between x and y just like printed on white paper on the above created data frame, add the following code to the above snippet −
x<-rnorm(20) y<-rnorm(20) df<-data.frame(x,y) library(ggplot2) ggplot(df,aes(x,y))+geom_point()+theme_classic(base_size=0)
Output
If you execute all the above given snippets as a single program, it generates the following Output −
