Bioreactors- Design and Types


Introduction

Bioreactors are essential devices in biotechnology for the production of a range of products, including vaccines, antibiotics, biofuels, enzymes, and proteins. Bioreactors are closed systems that provide a controlled environment for the growth of microorganisms or cells.

The design of bioreactors depends on the type of product, the type of microorganism, and the scale of production.

Types of Bioreactors

Bioreactors can be classified into different types based on their design, mode of operation, and application. The following are the main types of bioreactors −

Stirred-Tank Bioreactor

Stirred-tank bioreactors are the most common type of bioreactors used in industrial applications. They are cylindrical vessels equipped with a motor-driven impeller that provides agitation to the culture. The impeller ensures uniform mixing of nutrients, oxygen, and microorganisms, thereby ensuring optimal growth and production.

Bubble Column Bioreactor

Bubble column bioreactors are another type of bioreactor used in industrial applications. They are tall, cylindrical vessels that rely on the rising gas bubbles to provide agitation to the culture. The gas bubbles create a fluidized bed that ensures uniform mixing of nutrients, oxygen, and microorganisms.

Packed Bed Bioreactor

Packed bed bioreactors are used for the production of enzymes and proteins. They consist of a packed bed of solid particles, such as resin or glass beads, that provide a surface area for the attachment of cells. The cells grow and produce the desired product on the surface of the solid particles.

Membrane Bioreactor

Membrane bioreactors use membranes to separate the culture from the nutrient solution. The membranes act as a barrier that allows only the nutrients and oxygen to pass through to the culture. The membrane also prevents the growth of contaminants and allows for better control of the production process.

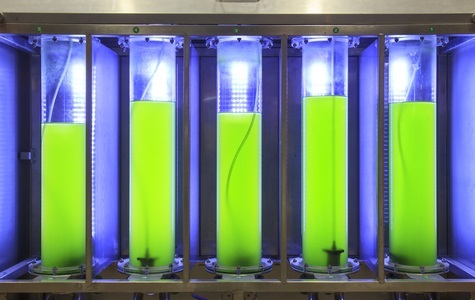

Photobioreactor

Photobioreactors use light as an energy source for the growth of microorganisms or cells. The reactor is designed to optimize the amount of light received by the culture. Photobioreactors are used in the production of biofuels and other products that require photosynthesis.

Fluidized Bed Bioreactor

Fluidized bed bioreactors use a fluidized bed of solid particles to provide agitation to the culture. The particles are fluidized by a stream of gas that creates a fluidized bed. The fluidized bed provides a large surface area for the growth of microorganisms or cells.

Air-lift Bioreactor

Air-lift bioreactors use a column of air and liquid to provide agitation to the culture. The bioreactor consists of two zones, the riser, and the downcomer. The riser is where the culture is aerated, while the downcomer is where the liquid and microorganisms flow down due to gravity.

Factors Affecting Bioreactor Performance

Several factors can affect bioreactor performance, including −

Oxygen Supply

Microorganisms require oxygen for respiration and growth. The bioreactor must provide adequate oxygen to support optimal growth and production.

Nutrient Supply

Microorganisms require nutrients, such as carbon, nitrogen, and phosphorus, for growth and production. The bioreactor must provide adequate nutrients to support optimal growth and production.

Temperature

Microorganisms have an optimal temperature range for growth and production. The bioreactor must maintain the temperature within the optimal range.

pH

Microorganisms have an optimal pH range for growth and production. The bioreactor must maintain the pH within the optimal range.

Agitation

Agitation provides mixing and aeration to the culture. The bioreactor must provide adequate agitation to prevent settling and maintain optimal oxygen transfer.

Sterility

Contamination can negatively impact bioreactor performance. The bioreactor must be maintained in a sterile environment to prevent contamination.

Product Toxicity

Some products can be toxic to microorganisms. The bioreactor must be designed to handle the toxic products and prevent their accumulation.

Design Considerations for Bioreactors

Several design considerations must be taken into account when designing bioreactors, including −

Bioreactor Type

The bioreactor type must be selected based on the specific requirements of the production process. Factors to consider include the type of microorganism or cell culture, the product being produced, and the scale of production.

Bioreactor Size

The bioreactor size must be selected based on the scale of production. Factors to consider include the required volume of culture, the oxygen and nutrient requirements of the microorganisms, and the type of agitation required.

Material of Construction

The material of construction must be selected based on the specific requirements of the production process. Factors to consider include the compatibility of the material with the culture medium, the ability to maintain sterility, and the cost of the material.

Agitation System

The agitation system must be designed to provide adequate mixing and aeration to the culture. Factors to consider include the type of agitation, the power required, and the ability to maintain sterility.

Oxygen Transfer System

The oxygen transfer system must be designed to provide adequate oxygen to the culture. Factors to consider include the type of oxygen transfer, the efficiency of oxygen transfer, and the ability to maintain sterility.

Temperature Control System

The temperature control system must be designed to maintain the temperature within the optimal range for growth and production. Factors to consider include the type of heating or cooling system, the efficiency of temperature control, and the ability to maintain sterility.

pH Control System

The pH control system must be designed to maintain the pH within the optimal range for growth and production. Factors to consider include the type of pH control system, the accuracy of pH control, and the ability to maintain sterility.

Conclusion

Bioreactors are essential tools for the production of a wide range of products, including biofuels, pharmaceuticals, and bioplastics. The design and operation of bioreactors must be carefully considered to ensure optimal performance and product quality.

Several factors must be taken into account, including the type of bioreactor, the scale of production, and the specific requirements of the production process.

The selection of the appropriate bioreactor type and the design of the system will depend on the specific needs of the production process. With the right design and operation, bioreactors can provide a sustainable and efficient way to produce a wide range of valuable products.
