8086 program to generate Fibonacci Sequence

MicroprocessorMicrocontroller8086

Here we will see how to generate Fibonacci sequence using 8086

Problem Statement

Write 8086 Assembly language program to generate Fibonacci sequence. The limit of the sequence is stored at location offset 500. The item will be stored from offset 600 onwards.

Discussion

To generate Fibonacci sequence, we are putting the 00H and 01H into memory at first. Then we are taking the limit from location offset 500. The limit is decreased by 2 at first, because 00H and 01H is already present there. Now we are taking number from previous location, then add it with the value of current location, after that storing the result into next location.

Input

Address
Data

500
E

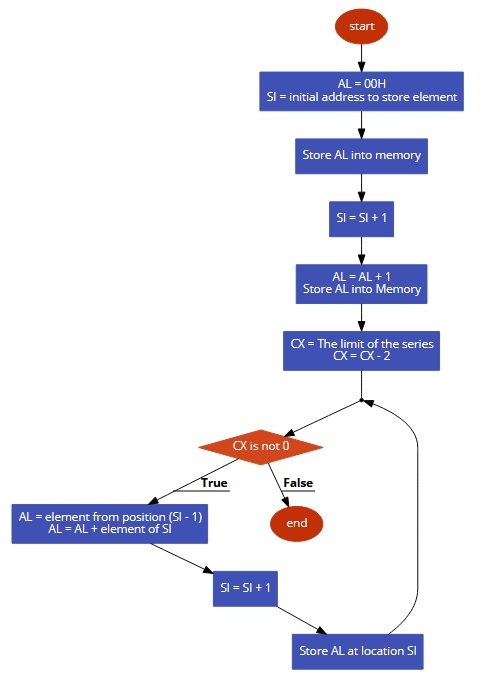

Flow Diagram

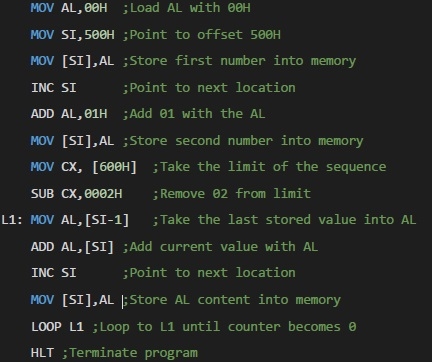

Program

Output

Address
Data

600
00
601
01
602
01
603
02
604
03
605
05
606
08
607
0D
608
15
609
22
60A
37
60B
59
60C
90
60D
E9
