8085 program to find 2's complement of the contents of Flag Register

MicrocontrollerMicroprocessor8085

In this program we will see how to find 2's complement of the content of flag register.

Problem Statement

Write 8085 Assembly language program to find 2's complement of the content of flag register.

Discussion

We cannot access the total flag register directly. To use them we have to push the PSW(Accumulator-Flag) into stack, and then pop it to another register pair, then after complementing the LS byte of that register pair, we have to push it again into the stack, and then pop it to PSW  to get it into Flag bits.

Input

Here we are not putting any input directly. If the flag bits are (0100 0001), then the program will generate the complement of it.

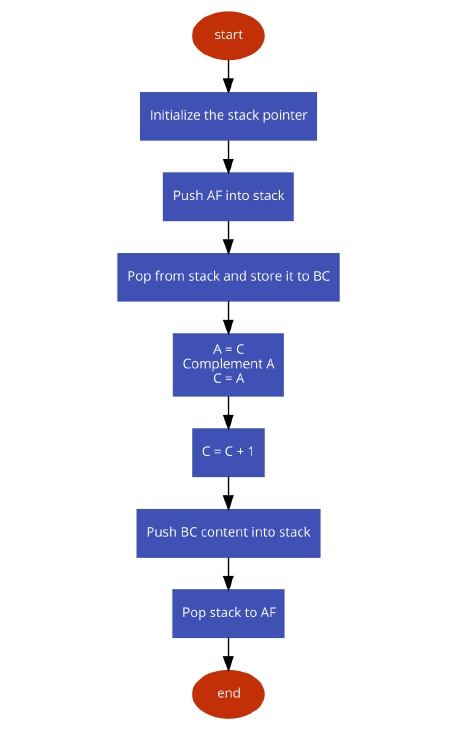

Flow Diagram

Program

Address
HEX Codes
Mnemonics
Comments
F000
31, 00, 90
LXI SP,9000H
Initialize the stack pointer
F003
F5
PUSH PSW
Push A and F content to Stack
F004
C1
POP B
Pop from stack and store to BC
F005
79
MOV  A,C
Take the number from C to A
F006
2F
CMA
Complement the accumulator
F007
4F
MOV  C,A
Store A to C
F008
0C
INR  C
Increase C by1 to get 2's complement
F009
C5
PUSH B
Push BC into stack
F00A
F1
POP PSW
Pop stack content to A and F
F00B
76
HLT
Terminate the program

Output

After executing the program, the flag content will be (1011 1111)
