What are various operations of 2D objects in JavaFX?

JavaObject Oriented ProgrammingProgramming

JavaFX supports three operations on 2D objects namely – Union, Subtraction and Intersection.

  • Union Operation − This operation takes two or more shapes as inputs and returns the area occupied by them.

  • Intersection Operation − This operation takes two or more shapes as inputs and returns the intersection area between them.

  • Subtraction Operation − This operation takes two or more shapes as an input. Then, it returns the area of the first shape excluding the area overlapped by the second one.

Example

import javafx.application.Application;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.paint.Color;
import javafx.stage.Stage;
import javafx.scene.shape.Circle;
import javafx.scene.shape.Shape;
import javafx.scene.text.Font;
import javafx.scene.text.FontPosture;
import javafx.scene.text.FontWeight;
import javafx.scene.text.Text;
public class JavaFXOperations extends Application {
   public void start(Stage stage) {
      Font font = Font.font("verdana", FontWeight.BOLD, FontPosture.REGULAR, 12);
      //Drawing circles for union operation
      Circle shape1 = new Circle(65.0f, 135.0f, 50.0f);
      Circle shape2 = new Circle(130.0f, 135.0f, 50.0f );
      //Union operation
      Shape union = Shape.union(shape1, shape2);
      union.setFill(Color.RED);
      Text label1 = new Text("Union Operation");
      label1.setFont(font);
      label1.setX(40);
      label1.setY(230);
      //Drawing circles for union operation
      Circle shape3 = new Circle(250.0f, 135.0f, 50.0f);
      Circle shape4 = new Circle(325.0f, 135.0f, 50.0f );
      //Intersect operation
      Shape intersect = Shape.intersect(shape3, shape4);
      intersect.setFill(Color.RED);
      Text label2 = new Text("Intersect Operation");
      label2.setFont(font);
      label2.setX(225);
      label2.setY(230);
      //Drawing circles for union operation
      Circle shape5 = new Circle(445.0f, 135.0f, 50.0f);
      Circle shape6 = new Circle(510.0f, 135.0f, 50.0f );
      //Union operation
      Shape subtract = Shape.subtract(shape5, shape6);
      subtract.setFill(Color.RED);
      Text label3 = new Text("Subtract Operation");
      label3.setFont(font);
      label3.setX(420);
      label3.setY(230);
      //Setting the stage
      Group root = new Group(
         shape1, shape2, shape3, shape4, shape5, shape6,
         union, intersect, subtract, label1, label2, label3
      );
      Scene scene = new Scene(root, 600, 300);
      stage.setTitle("2D Operations Example");
      stage.setScene(scene);
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

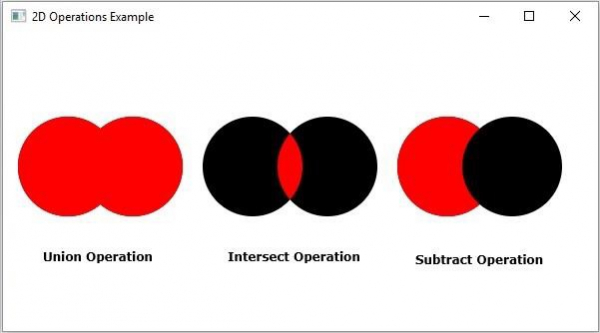

Output
