What is the purpose of a register in a CPU and what are special purpose registers?

A CPU register is a small, high-speed storage location within the processor that temporarily holds data, instructions, or addresses during program execution. Registers are the fastest storage components in the computer hierarchy and are essential for CPU operations.

CPU registers serve multiple purposes: they store operands for arithmetic operations, hold memory addresses for data access, maintain program execution state, and facilitate data transfer between different parts of the processor. Understanding registers is crucial for grasping how CPUs execute instructions efficiently.

Types of CPU Registers

CPU registers are classified into two main categories based on their functionality:

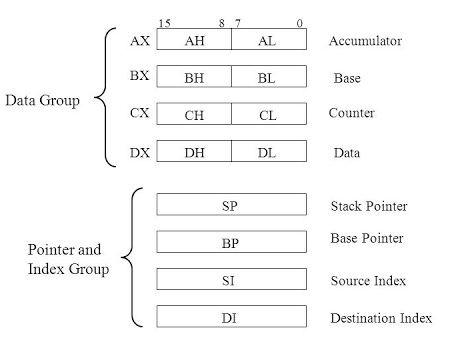

• General Purpose Registers − Store temporary data during arithmetic and logical operations. Examples include accumulator (AX), base register (BX), count register (CX), and data register (DX).

• Special Purpose Registers − Dedicated to specific functions like program control, status monitoring, and memory addressing. Examples include program counter, stack pointer, and status register.

Special Purpose Registers

Special purpose registers perform dedicated functions essential for CPU operation and program execution control.

Program Counter (PC)

The Program Counter contains the memory address of the next instruction to be executed. After each instruction execution, the PC is automatically incremented to point to the following instruction, ensuring sequential program flow unless modified by jump or branch instructions.

Instruction Register (IR)

The Instruction Register stores the current instruction being executed. During the fetch-decode-execute cycle, the instruction is loaded from memory into the IR, where it remains while being decoded and executed by the CPU.

Status Register (Flag Register)

The Status Register is a collection of individual flag bits that indicate the processor's current state and the results of recent operations. This 16-bit register contains various condition flags:

• Zero Flag (Z) − Set when an arithmetic operation results in zero

• Negative Flag (N) − Indicates the result of an operation is negative

• Overflow Flag (V/O) − Set when an operation result exceeds the register capacity

• Parity Flag (P) − Indicates whether the number of set bits is even or odd

The status register also controls interrupt handling and processor operating modes through specialized program status registers:

• Application Program Status Register (APSR) − Contains flags for application-level operations

• Interrupt Program Status Register (IPSR) − Manages interrupt-related status information

• Execution Program Status Register (EPSR) − Controls execution state and processor mode

Memory Address Register (MAR)

The Memory Address Register holds the memory address of data or instructions that the CPU needs to access. When the CPU performs read or write operations, it places the target memory location address in the MAR to facilitate memory access.

Accumulator Register (AC)

The Accumulator is a general-purpose register primarily used for storing intermediate results of arithmetic and logical operations. It serves as the default location for operation results and is frequently used in data manipulation instructions.

Comparison of Key Special Purpose Registers

Conclusion

Special purpose registers are essential components that enable efficient CPU operation by providing dedicated storage for critical system information. They work together to control program execution, manage memory access, and maintain processor state, forming the foundation of modern computer architecture.
