SWING - JPopupMenu Class

Previous
Quiz
Next

Introduction

Popup menu represents a menu which can be dynamically popped up at a specified position within a component.

Class Declaration

Following is the declaration for javax.swing.JPopupMenu class −

public class JPopupMenu
   extends JComponent
      implements Accessible, MenuElement

Class Constructors

Sr.No. Constructor & Description
1

JPopupMenu()

Constructs a JPopupMenu without an "invoker".
2

JPopupMenu(String label)

Constructs a JPopupMenu with the specified title.

Class Methods

Sr.No. Method & Description
1

JMenuItem add(Action a)

Appends a new menu item to the end of the menu which dispatches the specified Action object.
2

JMenuItem add(JMenuItem menuItem)

Appends the specified menu item to the end of this menu.
3

JMenuItem add(String s)

Creates a new menu item with the specified text and appends it to the end of this menu.
4

void addMenuKeyListener(MenuKeyListener l)

Adds a MenuKeyListener to the popup menu.
5

void addPopupMenuListener(PopupMenuListener l)

Adds a PopupMenu listener.
6

void addSeparator()

Appends a new separator at the end of the menu.
7

protected PropertyChangeListener createActionChangeListener(JMenuItem b)

Returns a properly configured PropertyChangeListener which updates the control as changes to the Action occur.
8

protected JMenuItem createActionComponent(Action a)

Factory method which creates the JMenuItem for Actions added to the JPopupMenu.
9

protected void firePopupMenuCanceled()

Notifies PopupMenuListeners that this popup menu is cancelled.
10

protected void firePopupMenuWillBecomeInvisible()

Notifies PopupMenuListeners that this popup menu will become invisible.
11

protected void firePopupMenuWillBecomeVisible()

Notifies PopupMenuListeners that this popup menu will become visible.
12

AccessibleContext getAccessibleContext()

Gets the AccessibleContext associated with this JPopupMenu.
13

Component getComponent()

Returns this JPopupMenu component.
14

Component getComponentAtIndex(int i)

Deprecated. Replaced by Container.getComponent(int)
15

int getComponentIndex(Component c)

Returns the index of the specified component.
16

static boolean getDefaultLightWeightPopupEnabled()

Gets the defaultLightWeightPopupEnabled property, which by default is true.
17

Component getInvoker()

Returns the component which is the 'invoker' of this popup menu.
18

String getLabel()

Returns the popup menu's label.
19

Insets getMargin()

Returns the margin, in pixels, between the popup menu's border and its containees.
20

MenuKeyListener[]getMenuKeyListeners()

Returns an array of all the MenuKeyListeners added to this JPopupMenu with addMenuKeyListener().
21

PopupMenuListener[] getPopupMenuListeners()

Returns an array of all the PopupMenuListeners added to this JMenuItem with addPopupMenuListener().
22

SingleSelectionModel getSelectionModel()

Returns the model object that handles single selections.
23

MenuElement[] getSubElements()

Returns an array of MenuElements containing the submenu for this menu component.
24

PopupMenuUI getUI()

Returns the look and feel (L&F) object that renders this component.
25

String getUIClassID()

Returns the name of the L&F class that renders this component.
26

void insert(Action a, int index)

Inserts a menu item for the specified Action object at a given position.
27

void insert(Component component, int index)

Inserts the specified component into the menu at a given position.
28

boolean isBorderPainted()

Checks whether the border should be painted.
29

boolean isLightWeightPopupEnabled()

Gets the lightWeightPopupEnabled property.
30

boolean isPopupTrigger(MouseEvent e)

Returns true if the MouseEvent is considered a popup trigger by the JPopupMenu's currently installed UI.
31

boolean isVisible()

Returns true if the popup menu is visible (currently being displayed).
32

void menuSelectionChanged(boolean isIncluded)

Messaged when the menubar selection changes to activate or deactivate this menu.
33

void pack()

Lays out the container so that it uses the minimum space needed to display its contents.
34

protected void paintBorder(Graphics g)

Paints the popup menu's border if the borderPainted property is true.
35

protected String paramString()

Returns a string representation of this JPopupMenu.
36

protected void processFocusEvent(FocusEvent evt)

Processes focus events occurring on this component by dispatching them to any registered FocusListener objects.
37

protected void processKeyEvent(KeyEvent evt)

Processes key stroke events such as mnemonics and accelerators.
38

void processKeyEvent(KeyEvent e, MenuElement[] path, MenuSelectionManager manager)

Processes a key event forwarded from the MenuSelectionManager and changes the menu selection, if necessary, by using MenuSelectionManager's API.
39

void processMouseEvent(MouseEvent event, MenuElement[] path, MenuSelectionManager manager)

This method is required to conform to the MenuElement interface, but it not implemented.
40

void remove(int pos)

Removes the component at the specified index from this popup menu.
41

void removeMenuKeyListener(MenuKeyListener l)

Removes a MenuKeyListener from the popup menu.
42

void removePopupMenuListener(PopupMenuListener l)

Removes a PopupMenu listener.
43

void setBorderPainted(boolean b)

Sets whether the border should be painted.
44

static void setDefaultLightWeightPopupEnabled(boolean aFlag)

Sets the default value of the lightWeightPopupEnabled property.
45

void setInvoker(Component invoker)

Sets the invoker of this popup menu the component in which the popup menu menu is to be displayed.
46

void setLabel(String label)

Sets the popup menu's label.
47

void setLightWeightPopupEnabled(boolean aFlag)

Sets the value of the lightWeightPopupEnabled property, which by default is true.
48

void setLocation(int x, int y)

Sets the location of the upper left corner of the popup menu using x, y coordinates.
49

void setPopupSize(Dimension d)

Sets the size of the Popup window using a Dimension object.
50

void setPopupSize(int width, int height)

Sets the size of the Popup window to the specified width and height.
51

void setSelected(Component sel)

Sets the currently selected component, This will result in a change in the selection model.
52

void setSelectionModel(SingleSelectionModel model)

Sets the model object to handle single selections.
53

void setUI(PopupMenuUI ui)

Sets the L&F object that renders this component.
54

void setVisible(boolean b)

Sets the visibility of the popup menu.
55

void show(Component invoker, int x, int y)

Displays the popup menu at the position x,y in the coordinate space of the component invoker.
56

void updateUI()

Resets the UI property to a value from the current look and feel.

Methods Inherited

This class inherits methods from the following classes −

  • javax.swing.JComponent
  • java.awt.Container
  • java.awt.Component
  • java.lang.Object

JPopupMenu Example

Create the following Java program using any editor of your choice in say D:/ > SWING > com > tutorialspoint > gui >

SwingMenuDemo.java

import java.awt.*;
import java.awt.event.*;

import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JMenuItem;
import javax.swing.JPanel;
import javax.swing.JPopupMenu;

public class SwingJpopupMenu{
   private JFrame mainFrame;
   private JLabel headerLabel;
   private JLabel statusLabel;
   private JPanel controlPanel;

   public SwingJpopupMenu(){
      prepareGUI();
   }
   public static void main(String[] args){
      SwingJpopupMenu  swingMenuDemo = new SwingJpopupMenu();
      swingMenuDemo.showPopupMenuDemo();
   }
   private void prepareGUI(){
      mainFrame = new JFrame("Java SWING Examples");
      mainFrame.setSize(400,400);
      mainFrame.setLayout(new GridLayout(3, 1));

      headerLabel = new JLabel("",JLabel.CENTER );
      statusLabel = new JLabel("",JLabel.CENTER);
      statusLabel.setSize(350,100);

      mainFrame.addWindowListener(new WindowAdapter() {
         public void windowClosing(WindowEvent windowEvent){
            System.exit(0);
         }
      });
      controlPanel = new JPanel();
      controlPanel.setLayout(new FlowLayout());

      mainFrame.add(headerLabel);
      mainFrame.add(controlPanel);
      mainFrame.add(statusLabel);
      mainFrame.setVisible(true);
   }
   private void showPopupMenuDemo(){
      final JPopupMenu editMenu = new JPopupMenu("Edit");

      JMenuItem cutMenuItem = new JMenuItem("Cut");
      cutMenuItem.setActionCommand("Cut");

      JMenuItem copyMenuItem = new JMenuItem("Copy");
      copyMenuItem.setActionCommand("Copy");

      JMenuItem pasteMenuItem = new JMenuItem("Paste");
      pasteMenuItem.setActionCommand("Paste");

      MenuItemListener menuItemListener = new MenuItemListener();

      cutMenuItem.addActionListener(menuItemListener);
      copyMenuItem.addActionListener(menuItemListener);
      pasteMenuItem.addActionListener(menuItemListener);

      editMenu.add(cutMenuItem);
      editMenu.add(copyMenuItem);
      editMenu.add(pasteMenuItem);

      mainFrame.addMouseListener(new MouseAdapter() {
         public void mouseClicked(MouseEvent e) {
            editMenu.show(mainFrame, e.getX(), e.getY());
         }
      });
      mainFrame.add(editMenu);
      mainFrame.setVisible(true);
   }
   class MenuItemListener implements ActionListener {
      public void actionPerformed(ActionEvent e) {
         statusLabel.setText(e.getActionCommand() + " MenuItem clicked.");
      }
   }
}

Compile the program using the command prompt. Go to D:/ > SWING and type the following command.

D:\SWING>javac com\tutorialspoint\gui\SwingMenuDemo.java

If no error occurs, it means the compilation is successful. Run the program using the following command.

D:\SWING>java com.tutorialspoint.gui.SwingMenuDemo

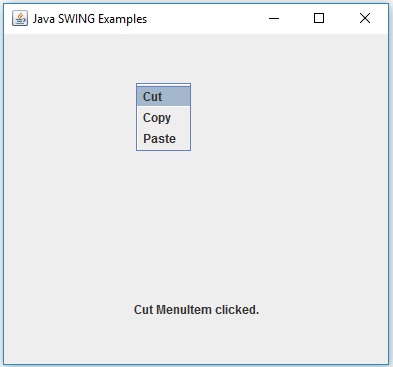

Verify the following output. (Click in the middle on the screen.)

SWING JPopupMenu
swing_menu.htm
