Instruction type LXI SP, d16 in 8085 Microprocessor
In 8085 Instruction set, LXI SP, d16 instruction is a special case of LXI rp, d16. Using this instruction, we can load 16-bit immediate data/address on the Stack Pointer (SP). It occupies 3-Bytes in the memory.
| Mnemonics, Operand | Opcode(in HEX) | Bytes |
|---|---|---|
| LXI SP | 31 | 3 |
Let us consider a sample instruction LXI SP, 4050H as an example of this category. The result of execution of this instruction has been shown in the following tracing table −
| Before | After | |
|---|---|---|
(SP) |
Any value | 4050H |
| Address | Hex Codes | Mnemonic | Comment |
|---|---|---|---|
| 2000 | 31 | LXI SP, 4050H | Initializing SP register with 16-bit data 4050H |
| 2001 | 50 | Low order Byte of the data | |
| 2002 | 40 | High order Byte of the data |

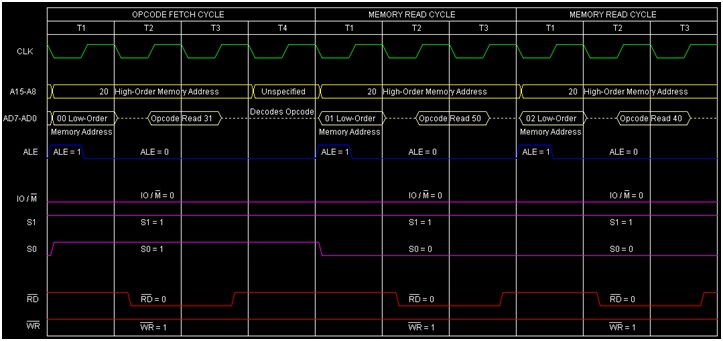

The timing diagram against this instruction LXI SP 4050H execution is as follows −
Summary − So this instruction LXI SP 4050H requires 1-Byte, 3-Machine Cycles (Opcode Fetch, Memory Read, Memory Read) and 10 T-States for execution as shown in the timing diagram.
