In 8085 Instruction set, DAD SP instruction is a special case of DAD rp instruction. In this instruction contents of HL and SP will get added and sum thus produced will get stored onto HL register pair. It occupies only 1-Byte in memory.
|Mnemonics, Operand||Opcode(in HEX)||Bytes|
Let us discuss about this instruction execution with one example. We are considering that HL and SP registers are having initial contents as 4050H and 5050H. So after execution of DAD SP instruction, the addition result will be 90A0H which will get stored on the HL register pair. Here is the tracing table below for better understanding.
|Any values||Cy=0, No change in other flag bits|
|2006||39||DAD SP||HL ← HL – SP|

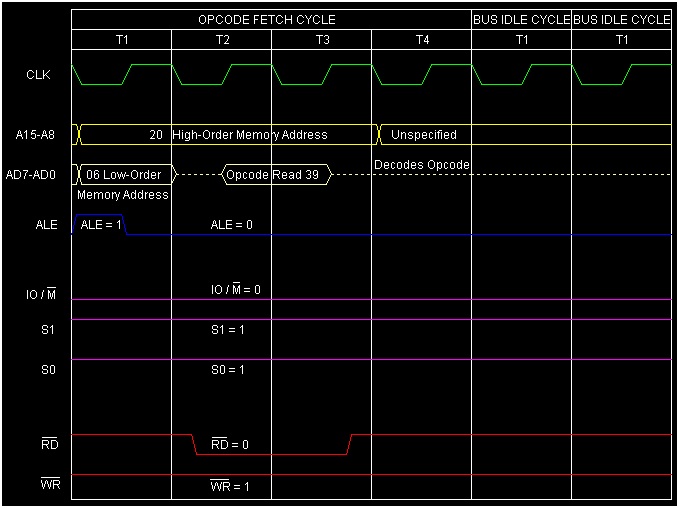

The timing diagram against this instruction DAD SP execution is as follows −
Summary − So this instruction DAD SP requires 1-Byte, 3-Machine Cycle (Opcode Fetch, Bus Idle, Bus Idle) and 10 T-States for execution as shown in the timing diagram.The opcode fetch cycle takes 4 T states and the remaining 6 T states, divided into two Machine Cycles, are for the instruction execution. During these 6 T (two Machine Cycles) states no bus operations are performed. Hence they are called bus idle Machine Cycles. During this ALE, RD etc. are not activated.
