Html5 responsiveness of the web
HTML5 responsive web design is a modern approach that enables websites to automatically adapt their layout, content, and functionality across different devices and screen sizes. Unlike traditional fixed-width designs, responsive websites provide an optimal viewing experience whether accessed on desktops, tablets, or mobile phones.
The responsiveness of a webpage refers to its ability to dynamically adjust its layout, typography, images, and content based on the device's screen dimensions and capabilities. This ensures users receive a tailored experience regardless of how they access the website.
Key Benefits of HTML5 Responsive Design
Modern users access websites from various devices with different screen sizes and resolutions. HTML5 responsive design addresses several critical needs −
Device Flexibility − One codebase serves desktops, tablets, smartphones, and emerging devices without requiring separate mobile versions.
Cost Efficiency − Eliminates the need to maintain multiple website versions for different devices.
SEO Benefits − Search engines favor responsive sites, as they provide consistent content across all devices.
User Experience − Users receive optimized content and functionality regardless of their device choice.

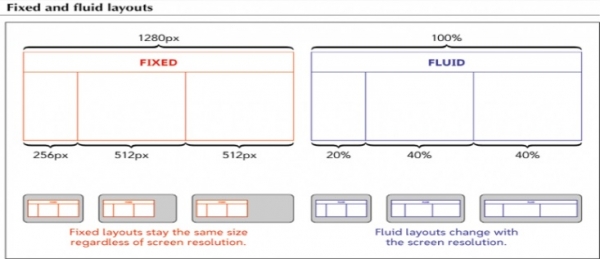

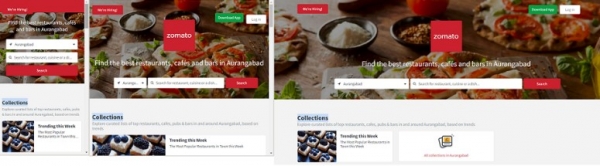

Liquid Layout Concept
HTML5 responsive design employs liquid or fluid layouts that adapt like water taking the shape of its container. Instead of fixed pixel-based dimensions, responsive layouts use flexible units such as percentages, ems, and viewport-relative units (vw, vh).
Example − Fluid Layout with Percentage Widths
<!DOCTYPE html>
<html>
<head>
<title>Fluid Layout Example</title>
<style>
.container { width: 90%; max-width: 1200px; margin: 0 auto; }
.content { width: 70%; float: left; background: #f0f8ff; padding: 20px; }
.sidebar { width: 25%; float: right; background: #fff5f0; padding: 20px; }
.clearfix::after { content: ""; display: table; clear: both; }
</style>
</head>
<body style="font-family: Arial, sans-serif; margin: 0; padding: 20px;">
<div class="container clearfix">
<div class="content">
<h2>Main Content Area</h2>
<p>This content area takes 70% of the container width and adjusts automatically as the screen size changes.</p>
</div>
<div class="sidebar">
<h3>Sidebar</h3>
<p>Sidebar takes 25% width and flows alongside the main content.</p>
</div>
</div>
</body>
</html>
The layout automatically adjusts its proportions as the browser window is resized, maintaining the 70%-25% ratio between content and sidebar areas.
CSS Media Queries
Media queries are the foundation of responsive design, allowing different CSS rules to apply based on device characteristics like screen width, height, orientation, and resolution.
Syntax
@media screen and (max-width: 768px) {
/* CSS rules for screens narrower than 768px */
}
Example − Responsive Navigation with Media Queries
<!DOCTYPE html>
<html>
<head>
<title>Responsive Navigation</title>
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<style>
.navbar { background: #333; overflow: hidden; }
.navbar a { float: left; display: block; color: white; padding: 14px 20px; text-decoration: none; }
.navbar a:hover { background: #ddd; color: black; }
@media screen and (max-width: 600px) {
.navbar a { float: none; display: block; text-align: left; }
}
</style>
</head>
<body style="font-family: Arial, sans-serif; margin: 0;">
<div class="navbar">
<a href="#">Home</a>
<a href="#">About</a>
<a href="#">Services</a>
<a href="#">Contact</a>
</div>
<div style="padding: 20px;">
<h1>Responsive Navigation Example</h1>
<p>Resize your browser window to see the navigation change from horizontal to vertical layout.</p>
</div>
</body>
</html>
On screens wider than 600px, navigation items display horizontally. On narrower screens, they stack vertically for better mobile usability.
Viewport Meta Tag
The viewport meta tag is essential for responsive design, controlling how the page is displayed on mobile devices. Without it, mobile browsers render pages at desktop width and scale them down.
Syntax
<meta name="viewport" content="width=device-width, initial-scale=1.0">
This tag tells the browser to set the page width to the device's screen width and set the initial zoom level to 100%.
Responsive Images
Images in responsive design should scale appropriately and load efficiently across different devices and connection speeds.
Example − Flexible Images
<!DOCTYPE html>
<html>
<head>
<title>Responsive Images</title>
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<style>
.responsive-img { max-width: 100%; height: auto; display: block; margin: 20px auto; }
.image-container { width: 80%; margin: 0 auto; padding: 20px; }
</style>
</head>
<body style="font-family: Arial, sans-serif;">
<div class="image-container">
<h2>Responsive Image Example</h2>
<img src="/assets/questions/media/29656/web_responsive.jpg" alt="Responsive Design" class="responsive-img">
<p>This image scales proportionally with the container width while maintaining its aspect ratio.</p>
</div>
</body>
</html>
The max-width: 100% and height: auto properties ensure images never overflow their containers and maintain proper proportions.
Progressive Enhancement vs Graceful Degradation
Modern responsive design follows the Progressive Enhancement strategy, which differs from traditional Graceful Degradation −
| Progressive Enhancement | Graceful Degradation |
|---|---|
| Starts with basic, functional content accessible to all devices | Starts with full-featured experience for modern browsers |
| Adds enhanced features for capable devices | Removes features for less capable devices |
| Content-first approach | Feature-first approach |
| Better accessibility and performance | May leave older devices with broken experience |
Common Responsive Breakpoints
Breakpoints define where your design adapts to different screen sizes. Common breakpoints include −
Mobile − 320px to 768px
Tablet − 768px to 1024px
Desktop − 1024px and above
Large Desktop − 1200px and above
Example − Multi-Breakpoint Layout
<!DOCTYPE html>
<html>
<head>
<title>Multi-Breakpoint Layout</title>
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<style>
.container { max-width: 1200px; margin: 0 auto; padding: 20px; }
.grid-item { background: #f0f8ff; margin: 10px; padding: 20px; text-align: center; }
/* Desktop: 3 columns */
.grid-item { width: 30%; float: left; }
/* Tablet: 2 columns */
@media screen and (max-width: 768px) {
.grid-item { width: 45%; }
}
/* Mobile: 1 column */
@media screen and (max-width: 480px) {
.grid-item { width: 100%; float: none; }
}
.clearfix::after { content: ""; display: table; clear: both; }
</style>
</head>
<body style="font-family: Arial, sans-serif; margin: 0;">
<div class="container clearfix">
<div class="grid-item"><h3>Item 1</h3><p>Content here</p></div>
<div class="grid-item"><h3>Item 2&
