HTML ondragend Event Attribute

HTMLWeb DevelopmentFront End TechnologyDOM

The HTML ondragend event attribute is triggered when the user finished dragging an element or text of an HTML element in an HTML document.

Syntax

Following is the syntax −

<tagname ondragend=”script”></tagname>

Let us see an example of HTML ondragend event Attribute−

Example

 Live Demo

<!DOCTYPE html>
<html>
<head>
<style>
   body {
      color: #000;
      height: 100vh;
      background-color: #FBAB7E;
      background-image: linear-gradient(62deg, #FBAB7E 0%, #F7CE68 100%);
      text-align: center;
   }
   .drop-target {
      display: inline-block;
      width: 150px;
      height: 150px;
      border: 2px solid #FFF;
      margin: 1rem;
      vertical-align: middle;
      padding: 20px;
   }
   .circle {
      background: #db133a;
      height: 40px;
      width: 40px;
      border-radius: 50%;
   }
   .show {
      color: #fff;
      font-size: 1.2rem;
   }
</style>
</head>
<body>
<h1>HTML ondragend Event Attribute Demo</h1>
<div class="drop-target" ondrop="drop(event)" ondragover="allowDrop(event)">
<p ondragstart="dragStart(event)" ondragend="dragFinished(event)" draggable="true" class="circle"></p>
</div>
<div class="drop-target" ondrop="drop(event)" ondragover="allowDrop(event)"></div>
<p>Now try to drag and drop the red circle</p>
<div class="show"></div>
<script>
   function dragStart(event) {
      event.dataTransfer.setData("Text", event.target.id);
      document.querySelector(".show").innerHTML = "Started to drag the red circle.";
   }
   function dragFinished(event) {
      document.querySelector(".show").innerHTML = "Finished dragging the red circle.";
   }
   function allowDrop(event) {
      event.preventDefault();
   }
   function drop(event) {
      event.preventDefault();
      event.target.appendChild(document.querySelector('.circle'));
   }
</script>
</body>
</html>

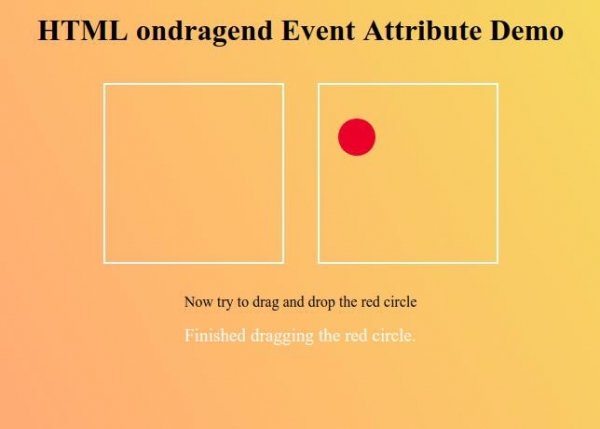

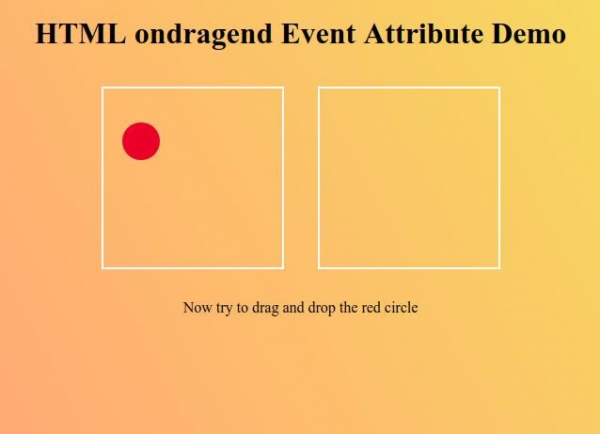

Output

Now try to drag and drop the red circle between the two boxes to observe how ondragend event attribute works:
