How to show soft Keyboard based on Android EditText is focused?

Android Mobile Development Apps/Applications

This example demonstrates how do I show soft keyboard based on Android EditText is focused.

Step 1 − Create a new project in Android Studio, go to File ⇒ New Project and fill all required details to create a new project.

Step 2 − Add the following code to res/layout/activity_main.xml.

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
   xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   tools:context=".MainActivity">
   <EditText
      android:id="@+id/editText"
      android:layout_width="match_parent"
      android:layout_height="wrap_content"
      android:layout_centerInParent="true" />
</RelativeLayout>

Step 3 − Add the following code to src/MainActivity.java

import android.content.Context;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.view.inputmethod.InputMethodManager;
import android.widget.EditText;
public class MainActivity extends AppCompatActivity {
   EditText editText;
   @Override
   protected void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState);
      setContentView(R.layout.activity_main);
      editText = findViewById(R.id.editText);
      showSoftKeyboard(editText);
   }
   public void showSoftKeyboard(View view) {
      if(view.requestFocus()){
         InputMethodManager imm =(InputMethodManager)
         getSystemService(Context.INPUT_METHOD_SERVICE);
         imm.showSoftInput(view,InputMethodManager.SHOW_IMPLICIT);
      }
   }
}

Step 4 − Add the following code to androidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest
   xmlns:android="http://schemas.android.com/apk/res/android"
   package="app.com.sample">

   <application
      android:allowBackup="true"
      android:icon="@mipmap/ic_launcher"
      android:label="@string/app_name"
      android:roundIcon="@mipmap/ic_launcher_round"
      android:supportsRtl="true"
      android:theme="@style/AppTheme">
      <activity android:name=".MainActivity">
         <intent-filter>
            <action
               android:name="android.intent.action.MAIN" />
            <category
               android:name="android.intent.category.LAUNCHER" />
         </intent-filter>
      </activity>
   </application>
</manifest>

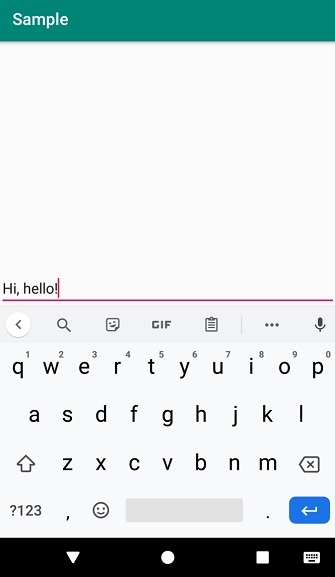

Let's try to run your application. I assume you have connected your actual Android Mobile device with your computer. To run the app from android studio, open one of your project's activity files and click Run icon from the toolbar. Select your mobile device as an option and then check your mobile device which will display your default screen −
