How to set vertical alignment for a component in Java?
For vertical alignment, create a frame and set the layout using the BoxLayout manager −
JFrame frame = new JFrame(); frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); frame.getContentPane().setLayout(new BoxLayout(frame.getContentPane(), BoxLayout.Y_AXIS));
Above, we have set the BoxLayout to set the alignment since it is a layout manager that allows multiple components to be laid out either vertically or horizontally. We have set vertical alignment here −
BoxLayout.X_AXIS
The following is an example to set vertical alignment for a component −
Example
package my;
import java.awt.Component;
import java.awt.Dimension;
import javax.swing.BorderFactory;
import javax.swing.BoxLayout;
import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JPanel;
public class SwingDemo {
public static void main(String[] args) {
JFrame frame = new JFrame();
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
frame.getContentPane().setLayout(new BoxLayout(frame.getContentPane(), BoxLayout.Y_AXIS));
JPanel panel = new JPanel();
JButton btn1 = new JButton("Clear");
JButton btn2 = new JButton("Reset");
JButton btn3 = new JButton("Submit");
panel.add(btn1);
panel.add(btn2);
panel.add(btn3);
panel.setAlignmentX(Component.LEFT_ALIGNMENT);
panel.setPreferredSize(new Dimension(100, 500));
panel.setMaximumSize(new Dimension(100, 500));
panel.setBorder(BorderFactory.createTitledBorder("demo"));
frame.getContentPane().add(panel);
frame.setSize(550, 300);
frame.setVisible(true);
}

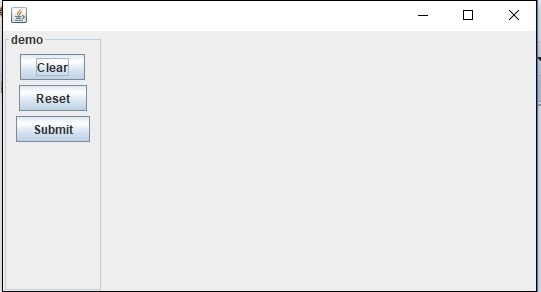

}Output
