How to set magins between cells of a JTable in Java?
To set the margins i.e. row and columns margins between cells of a table, use the setIntercellSpacing() method −
Dimension dim = new Dimension(50,2); table.setIntercellSpacing(new Dimension(dim));
Above, we have used the Dimension class −
The following is an example to set margins between cells of a JTable cell −
Example
package my;
import java.awt.Dimension;
import javax.swing.JFrame;
import javax.swing.JPanel;
import javax.swing.JRootPane;
import javax.swing.JScrollPane;
import javax.swing.JTable;
import javax.swing.table.DefaultTableModel;
public class SwingDemo {
public static void main(String[] argv) throws Exception {
JFrame frame = new JFrame("Demo");
JPanel panel = new JPanel();
String data[][] = {
{"Australia","5","1"},
{"US","10","2"},
{"Canada","9","3"},
{"India","7","4"},
{"Poland","2","5"},
{"SriLanka","5","6"}
};
String col [] = {"Team","Selected Players","Rank"};
DefaultTableModel tableModel = new DefaultTableModel(data,col);
JTable table = new JTable(tableModel);
Dimension dim = new Dimension(50,2);
table.setIntercellSpacing(new Dimension(dim));
JScrollPane scrollPane = new JScrollPane(table);
panel.add(scrollPane);
frame.add(panel);
frame.setSize(600,400);
frame.setUndecorated(true);
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
frame.getRootPane().setWindowDecorationStyle(JRootPane.COLOR_CHOOSER_DIALOG);
frame.setVisible(true);
}

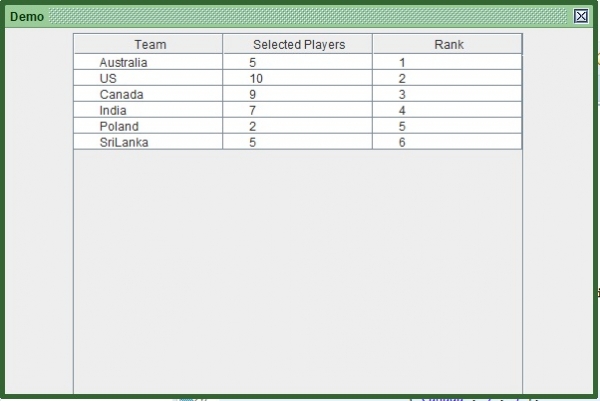

}Output
