How to plot multiple graphs in Matplotlib?
To plot multiple graphs in matplotlib, we will use the following steps −
Steps
Create x, y1 and y2 data points using numpy.
Add a subplot to the current figure at index 1.
Plot curve 1 using x and y1.
Add a subplot to the current figure at index 2.
Plot curve 2 using x and y2.
To display the figure, use show() method.
Example
import numpy as np from matplotlib import pyplot as plt plt.rcParams["figure.figsize"] = [7.50, 3.50] plt.rcParams["figure.autolayout"] = True x = np.linspace(-2, 2, 10) y1 = np.sin(x) y2 = np.cos(x) plt.subplot(211) plt.plot(y1) plt.subplot(212) plt.plot(y2) plt.show()

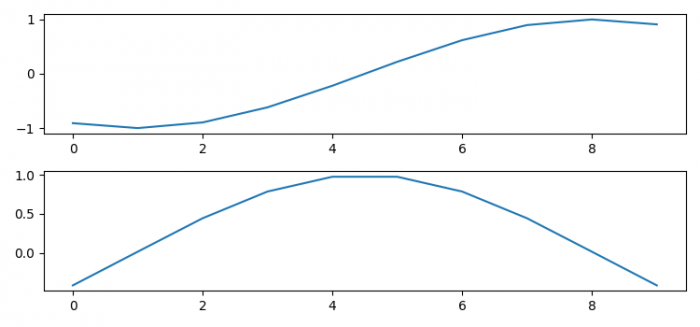

Output
