How to hide soft KeyBoard on android after clicking outside edittext?

AndroidApps/ApplicationsMobile Development

This example demonstrates how do I hide soft keyboard on android after clicking outside edittext.

Step 1 − Create a new project in Android Studio, go to File ⇒ New Project and fill all required details to create a new project.

Step 2 − Add the following code to res/layout/activity_main.xml.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:orientation="vertical"
   android:padding="16dp"
   tools:context="MainActivity">
   <TextView
      android:id="@+id/textView"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:layout_gravity="center_horizontal"
      android:hint="Enter text here"
      android:textSize="20sp" />
   <EditText
      android:id="@+id/editText"
      android:layout_width="match_parent"
      android:layout_height="wrap_content" />
   <Button
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:layout_gravity="center_horizontal"
      android:onClick="setText"
      android:text="Set Text"
      android:textStyle="bold"/>
</LinearLayout>

Step 3 − Add the following code to src/MainActivity.java

import android.content.Context;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.view.inputmethod.InputMethodManager;
import android.widget.EditText;
import android.widget.TextView;
public class MainActivity extends AppCompatActivity {
   EditText editText;
   TextView textView;
   @Override
   protected void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState);
      setContentView(R.layout.activity_main);
      editText = findViewById(R.id.editText);
      textView = findViewById(R.id.textView);
   }
   public void setText(View view){
      String newText = editText.getText().toString();
      textView.setText(newText);
      closeKeyBoard();
   }
   private void closeKeyBoard(){
      View view = this.getCurrentFocus();
      if (view != null){
         InputMethodManager imm = (InputMethodManager)
         getSystemService(Context.INPUT_METHOD_SERVICE);
         imm.hideSoftInputFromWindow(view.getWindowToken(), 0);
      }
   }
}

Step 4 - Add the following code to androidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
   package="app.com.sample">
   <application
      android:allowBackup="true"
      android:icon="@mipmap/ic_launcher"
      android:label="@string/app_name"
      android:roundIcon="@mipmap/ic_launcher_round"
      android:supportsRtl="true"
      android:theme="@style/AppTheme">
      <activity android:name=".MainActivity">
         <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
         </intent-filter>
      </activity>
   </application>
</manifest>

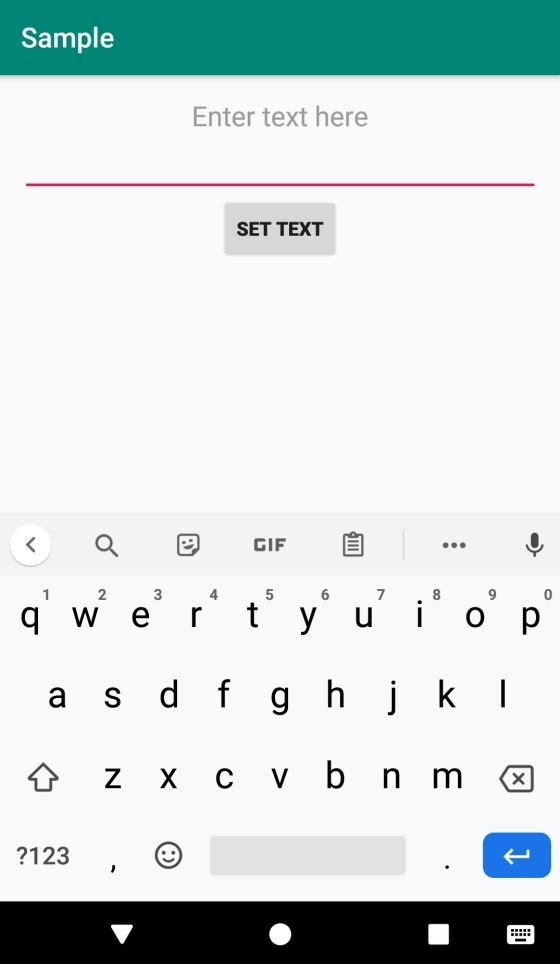

Let's try to run your application. I assume you have connected your actual Android Mobile device with your computer. To run the app from android studio, open one of your project's activity files and click Run Play Icon icon from the toolbar. Select your mobile device as an option and then check your mobile device which will display your default screen –

Click here to download the project code.
