How to display animated GIF images in Android using Kotlin?

Kotlin Apps/ApplicationsMobile Development

This example demonstrates how to display animated GIF images in Android using Kotlin.

Step 1 − Create a new project in Android Studio, go to File? New Project and fill all required details to create a new project.

Step 2 − Add the following dependency in build.gradle (module:app)

implementation 'com.github.bumptech.glide:glide:4.9.0'

Step 3 − Add the following code to res/layout/activity_main.xml.

Example

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:padding="8dp"
   tools:context=".MainActivity">
   <ImageView
      android:id="@+id/imageView"
      android:layout_width="match_parent"
      android:layout_height="match_parent" />
   <Button
      android:layout_width="match_parent"
      android:layout_height="wrap_content"
      android:layout_alignParentBottom="true"
      android:onClick="showGif"
      android:text="SHOW GIF"
      android:textAlignment="center" />
</RelativeLayout>

Step 4 − Add the following code to src/MainActivity.kt

Example

import android.os.Bundle
import android.view.View
import android.widget.ImageView
import androidx.appcompat.app.AppCompatActivity
import com.bumptech.glide.Glide
class MainActivity : AppCompatActivity() {
   override fun onCreate(savedInstanceState: Bundle?) {
      super.onCreate(savedInstanceState)
      setContentView(R.layout.activity_main)
      title = "KotlinApp"
   }
   fun showGif(view: View) {
      val imageView: ImageView = findViewById(R.id.imageView)
      Glide.with(this).load(R.drawable.giphy).into(imageView)
   }
}

Step 5 − Add the following code to androidManifest.xml

Example

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android" package="app.com.kotlipapp">
   <application
      android:allowBackup="true"
      android:icon="@mipmap/ic_launcher"
      android:label="@string/app_name"
      android:roundIcon="@mipmap/ic_launcher_round"
      android:supportsRtl="true"
      android:theme="@style/AppTheme">
      <activity android:name=".MainActivity">
         <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
         </intent-filter>
      </activity>
   </application>
</manifest>

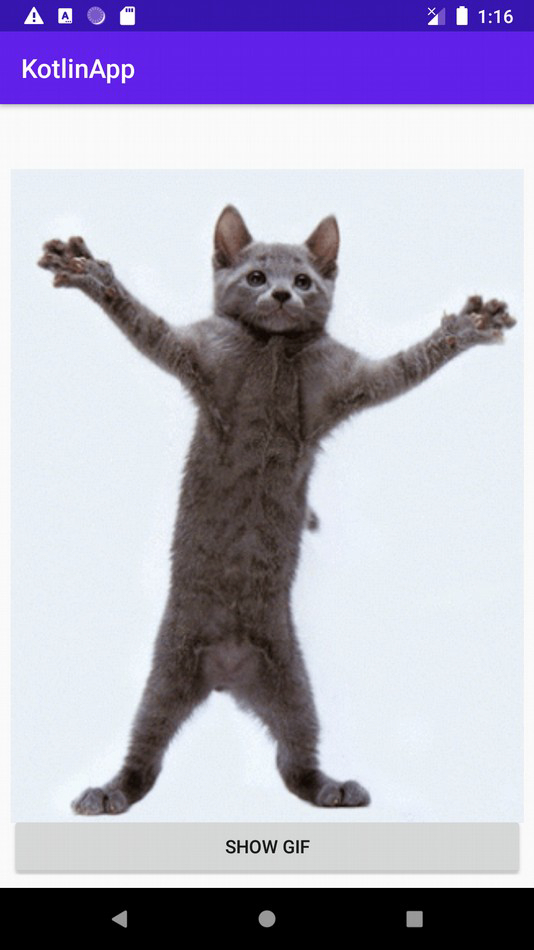

Let's try to run your application. I assume you have connected your actual Android Mobile device with your computer. To run the app from android studio, open one of your project's activity files and click the Run icon from the toolbar. Select your mobile device as an option and then check your mobile device which will display your default screen −
